- Page 1 I N S T R U C T I O N M A N U A L 2 0 P S I A I R P U M P...
-
Page 2: Table Of Contents
C O N T E N T S P A G E Parts List Inflation Process Deflation Process Troubleshooting Safety Precautions Breakdown Cover... - Page 3 Remember to activate your warranty by scanning the QR code (see ‘Breakdown cover’) or by visiting our website. We hope you enjoy your product and choose to explore the full Bluefin SUP range. To get the best of your product, we recommend that you read and refer back to the contents of this manual.
-
Page 4: Parts List

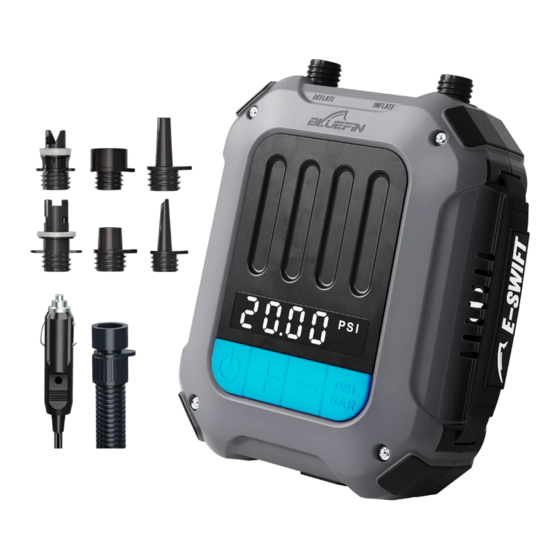

E - S W I F T P A R T S L I S T Power input Inflation inlet Webbing handle Deflation outlet Pressure value display On/Off button Pressure increase button Pressure decrease button Pressure unit toggle button Silicone power cover... - Page 5 Pump hose fixing Pump hose Hose nozzle adapters Power connector 12V Power adapter Battery power clips...
-
Page 6: Inflation Process
I N F L A T I O N P R O C E S S Connecting The Hose Connect the pump hose fixing to the inflation inlet and twist clockwise to tighten it, as Figure 1. Install the required nozzle adapter to the other end of the hose and twist clockwise to tighten it. - Page 7 I N F L A T I O N P R O C E S S Connecting The Power Lift the silicon power input cover and insert the power connector into the power input on the pump as Figure 1. Insert the 12V power adapter into a 12V DC socket as Figure 2a.
- Page 8 I N F L A T I O N P R O C E S S Operating The Pump Press the pressure unit toggle button to select the until you need. Press the pressure increase button or decrease button to set the required pressure value you need.
-
Page 9: Deflation Process
D E F L A T I O N P R O C E S S Switching To Deflate Remove the hose from the inflation inlet, Connect the pump hose fixing to the deflation outlet on the pump, and twist clockwise to tighten it, as Figure 1. Connect the nozzle end of the hose to in inflatable. -
Page 10: Troubleshooting
T R O U B L E S H O O T I N G Fault Inspection Solution The pump 1. The power is not connected 1. Make sure that the power cord will not start properly. is plugged into a 12V DC electric 2. -
Page 11: Safety
S A F E T Y The applied power source must be the 12V DC power source as Figure 1. Figure 1. Do not block the inflation inlet and deflation outlet , and ensure that the inflation inlet and deflation outlet shall remain smooth at all time. Disposal: Do not dispose of this product as unsorted waste. -
Page 12: Precautions
P R E C A U T I O N S Warning: In order to reduce the risk of injury, please keep children away from the pump and any power wires. Always supervise children when using the pump. Warning: The pump should be kept away from and not submerged in water. Warning: Before moving, maintaining, repairing or adjusting this product, please first pull out the DC plug from the socket.
