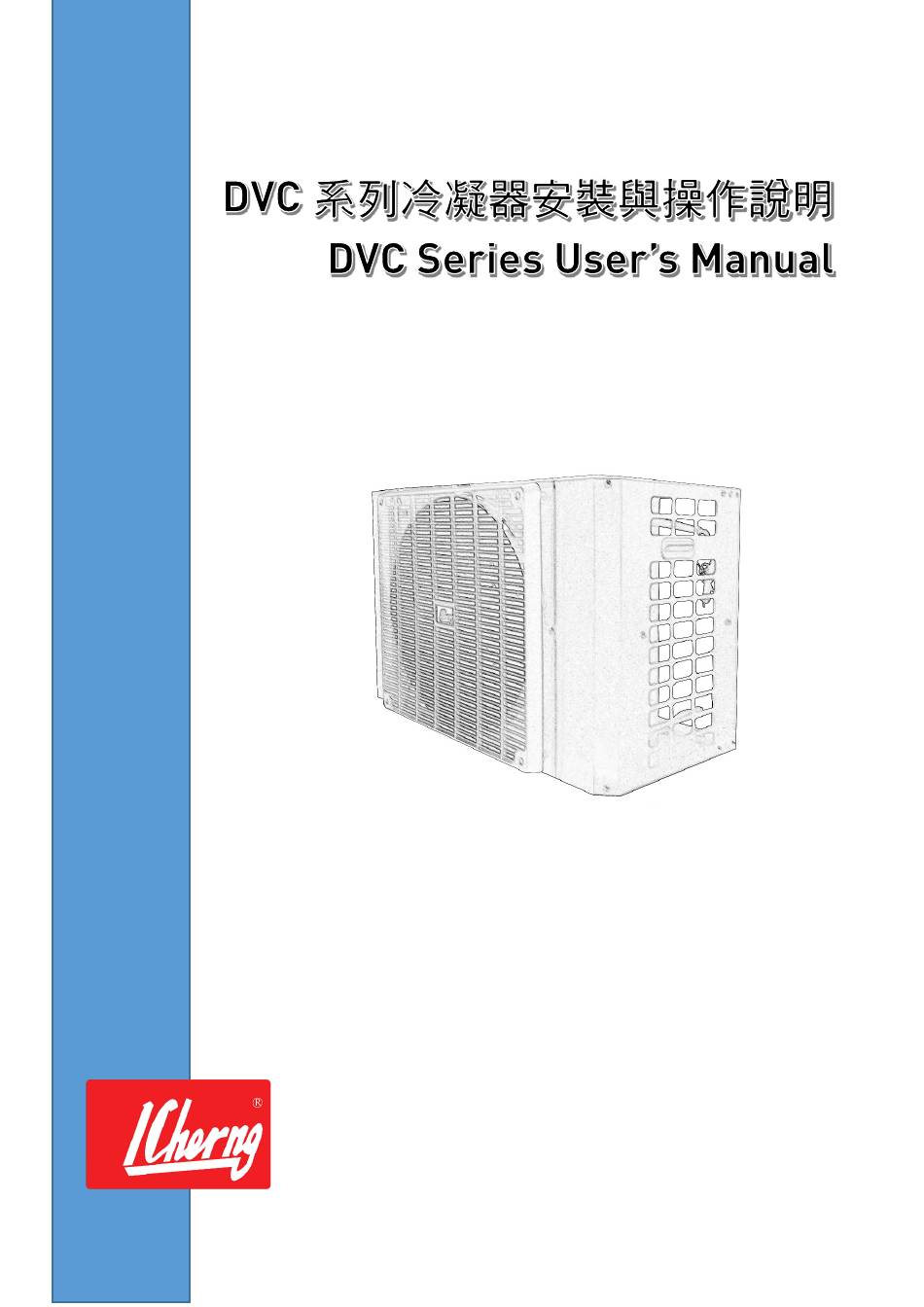

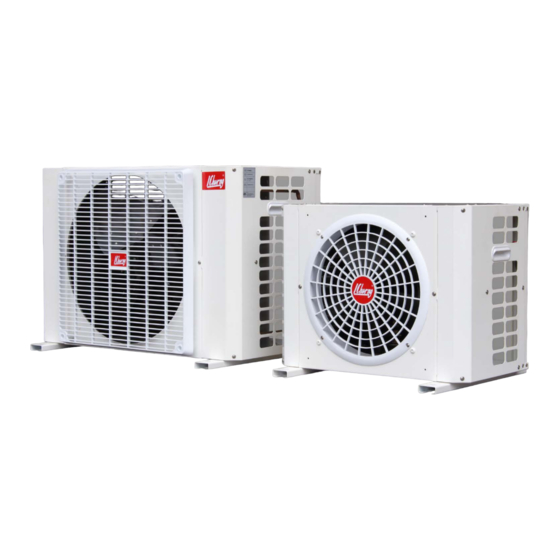

Summary of Contents for I-Cherng DVC Series
-
Page 3: Table Of Contents
Catalog 目錄 1. Check on delivery 收貨檢查 .................. 1 2. Storage 儲存......................1 3. Installation 安裝 ..................... 2 3.1 Unloading/Hoisting at site 卸貨／現場吊裝 ............2 3.2 General rules for positioning condenser 安置冷凝器的通則 ......3 3.3 Locate 定位 ..................... 4 3.4 Refrigerant Piping 冷媒配管 ................4 3.5 Wiring 電路接線... -
Page 5: Check On Delivery 收貨檢查
1. 收貨檢查 1. Check on delivery 當收到產品時，請檢查產品包裝與產品本身是否 When receive the product, please check if there is any damage on packing or product due to shipping. And 有運輸損傷。並請核對產品與送貨單內容是否符合。 the content is the same as packing list. If there is any 如果任何損傷，請於送貨單上註明損害情形。可能的 damage, please describe the defect on the delivery note. - Page 6 Be careful for lifting 本產品時，請小心不要傷到鰭片面。 this product, do not damage the fin surface. DVC 系列是利用下方腳座固定，依照使用狀況使用萬 DVC series is installed via anchoring. Base on 能角鐵、牙條或板金固定。孔位距離與產品重量請參照附錄 requirement, you can use thread rod, slotted angles bar and plate for installation. All the fixing position lay out 所有的冷凝器在裝運前內部皆有充填氣體維持正壓，...
- Page 7 DVC 系列安裝 DVC Series Installation Find the holes position of your condenser on Appendix 1. If needed to be hanged on a wall or under ceiling, please use strong supporting bars for installation. 由附錄 1 找到所購買散熱器的孔位。如果需要壁掛或天吊安裝，請使用堅固的支撐架安裝。 Fixing on a wall 壁掛式...
- Page 8 Before installation, check the position with designer 以獲得冷凝器的最佳安裝位置。 or customer to find the most suitable place for the condenser. for DVC series ＞＝160mm DVC 系 列 離 牆 至 少 需 160mm No obstacle on oulet air side.
-
Page 9: Refrigerant Piping 冷媒配管
Caution！ 注意！ Hoisting working must be 吊裝作業必須依照當地安全法規 executed under local safety 執行！ regulation! 3.3 定位 3.3 Locate 在作業前必須要檢查每一項安全措施，如需吊裝 Before working, MUST CHECK every safety 作業時必須依照當地吊裝作業法規執行。 facility and if hoisting work has to be executed, should follow local regulation abut hoisting. a. -
Page 10: Test Running And Adjustment 試車與調整
3.5 Wiring 3.5 電路接線 電路接線工作必須由專業 Wiring work must 技術人員並依照國家電工 executed by professional 相關法規執行！ technician and follow the related electric codes! a. 請使用正確的工具進行接線。 Use the correct tool for wiring. b. 請依照接線圖上所標示的額定運轉電流選擇適當 Please select the correct electrical wire based on the rating current specified on the connection diagram. 的電線規格。(接線圖位於端子盒蓋背面。) (Connection diagram is on the back of terminal box cover.) -
Page 11: Check And Adjust While Running 運轉時的檢查與調整
4.2 Check and adjust while running 4.2 運轉時的檢查與調整 為確保系統能穩定運轉，試車時必須要仔細調校， In order to keep system in steady running, must adjust well in test running, the following check list must be 以下的檢查項目在試車過程中必須要耐心觀察與調 整。 examined and adjusted with patience. * Check for fans rotating direction, make sure all the *檢查風扇運轉方向，確保所有的風扇向正確。檢查運... - Page 12 5.1 馬達更換 5.2 Change fan motor 注意！ Caution！ 更換馬達前務請先將冷凝器斷 Disconnect the power source 電！ from condenser before change fan motor! 旋下風扇護網四個 3/16”固定螺絲，取下風扇護網。 利用 M8 扳手將葉片由馬達軸取下。 a. Take off the fan guard by unscrewing 3/16” 旋下右側面板 7 個固定自攻螺絲 ， 取下右側面板 。 screws (total 4 screws).
- Page 13 將新馬達鎖回馬達固定網架上。連接電源線。 f. Fix the new motor to motor supporter. 注意：馬達洩水孔必須朝下。 Reconnect to power line. 將馬達電源線以束線帶固定，避免與扇葉干涉。 Note: The drain hole of motor must face 將右側面板重新鎖回。 down! 將扇葉鎖回馬達軸上。螺絲必須要牢靠地鎖在馬 g. Fix the cable with cable ties. Prevent 達軸的平面上。 possible interference with fan blade. Cut 注意：馬達軸末端的平面必須與扇葉軸套的平面...
-
Page 14: Trouble Shooting 故障排除
6. Trouble shooting Symptoms Possible causes Correction Condensing temperature is Condenser is dirty Clean condenser. too high Supply voltage to fan(s) is too low Check the power source. Heat source nearby or short circuit in Remove heat source or any obstacle causes air flow short circuit. - Page 15 Memo 備忘...
-
Page 16: Appendix 1 Position And Weight 孔位與重量
Appendix 1 Position and weight 孔位與重量 Net Weight Anchor position Model No. 淨重 錨定位置 型號 L1 mm B1 mm DVC100□□ 10.4 DVC 150□□ 11.8 DVC 200□□ 12.6 DVC 250□□ 15.6 DVC 300□□ 18.5 DVC 350□□ 20.0 DVC 400□□ 21.5 DVC 500□□ 22.5 DVC 600□□... -
Page 17: Appendix 2 Replacement Parts 替換零件表
Appendix 2 Replacement Parts 替換零件表 Model No. Fan Set 型號 風車組 DVC100A2 AAHVZ DVC150A2 AAHVZ DVC200A2 AAHVZ DVC250A2 AAHVZ DVC300A2 AAHXN DVC350A2 AAHXN DVC400A2 AAHXN DVC500A2 AAHXN DVC600A2 AAHXN DVC700A2 AAHXN DVC800A2 AAHXN DVC900A2 AAHXN DVC1000A2 AAHXN Fan Set Assembly 風車組 Fan Set Motor Fan Blade... - Page 18 Version 2017.Nov. Subject to change without notice! 資料變更恕不另行通知！ I-Cherng Refrigeration Industrial Co., Ltd. 一丞冷凍工業股份有限公司 Heat Exchanger Taiwan 熱交換器 台灣製造 No.12 Chu Kuang 1st St., Daliao Dist., Kaohsiung City, 83164, Taiwan 台灣高雄市大寮區莒光一街 12 號 Tel:07-7873666 Fax:07-7872999 Website: www.icherng.com.tw Email: icherng.com@msa.hinet.net...
