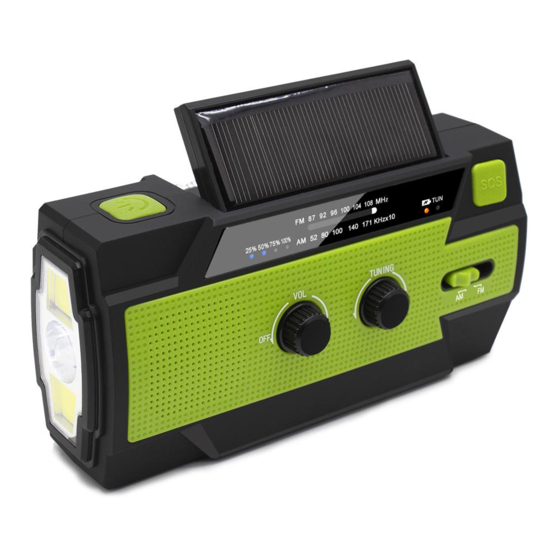

- Page 1 MD-090P Owner's Manual CONTENTS: ● RADIO OPERATION ● SOS ALARM ● FLASHLIGHT ● READING LAMP ● MOTION SENSOR ● CHARGE & DISCHARGE FUNCTION ● BATTERY PROTECTION ● 4 POWER METHODS ● POWER INDICATOR ● KIND REMINDER ● SPECIFICATION ● WARRANTY ●...
- Page 2 MD-090P Owner's Manual RADIO OPERATION ● Turn the “Volume” Dial clockwise to power on the radio and adjust volume. ● Select FM/AM/WB with radio band switch. Extend the antenna to get better signal reception, especially listening to the FM and NOAA broadcasts.
- Page 3 MD-090P Owner's Manual SOS ALARM ● Hold the SOS button for once, the device will activate a loud siren and a flashing far beam. ● Press the SOS button again to turn it off. FLASHLIGHT ● The first press on the flashlight button, the far beam lights up.
- Page 4 MD-090P Owner's Manual MOTION SENSOR ● Turn the sensor switch to the AUTO position,open the solar panel, when there’s movement within 3 meters, the reading lamp lights up. When there is no movement in this range, after 30 seconds, the reading lamp will turn off. Close the solar panel, the reading lamp will extinguish.
- Page 5 MD-090P Owner's Manual BATTERY PROTECTION ● This emergency radio is designed with a feature of shutdown in low voltage. To protect the chip, the power supply will be cut off to protect the battery from damage when there is an overload or a short circuit in this unit.
- Page 6 MD-090P Owner's Manual Crank Handle SOLAR POWER ● Expose the solar panel in clear sunlight to let it cha -rges as efficiently as possible. ● The red power indicator lights will light up when the radio received enough sunlight to start charging ●...
- Page 7 MD-090P Owner's Manual POWER INDICATOR ● This unit has 4 blue power indicator lights to show the power capacity.The power indicator will light up for 30 seconds when turn on the radio/ flashlight/ reading lamp and the indicator light stays on when charging and discharging.
- Page 8 MD-090P Owner's Manual SPECIFICATION FM 87~108MHz Frequency range AM 520~1710KHz WB 162.400~162.550MHz 160*63*81mm/ Dimensions 6.23*2.48*3.19in 380g Weight 10w (Max) Power consumption 2.7~4.2V Working voltage 4000mAh/3.7V Li-ion Power source 5V, 1A USB output 5-6 h Charging time(USB) IPX3 Waterproof level 135LM(Max) LED flashlight LED lighting：...
Need help?
Do you have a question about the MD-090P and is the answer not in the manual?
Questions and answers

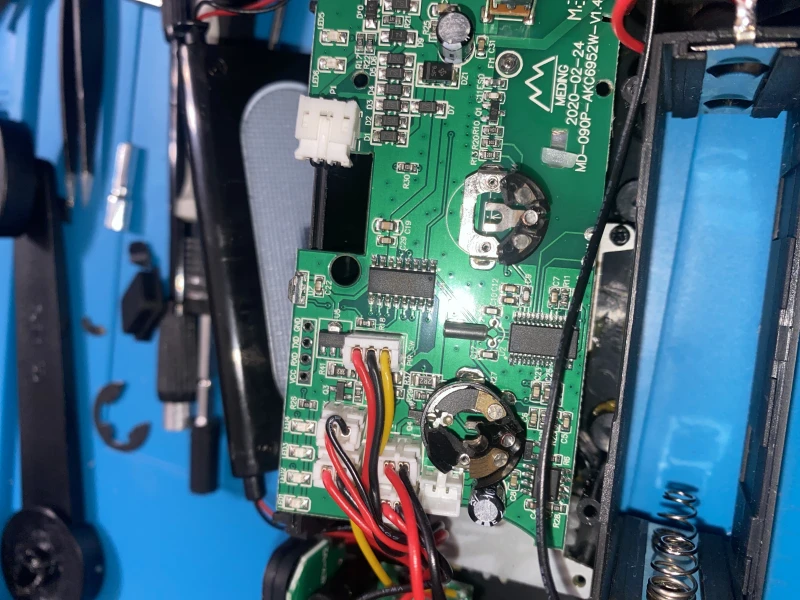

I need to know the type of potentiometer for R24 (tuner knob) and R27 (volume knob) to repair my device
