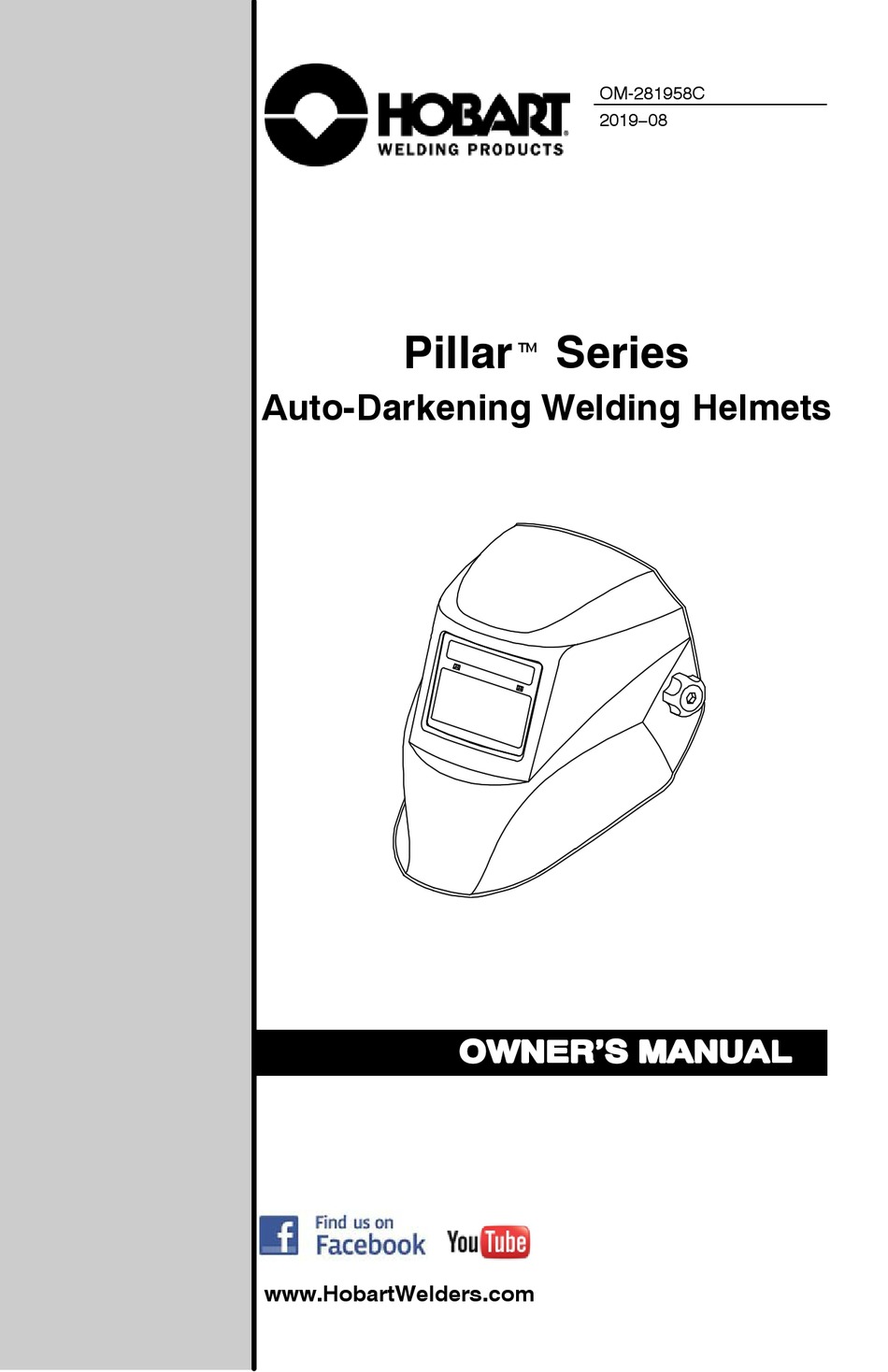

- Page 1 OM-281958C 2019−08 Pillar Series Auto-Darkening Welding Helmets www.HobartWelders.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 − WELDING HELMET SAFETY PRECAUTIONS −READ BEFORE USING ..1-1. Symbol Usage ............. 1-2. -
Page 3: Section 1 − Welding Helmet Safety Precautions −Read Before Using
SECTION 1 − WELDING HELMET SAFETY PRECAUTIONS − READ BEFORE USING helmet 2018-08 Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions. 1-1. Symbol Usage DANGER! − Indicates a hazardous Indicates special instructions. situation which, if not avoided, will result in death or serious injury. -
Page 4: Proposition 65 Warnings
WELDING HELMETS do not provide unlimited eye, ear, and face protection. Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld. D Use helmet for welding/cutting applications only. Do not use helmet for laser welding/cutting. D Use impact resistant safety spectacles or goggles and ear protection at all times when using this welding helmet. -
Page 5: Lens Shade Selection Table
1-4. Lens Shade Selection Table Process Electrode Size Arc Current Minimum Suggested in. (mm) Shade No. Protective Amperes Shade No. (Comfort)* Shielded Metal Arc Less than 3/32 (2.4) Less than 60 −− Welding (SMAW) 3/32−5/32 (2.4−4.0) 60−160 5/32−1/4 (4.0−6.4) 160−250 More than 1/4 (6.4) 250−550 Gas Metal... -
Page 6: Section 2 − Specifications
SECTION 2 − SPECIFICATIONS Viewing Field 3.78 x 1.65 in. (96 x 42 mm) Reaction Time 0.0001 sec (1/10,000 sec) Available Shades Darkened State: No. 10/Light State: No. 3 Provides Continuous UV And IR Protection Power Auto-On/Auto-Off Power Supply Solar Cell And Non-Replaceable Battery Sensors Two –... -
Page 7: Section 3 − Operating Instructions
SECTION 3 − OPERATING INSTRUCTIONS 3-1. Helmet Controls Remove protective films from lens before welding. Lens Viewing Area Arc Sensors Solar Cell The helmet has no buttons or con- trols. The lens turns on (darkens) au- tomatically when welding begins and turns off when welding stops. -
Page 8: Section 4 − Adjusting Headgear
SECTION 4 − ADJUSTING HEADGEAR Headgear Tightness Distance Adjustment There are four head- Adjustment gear adjustments: Headgear Screw headgear top, tight- To adjust, turn the adjust- ness, angle adjust- ing knob located on the ment, and distance ad- back of the headgear left or Adjusts the distance be- justment. -
Page 9: Section 5 − Replacing The Lens Covers
SECTION 5 − REPLACING THE LENS COVERS 5-1. Replacing Outside Lens Cover Never use the auto-darkening lens without the inside and outside lens covers properly installed. Welding spatter will damage the auto-darkening lens and void the warranty. Locking Tab Lens Assembly Outside Lens Cover Remove lens assembly by sliding the locking tab to the left. -
Page 10: Replacing Inside Lens Cover
5-2. Replacing Inside Lens Cover Never use the auto-darkening lens without the inside and out- side lens covers properly installed. Welding spatter will damage the auto-darkening lens and void the warranty. Remove the lens assembly (see Sec- tion 5-1). Turn lens over and push down on locking tabs to disassemble. -
Page 11: Section 6 − Installing Optional Magnifying Lens
SECTION 6 − INSTALLING OPTIONAL MAGNIFYING LENS Optional Magnifying Lens Slide magnifying lens into the hel- met retaining brackets as shown. Align the magnifying lens with the auto-darkening lens assembly. To prevent lens fogging, install flat side of magnifying lens to- ward auto-darkening lens. -
Page 12: Section 8 − Troubleshooting
SECTION 8 − TROUBLESHOOTING Trouble Remedy Auto lens not switching; Stop welding immediately. Clean lens cover and sensors of any lens stays light and does obstructions. Make sure the sensors are facing the arc; angles of not darken when welding. 45_ or more may not allow the arc light to reach the sensors. -
Page 13: Section 9 − Parts List
SECTION 9 − PARTS LIST Figure 9-1. Pillar Series Auto-Darkening Welding Helmet Item Part Description Quantity Figure 9-1. Pillar Series Auto-Darkening Welding Helmet ..770843 . . . Headgear .......... -
Page 14: Section 10 − Limited Warranty
SECTION 10 − LIMITED WARRANTY LIMITED WARRANTY – Subject to the terms and conditions below, Miller Electric Mfg. LLC, dba Hobart Welding Products, Appleton, WI, warrants to its original retail purchaser that the new Hobart equipment sold after the effective date of this limited warranty is free of defects in material and workmanship at the time it is purchased at the retailer. - Page 15 Notes Work like a Pro! Pros weld and cut safely. Read the safety rules at the beginning of this manual.
- Page 16 Miller Electric Mfg. LLC An Illinois Tool Works Company 1635 West Spencer Street Appleton, WI 54914 USA Phone: 800-332-3281 Visit our website at www.HobartWelders.com © ORIGINAL INSTRUCTIONS − PRINTED IN USA 2019 Miller Electric Mfg. LLC 2019-01...
