DRAPER TOOLS Bunker 08222 Assembly Instructions Manual

To make assembly easier we recommend having
two persons aid one another in assembly.

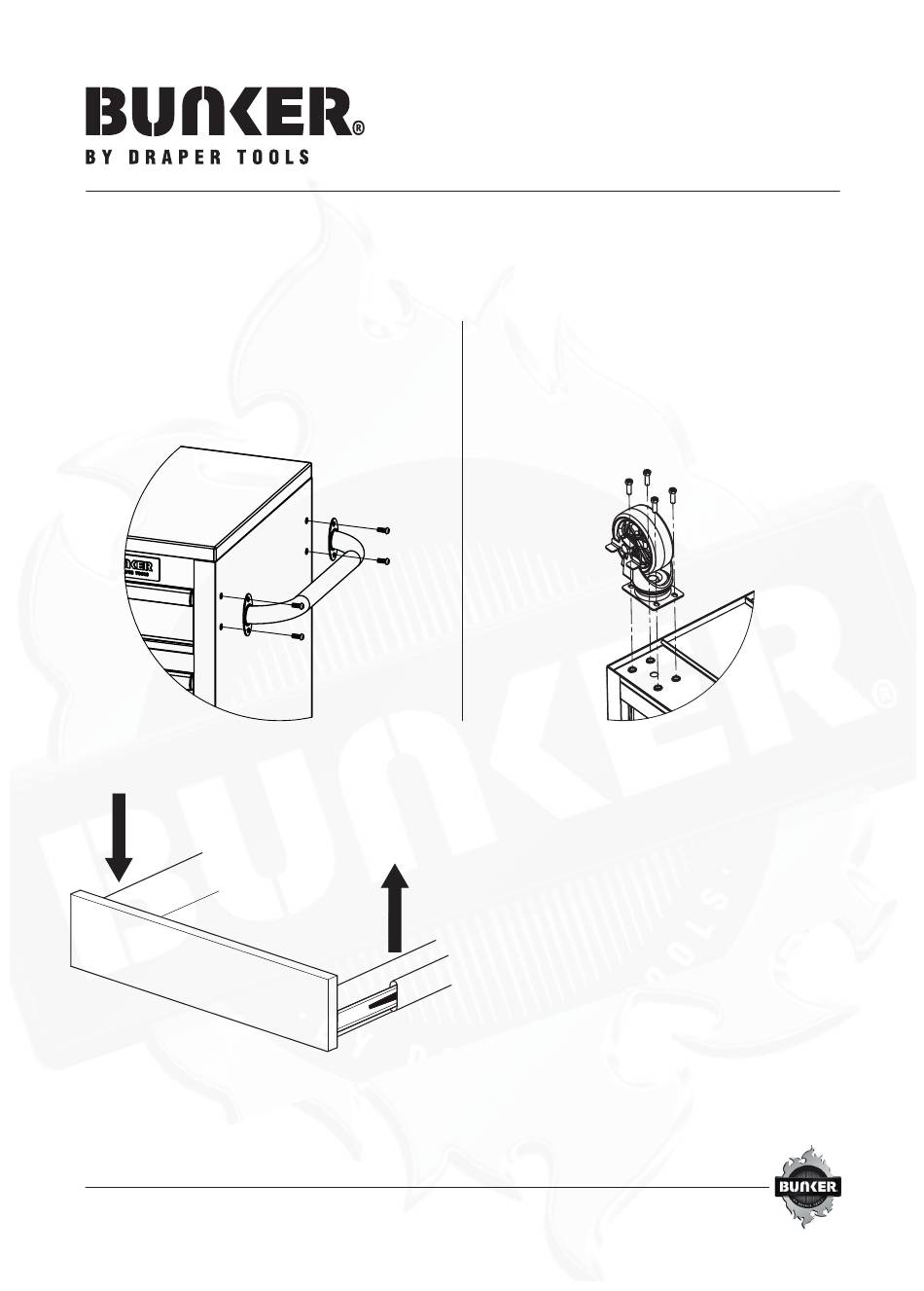

STEP 1: ATTACH CABINET HANDLE
• Position the cabinet handle over the holes on the cabinet.
• Attach with (4) M6 x 16mm bolts and tighten with
supplied hex key.
(L)
drapertools.com
Draper Tools Limited, Hursley Road, Chandler's Ford, Eastleigh, Hampshire. SO53 1YF UK
STEP 2: ATTACH CASTOR
• Be sure the drawers are locked and place the cabinet
upside down.
• Secure castors to the unit using the (4) M8 x 25mm bolts
and tighten with supplied hex key.
• Repeat this process on the opposite side of the cabinet.
REMOVING AND REPLACING
THE DRAWERS
• Pull the drawer completely out.
• Press down the left tab and lift up the right tab.
• Pull drawer off slides.
• To reinstall the drawer, realign with the internal drawer
slide and push in until locked in place.
CASTOR MAINTENANCE
(R)
• Grease the castors annually using high-quality bearing grease.
CARE AND CLEANING
• Periodically the surfaces should be cleaned with a mild detergent
and water. Grease and oil can be removed with most standard
cleaning fluids. For safety, use a non-flammable cleaning fluid.
• Auto wax will preserves the storage unit's luster finish and
protects against scratches.
41" Workbench Roller
Tool Cabinet, 7 Drawer
08222, 08216, 08221
Stock No.
