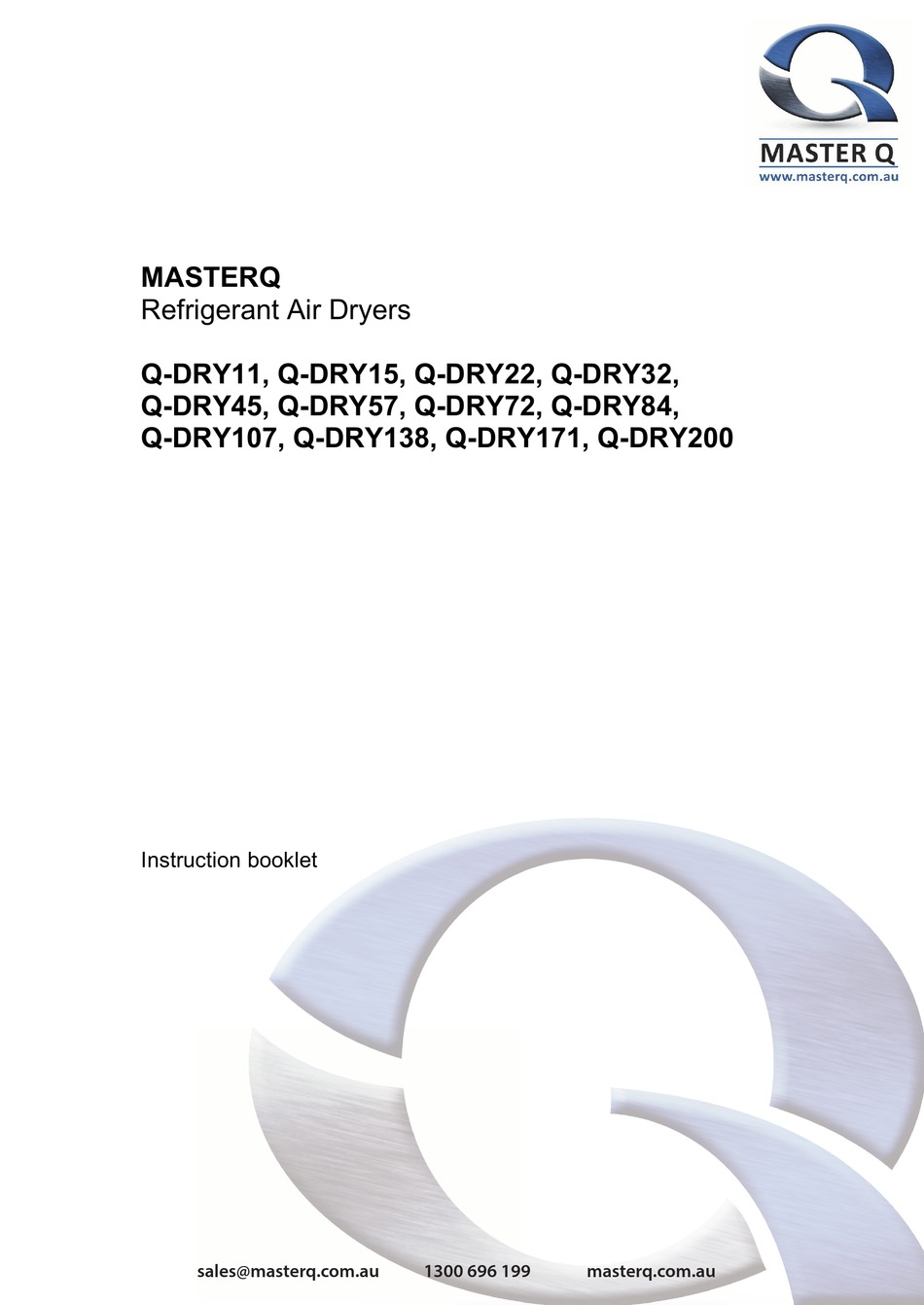

- Page 1 MASTERQ Refrigerant Air Dryers Q-DRY11, Q-DRY15, Q-DRY22, Q-DRY32, Q-DRY45, Q-DRY57, Q-DRY72, Q-DRY84, Q-DRY107, Q-DRY138, Q-DRY171, Q-DRY200 Instruction booklet!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! sales@masterq.com.au 1300 696 199 masterq.com.au...
- Page 2 Refrigerant compressed air dryers Q-DRY11, Q-DRY15, Q-DRY22, Q-DRY32, Q-DRY45, Q-DRY57, Q-DRY72, Q-DRY84, Q-DRY107, Q-DRY138, Q-DRY171, Q-DRY200 Instruction booklet Original instructions Copyright notice Any unauthorised use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers and drawings.
-
Page 3: Table Of Contents
CONTENTS GENERAL SAFETY STANDARD ................1 1.1 DESCRIPTION OF DANGER SIGNALS ..............1 GENERAL DESCRIPTION ..................2 2.1 GENERAL VIEW ......................2 2.2 AIR SYSTEM ......................4 2.3 REFRIGERATION SYSTEM ..................5 2.4 AUTOMATIC REGULATION SYSTEM ..............6 2.5 CONDENSATE DRAIN SYSTEM ................7 INSTALLATION ...................... - Page 4 ADDRESSES OF ASSISTANCE CENTERS In the event of breakdown or malfunction of the machine, switch it off and do not tamper with it. If repairs are needed, contact a technical assistance center approved by the manufacturer and insist on the use of original spare parts. Failure to comply with the above may endanger the safety of the machine.
-
Page 5: General Safety Standard
1 GENERAL SAFETY STANDARD BEFORE REMOVING THE PROTECTION DEVICES FOR ANY MAINTENANCE WORK ON THE MACHINE, DISCONNECT THE ELECTRICAL POWER SUPPLY. MAKE SURE THAT THERE IS NO INTERNAL RESIDUAL PRESSURE. ALL WORK ON THIS MACHINE MUST BE CARRIED OUT BY AUTHORISED & PROFESSIONALLY SKILLED PERSONNEL. -
Page 6: General Description
2 GENERAL DESCRIPTION 2.1 GENERAL VIEW Front View Rear View Inside View Inside View... - Page 7 Reference Name Air outlet Air Inlet Data plate Electrical cable outlet Condensate drain outlet Dew point indicator Dryer on/off switch High pressure switch Heat exchanger Electrical timer drain Condenser Capacity Motor fan Refrigerant filter Capillary Hot gas by-pass valve Refrigerant compressor Introduction The dryer is a chilling machine with direct expansion and dry evaporator.
-
Page 8: Air System
2.2 AIR SYSTEM Reference Name Evaporator Condensate separator Condensate drain Heat exchanger Dew point indicator Description Compressed air enters heat exchanger (10) and is cooled by the outgoing, cold, dried air. Water in the incoming air starts to condense. The air then flows through heat exchanger/evaporator (10 &... -
Page 9: Refrigeration System
2.3 REFRIGERATION SYSTEM Reference Name Refrigerant compressor Condenser Evaporator Capillary tube filter Liquid separator High pressure switch Hot gas by-pass valve Description Compressor (1) delivers hot, high-pressure refrigerant gas which flows through condenser (2) where most of the refrigerant condenses. The liquid flows through liquid refrigerant dryer/filter (8) to capillary tube (7). -
Page 10: Automatic Regulation System
2.4 AUTOMATIC REGULATION SYSTEM Reference Name Refrigerant compressor Motor fan Liquid separator High pressure switch Hot gas by-pass valve Description The condenser pressure must be kept as constant as possible to obtain stable operation. Fan control switch therefore stops and starts the cooling fan (3). If, under partial or no load, the evaporator pressure drops below a certain level, the hot gas by-pass valve (9) opens and hot, high-pressure gas is fed to the evaporator circuit to prevent the evaporator pressure from dropping any further. -
Page 11: Condensate Drain System
2.5 CONDENSATE DRAIN SYSTEM Description The dryers are equipped with an electronic water drain (EWD). The condensate from the condensate trap accumulates in a collector. On preset time intervals, the condensate is discharged through the drain outlet. The opening time is limited to 1 second, which limits compressed air waste to a minimum. - Page 12 Setting： 1. Switch on the power. Note: the voltage must comply with the voltage mentioned on the coil. 2. It will start with its pre-set time setting of 0.5 min OFF and 1 sec ON time. 3. You can change the pre-set values to anything ranging from 0.5-10 sec and 0.5-5 Min. 4.
-
Page 13: Installation
3 INSTALLATION 3.1 DRYER ROOM EXAMPLE OF COMPRESSOR/DRYER ROOM Reference Description The refrigerant dryer should be installed on a level floor suitable for its weight. • Install the dryer where the ambient air is as clean as possible and where the •... -
Page 14: Examples Of Installation
2.1 EXAMPLES OF INSTALLATION This can be used when the compressor runs constantly and the cooling capacity of the dryer is equal to the air delivery of the compressor. Under this condition the load of the dryer is constant. This can be used when the air demand is variable. The air demand is for short periods higher than the compressor can deliver, the air receiver must be large enough to meet the instant air demand. - Page 15 Reference Description Compressor Air receiver Install pre-filters and post-filters Provide an air inlet valve and outlet valve. If a bypass pipe and valve are installed, the dryer and filters can be serviced while by-passing the dryer Dryer Main air line...
-
Page 16: Operating Instructions
4 OPERATING INSTRUCTIONS 4.1 WARNING Safety precautions The operator must apply all relevant safety precautions, including those mentioned in this manual. Altitude operation Consult your supplier if operating above 3,000m (9,843 ft). 4.2 CONTROL PANEL Description Reference Description Digital controller, used for: 1. -
Page 17: Pdp Controller
4.3 PDP CONTROLLER Alarm Dryer under tension Fan on PDP value °C or °F ICON MODE FUNCTION Alarm Fan probe failed High/Low PDP Dryer stops working Refrigerant Flash Service required compressor Dryer working Fan stops working Flash Fan working Normal operations Flashing Alarm Notes Possible... - Page 18 Warning -Replace probe icon NOT control flashing, probe label P1 failed flashing Warning -Replace probe icon NOT Temp flashing, probe label P2 failed flashing Warning High -Refrigerant leak icon NOT -Flow rate or flashing, temperature label H2 exceeding flashing limitations Warning Low PDP -Expansion valve...
-
Page 19: Starting
4.4 STARTING Attention To ensure optimum operational efficiency, do not use dryer on/off switch repeatedly within a short time period. Wait at least 5 minutes to start the dryer again after stopping to allow pressure equalization. To keep the compressed air net free of condensate, start the dryer before starting the compressor and stop the compressor before stopping the dryer. -
Page 20: Stopping
4.6 STOPPING Attention To ensure optimum operational efficiency, do not use dryer on/off switch repeatedly within a short time period. Wait at least 5 minutes to start the dryer again after stopping to allow pressure equalization. To keep the compressed air net free of condensate, start the dryer before starting the compressor and stop the compressor before stopping the dryer. -
Page 21: Dimensions And Technical Data
Reference Name Air outlet Air Inlet Data plate Electrical cable outlet Condensate drain outlet 5.1 CONNECTIONS TYPE OUTLET (1) INTLET (2) TYPE OUTLET (1) INLET (2) Q-DRY11 G3/4” G3/4” Q-DRY72 G2” G2” Q-DRY15 G3/4” G3/4” Q-DRY84 G2” G2” Q-DRY22 G3/4”... -
Page 22: Dimensions
5.2 DIMENSIONS TYPE Unit Length(L) Width(W) Height(H) Q-DRY11 Q-DRY15 Q-DRY22 Q-DRY32 Q-DRY45 Q-DRY57 Q-DRY72 Q-DRY84 1000 Q-DRY107 1025 1120 Q-DRY138 1025 1120 Q-DRY171 1025 1120 Q-DRY200 1025 1120 5.3 TECHNICAL DATA TYPE Power Freon gr. Nominal Power W pressure bar... -
Page 23: Reference Conditions
5.4 REFERENCE CONDITIONS Unit Compressed air inlet pressure Bar€ Compressed air inlet pressure psig 101.53 Compressed air inlet temperature ˚ C Compressed air inlet temperature ˚ F Ambient temperature ˚ C Ambient temperature ˚ F Pressure dew point ˚ C Pressure dew point ˚... -
Page 24: Transport And Handling
6 TRANSPORT AND HANDLING TRANSPORT • The machine must be transported as shown in the following figures TYPE NET WEIGHT Kg. TYPE NET WEIGHT Kg. Q-DRY11 Q-DRY72 Q-DRY15 Q-DRY84 Q-DRY22 Q-DRY107 Q-DRY32 Q-DRY138 Q-DRY45 Q-DRY171 Q-DRY57 Q-DRY200 UNPACKING • After removing the packing, ensure that the machine is not damaged and that there are no... -
Page 25: Routine Maintenance
7 ROUTINE MAINTENANCE BEFORE CARRYING OUT ANY MAINTENANCE WORKS IT IS OBLIGATORY TO STOP THE MACHINE AND DISCONNECT IT FROM THE POWER MAINS AND FROM THE COMPRESSOR AIR DISTRIBUTION NETWORK. These maintenance intervals are recommended for work environments that are not dusty and are well ventilated. -
Page 26: Troubleshooting
8 TROUBLESHOOTING Attention Use only authorised parts. Any damage or malfunction caused by the use of unauthorised parts is not covered by Warranty or Product Liability. Apply all relevant Safety precautions. Before carrying out any maintenance or repair work on the dryer: Close air inlet and outlet valve of the dryer. - Page 27 Condition Fault Remedy Condenser pressure too Fan or fan motor out of order Check fan/fan motor high or too low Check and correct; if Ambient temperature too necessary, draw cooling air via high a duct from a cooler room or relocate the dryer.
