Summary of Contents for Apollo A07

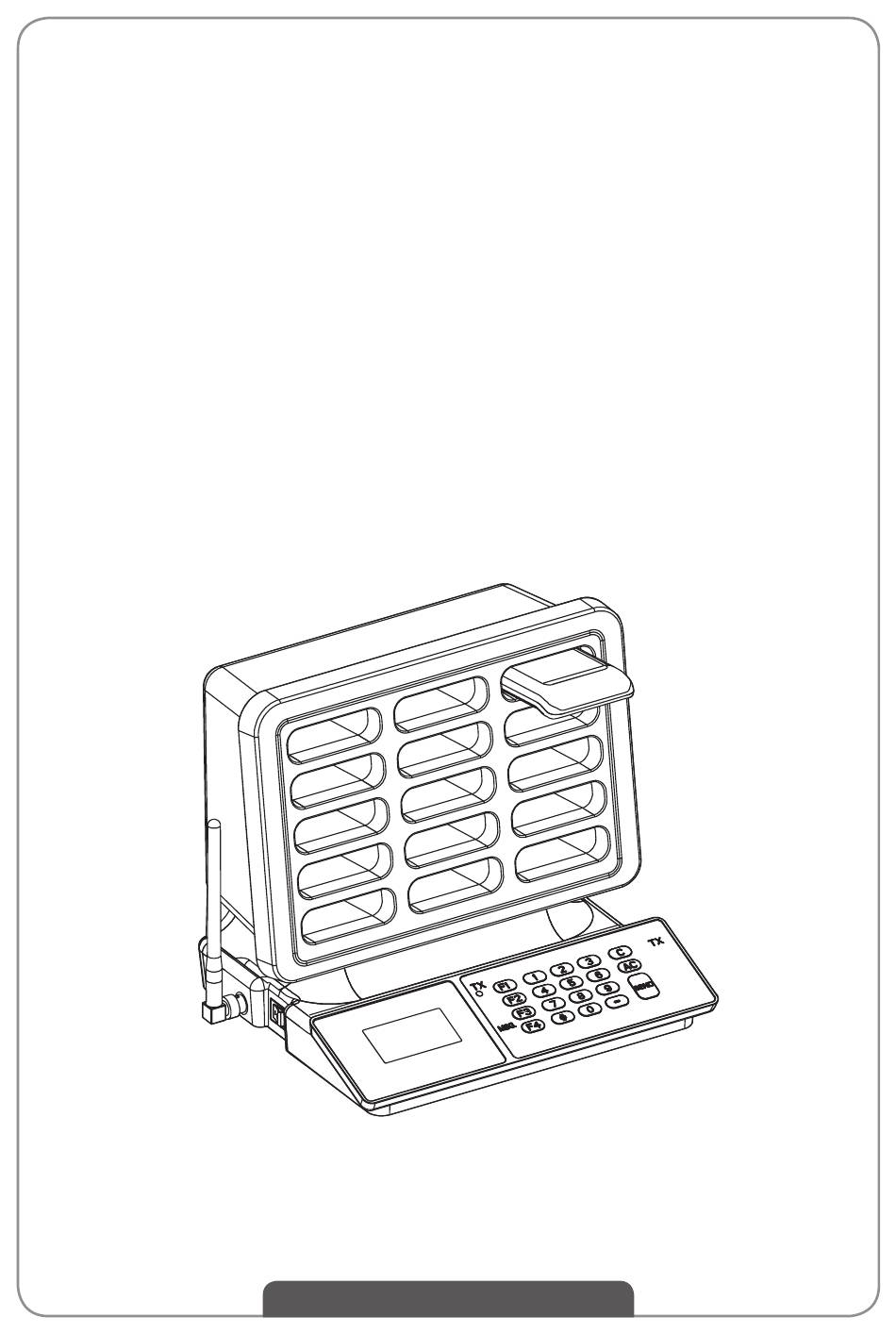

- Page 1 All-In-One A07 Pager & A07TCP User Manual Part No. 765-00076-0...
-
Page 3: Table Of Contents
Turning Off Pagers ............7 Finding Pagers .............. 8 Alert Type ..............9 Wait Time ............... 10 Range Test ..............11 Optional Application ............12 Optional Application ............13 Connection for A07 TCP Extension ....... 14 Set-up for Extension Slave Base ........15... -
Page 4: Product Overview
Product Overview Charging Slots BNC Conncetor Control Buttons Power On/Off Switch LCD Display To extnetion charger base, up to 3 charger base DC Jack USB Programmer... -
Page 5: How To Change Insert
How to change insert Sticker LED Indicator Under charging : Red Out of range : Green Low battery : Red,Flashing Screw LCD display Acrylic... -
Page 6: Control Buttons
Control Buttons 6 Min ( 3x 2 ) SEND MS G 01 : 00 Read Keys : Number0~9,C,AC,Send, " ↑ " , " ↓ " : To page other staff pagers (optional) : To enter “function menu” : Optional funtion Read , ... -
Page 7: System Set Up
System set up Perform the following steps to prepare your A07 TCP & AL- A07 pagers for operation: Connect A07 TCP (Transmitter,Ch arger,Programmer) transmitter with power adapter. Lock the antenna to the transmitter. Place all AL-A07 pagers into the charging slots. Make sure all the pagers are pushed all the way to the end until you hear “click”. -
Page 8: Manual Programming
Manual Programming You can program the pager numbers manually. All the pagers will be assigned with a new number in sequence Place all the pagers in the charging slots properly. Press and hold key “1” and turn on power. Enter password “456” and press “Send”... -
Page 9: Calling Pagers
“last paged time” starts counting After the guest returned the pager, just put the pager back on the charger. The A07 TCP will detect and delete the pager’s number from the display. It will also show how long it took the guest to get back after paging them. -
Page 10: Turning Off Pagers
The user can enter password “1900 + SEND” to turn off all the pagers. 19 00 SEND MS G Read Note: The pagers are automatically turned off when placing in the charging slots. The pagers are also turned off when the A07 TCP is off. -
Page 11: Finding Pagers
Finding Pagers You can use the “FIND PAGER” function to locate pagers. Enter function menu and select “2. FIND PAGER”. Press “SEND” and all the pagers (not on charging) will be paged. Press “AC” to exit. Ma nual F un c : 1. -
Page 12: Alert Type
Alert Type The user can set different alert types when calling pagers. There are 4 types of alert (A, B, C & D) can be set. You can modify and assign different types of alert through our programming software. Press “Fun.” Key to enter function menu. Select “3. ALERT TYPE”... -
Page 13: Wait Time
Wait Time The user can define the waiting time for each customer based on their experiences. The A07 TCP will show the waiting time (for reference) on the display. For example, set the waiting time at 2min. If there are 2 customers waiting, then the waiting time will show 4min (2 x 2min). -
Page 14: Range Test
You can test the transmitting coverage with the “Range Test” * function. Move the cursor to “5”: “Range Test” then press “SEND” to enter. The A07 TCP will keep paging every 10 sec. until the user press “AC” to exit. -
Page 15: Optional Application
Optional Application 2 Staff Call Buttons There are 2 group buttons (G1 & G2) can be set up for group call. Follow up the capcode given, users can page certain staff from either group via the staff pager ALA03. To set up capcode of staff pager ALA03: To check capcode, please press 7 + power on. -
Page 16: Optional Application
Optional Application To use with 3-digital numbers LED sign (LDN3) A wireless LED sign is optional slave to show numbers in sending To set up the LDN3: Whenever enable LDN3 in first using, please have it programmed with the capcode shown on monitor: Press 5 + power on, entering password 456 and SEND. -
Page 17: Connection For A07 Tcp Extension
Connection for A07 TCP Extension Connect A07 TCP (master) using RJ45 cable with Slave 1, Slave 1 to Slave 2 and so on. You can connect up to 3 extension slaves (total 60 pagers). RJ45 RJ45 RJ45 SEND Read A07 TCP... -
Page 18: Set-Up For Extension Slave Base
Set-up for Extension Slave Base When connecting A07 TCP with extended slave bases, please adjust the DIP switch as mentioned below. Master Slave 1 Slave 2 Slave 3 Master Only With 1 slave With 2 slave With 3 slave... - Page 20 Make sure to read this manual before using the machine. Please keep it in hand for future reference. 765-00076-0...
