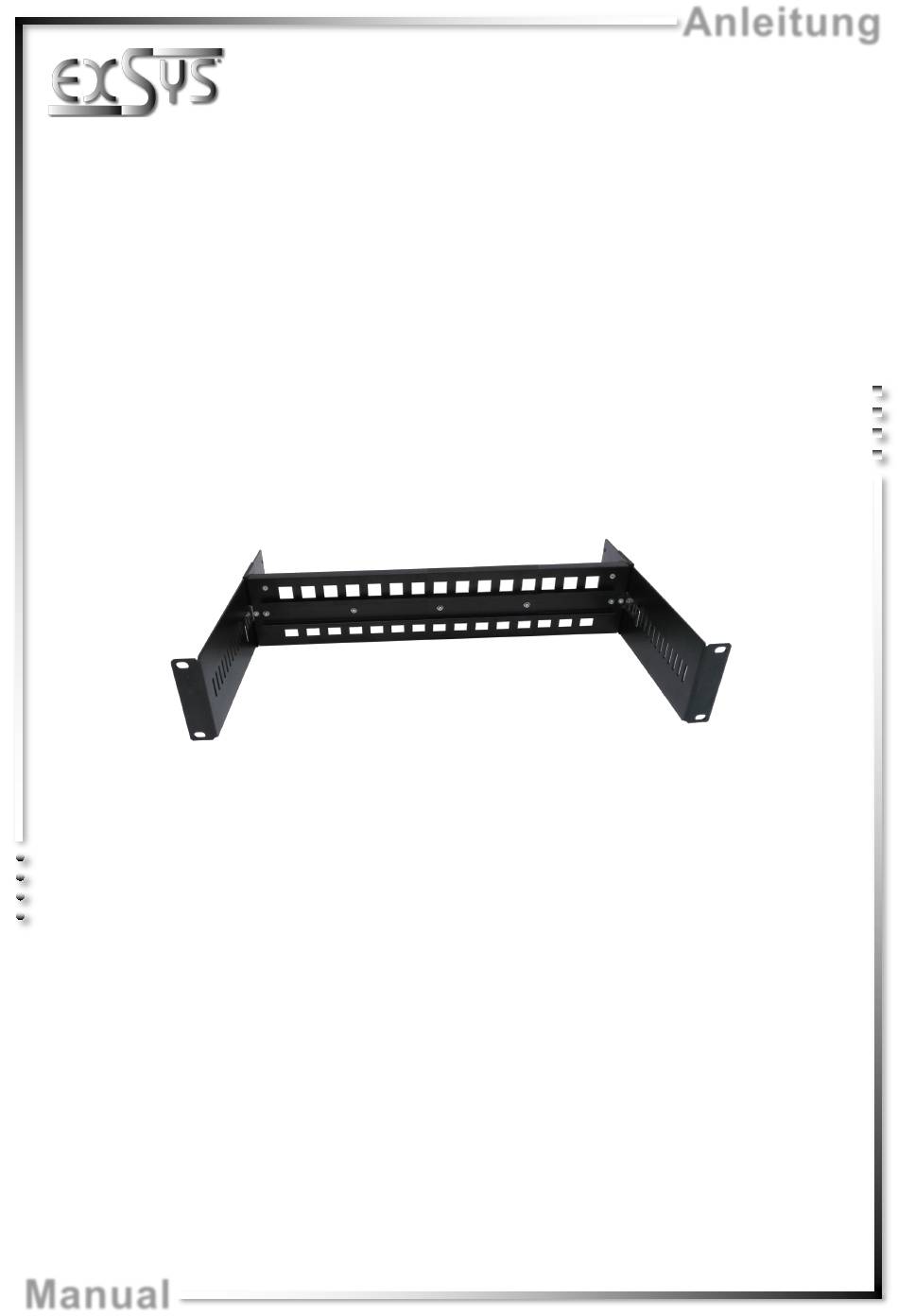

- Page 1 Anleitung EX-6090 DIN-Rail Rackmount-Kit, 2HE DIN-Rail Rackmount-Kit, 2U Deutschland: EXSYS Vertriebs GmbH Industriestrasse 8 61449 Steinbach www.exsys.de Schweiz: EXSYS Vertriebs GmbH Dübendorfstrasse 17 8602 Wangen www.exsys.ch Vers. 1.0 / 21.02.23 Manual...
- Page 2 Eine 35 mm DIN-Schiene ist bereits enthalten und kann in der Tiefe von 25 mm bis 205 mm verstellt werden. Die maximale Traglast beträgt 8 kg. The EX-6090 DIN-Rail rackmount kit is installed in a standard 19" rack cabinet to enable to allow DIN-Rail mounting of devices in the rack.
- Page 3 Make sure that the rackmount side panels and the DIN-Rail back panel are securely connected. 4. Slide the EX-6090 into the 19" rack cabinet. Use a screwdriver and four screws to secure the rack to the server cabinet.
- Page 4 Maximum load capacity: 8 kg Adjustable depth: 25 mm to 205 mm (1" to 8") Color: black Size: 482.6 x 92.2 x 250 mm 6. Technische Zeichnung / Technical Drawing © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved...
