Summary of Contents for Smarteh Longo Bluetooth Products LBT-1.GW1
- Page 1 USER MANUAL Longo Bluetooth Products LBT-1.GW1 Modbus RTU Bluetooth Gateway Version 1 SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0)5 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si...
- Page 2 Longo Bluetooth Products LBT-1.GW1 Written by SMARTEH d.o.o. Copyright © 2023, SMARTEH d.o.o. User Manual Document Version: 1 February, 2023...
- Page 3 – in consideration of maximum allowed connecting power, warranty of 24 months is valid from the date of sale to the end buyer, but not more than 36 months after delivery from Smarteh. In case of claims within warranty time, which are based on material malfunctions the producer offers free replacement.
-
Page 4: Table Of Contents
4.1. Other Modbus RTU Bluetooth gateway functions:......5 4.2. Operation parameters...............5 4.3. Modbus RTU settings:..............5 5.INSTALLATION.................8 5.1.Connection scheme..............8 5.2.Mounting instructions...............10 5.3.Maintenance................14 6.SYSTEM OPERATION ................15 6.1.Interference warnings .............15 6.2. Application examples based on Smarteh Bluetooth products....16 7.TECHNICAL SPECIFICATIONS...............17 8.MODULE LABELING................18 9.CHANGES ..................19 10.NOTES..................20... -
Page 5: Abbreviations
Longo Bluetooth Products LBT-1.GW1 1.ABBREVIATIONS Light Emitted Diode Programmable Logic Controller Personal Computer OpCode Message Option Code LBT-1.GWx x means different number of gateway type i.e. LBT-1.GW1 Modbus RTU Bluetooth Mesh gateway... -
Page 6: Description
* Observed from network provisioning tool ** User defined parameters, refer to option code table Beside Smarteh Bluetooth Mesh devices, other standard Bluetooth Mesh device can be integrated into above mentioned Bluetooth Mesh network. More than a hundred Bluetooth Mesh devices can be... -
Page 7: Features

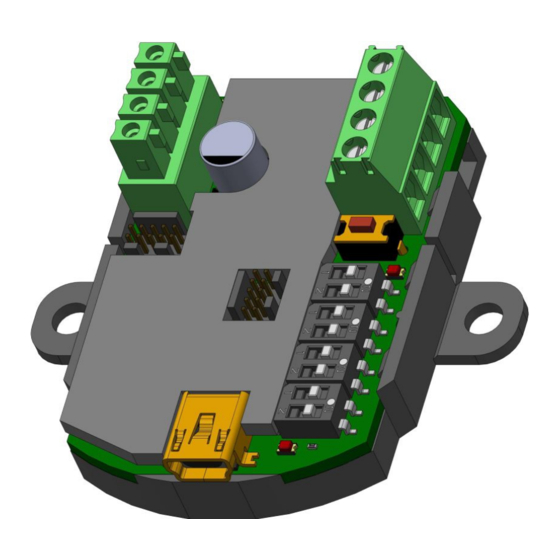

Longo Bluetooth Products LBT-1.GW1 3.FEATURES Figure 1: LBT-1.GW1 Table 2: Technical data Communication standard: Bluetooth Mesh is a low power wireless mesh protocol and allows device to device communication and device to main control device communication Radio frequency: 2.4 GHz Radio range for direct connection: <... -
Page 8: Operation
Longo Bluetooth Products LBT-1.GW1 4.OPERATION LBT-1.GW1 Modbus RTU Bluetooth gateway can operate with Smarteh LBT-1 products and with other vendor Bluetooth Mesh product while provisioned to the same Bluetooth Mesh network. Bluetooth Mesh vendor model of the individual product must be obtained from the vendor. At the same time it must also be connected to the PLC controller or PC, supporting Modbus RTU RS485 communication. -
Page 9: Other Modbus Rtu Bluetooth Gateway Functions
LPC-3.GOT.012 or similar, transmits and receives following general operation codes listed in table below. For operation codes related to the individual Smarteh LBT-1 Bluetooth product, please see the corresponding LBT-1 user manual. All communication between PLC based main control device as LPC-3.GOT.012 or similar is performed by using Modbus RTU communication. - Page 10 Longo Bluetooth Products LBT-1.GW1 Table 4: 4xxxx, Holding registers, Modbus RTU to Bluetooth Mesh gateway Raw → Engineering data Reg. Name Description Bit0 toggle → Write Execute command for Read Execute command Bit1 toggle → Read and/or Write by toggling bit Destination node address.
- Page 11 Longo Bluetooth Products LBT-1.GW1 Table 5: 3xxxx, Input registers, Modbus RTU to Bluetooth Mesh gateway Raw → Engineering data Reg. Name Description Number of messages pending 1 .. 10 → 1 .. 10 Messages pending in receiving buffer Destination node address. Can 0 ..
-
Page 12: Installation
Longo Bluetooth Products LBT-1.GW1 5.INSTALLATION 5.1.Connection scheme Figure 4: Connection scheme Table 6: K1, K2 K1.1 Power supply input 5 .. 30 V DC K1.2 Ground K1.3 RS485 A K1.4 RS485 B K2.1 Power supply input 5 .. 30 V DC K2.2... - Page 13 S5.2 DIP Switch NOTE: If LBT-1.GW1 Modbus RTU Bluetooth Mesh gateway is not connected directly to the Smarteh LPC-3.GOT.012 main control or similar device using male-female connectors, twisted pair extension cable should be used. The LBT-1.GW1 gateway must be placed separately from other electrical appliances and cable must be installed separately from high power and high voltage wires in accordance with general industry electrical installation standards.
-
Page 14: Mounting Instructions
Longo Bluetooth Products LBT-1.GW1 5.2.Mounting instructions Figure 5: Housing dimensions Dimensions in millimeters. Gateway attachment to the LPC-3.GOT.012, other PLC controller or PC must be performed while main control device is not powered. - Page 15 Longo Bluetooth Products LBT-1.GW1 Figure 6: LBT-1.GW1 gateway directly connected to the main control device LPC-3.GOT.012 or similar...
- Page 16 Longo Bluetooth Products LBT-1.GW1 Figure 7: LBT-1.GW1 gateway connected to the main control device LPC-3.GOT.012 or similar using extension cable...
- Page 17 Longo Bluetooth Products LBT-1.GW1 1. Check that main control device like Smarteh LPC-3.GOT.012 or similar is not powered. 2. Attach LBT-1.GW1 Modbus RTU Bluetooth gateway to the LPC-3.GOT.012 using integrated male-female connector or use extension cable for connection to other PC or PLC device.
-
Page 18: Maintenance
Longo Bluetooth Products LBT-1.GW1 5.3.Maintenance The LBT-1.GW1 Modbus RTU Bluetooth gateway is a maintenance free. -
Page 19: System Operation
Longo Bluetooth Products LBT-1.GW1 6.SYSTEM OPERATION 6.1.Interference warnings Common sources of unwanted interference are devices that generate high frequency signals. Those are typically computers, audio and video systems, electronics transformers, power supplies, various ballasts, frequency converters and similar. The clearance distance from the LBT-1.GW1 gateway to the any of above mentioned devices should be at least 0.5 m or greater. -
Page 20: Application Examples Based On Smarteh Bluetooth Products
Longo Bluetooth Products LBT-1.GW1 6.2. Application examples based on Smarteh Bluetooth products Figure 8: Smarteh Bluetooth Mesh application example... -
Page 21: Technical Specifications
Longo Bluetooth Products LBT-1.GW1 7.TECHNICAL SPECIFICATIONS Table 10: Technical specifications Power supply 5 .. 30 V DC RF communication interval Parameter inside SW application Max. power consumption screw type connector for stranded wire Connection type 0.75 to 2.5 mm Dimensions (L x W x H) -
Page 22: Module Labeling
EEE – version code (reserved for future HW and/or SW firmware upgrades). • 3. S/N: SSS-RR-YYXXXXXXXXX - serial number. SSS – short product name, • RR – user code (test procedure, e.g. Smarteh person xxx), • YY – year, • XXXXXXXXX– current stack number. -
Page 23: Changes
Longo Bluetooth Products LBT-1.GW1 9.CHANGES The following table describes all the changes to the document. Date Description 10.02.23 The initial version, issued as LBT-1.GW1 Modbus RTU Bluetooth gateway UserManual. -
Page 24: Notes
Longo Bluetooth Products LBT-1.GW1 10.NOTES...
