Spectra Precison HL450 User Manual

Specifications
Working Radius: 1 m - 400 m (3 ft - 1300 ft)
(Laser dependent):
Laser Detection Height: 102 mm (4")
Numeric Readout Height: 76 mm (3")
Accuracy (Dead band):
Fine 1.0 mm 0.05 in 1/16 in
Medium 5.0 mm 0.20 in 1/4 in
Calibration 0.1 mm 0.01 in 1/64 in
Reception Angle: ± 45° minimum
Detectable Spectrum: 610 nm ... 900 nm
Beeper Volumes: Loud = 100+ dBA
Low = 65 dBA
Power Supply: 2 x 1.5 Volt "AA" batteries
Battery Life: 70+ hours
Automatic Shut Off: 30 min
Environmental: Waterproof, Dustproof to IP67
Weight without clamp: 371 g (13.1 oz.)
Dimensions without clamp: 168.0 x 76.0 x 36.0 mm
(6.6" x 3.0" x 1.4")
Operating Temperature: -20°C...+60°C (-4°F...+140°F)
Storage Temperature: -40°C...+70°C (-40°F...+158°F)
*Specifications subject to change without notice.
Notice to Our European Union Customers
For product recycling instructions and more information, please go to:
https://www.trimble.com/en/our-commitment/responsible-business/product-
compliance/environmental-compliance
Instructions for Return to ERFC:
•WEEE is to be shipped to the ERFC, clearly stating WEEE on the delivery note and / or packaging
•Specific product number and serial number information is not required
•Additional return authorisation from Trimble Support is not required
•Delivery Address:
Trimble Europe B.V.
Industrieweg 187A
5683 CC, Best
The Netherlands
Precisional Operations LLC
3265 Logistics Lane
Vandalia, Ohio 45377 U.S.A.
Telephone: +1-888-527-3771
www.spectraprecision.com
Warranty
Precisional Operations LLC warrants the HL450 to be free of
defects in material and workmanship for a period of three
years. Precisional Operations LLC or its authorized service
center will repair or replace, at its option, any defective part,
or the entire product, for which notice has been given during
the warranty period. If required, travel and per diem expenses
to and from the place where repairs are made will be charged
to the customer at the prevailing rates. Customers should
send the product to Precisional Operations LLC or the nearest
authorized service center for warranty repairs or exchange,
freight prepaid. Any evidence of negligent, abnormal use,
accident, or any attempt to repair the product by other than
factory-authorized personnel using Precisional Operations
LLC certified or recommended parts, automatically voids the
warranty. The foregoing states the entire liability of Precisional
Operations LLC regarding the purchase and use of its equipment.
Precisional Operations LLC will not be held responsible for any
consequential loss or damage of any kind. This warranty is in
lieu of all other warranties, except as set forth above, including
any implied warranty merchantability of fitness for a particular
purpose, are hereby disclaimed. This warranty is in lieu of all
other warranties, expressed or implied.
Spectra Precision (Kaiserslautern) GmbH
Am Sportplatz 5
67661 Kaiserslautern, Germany
Telephone: +49-6301-32213
© 2022, Precisional Operations LLC. All rights reserved.
Reorder PN 1277-3965B (09/22)
www.spectraprecision.com
3
2
1

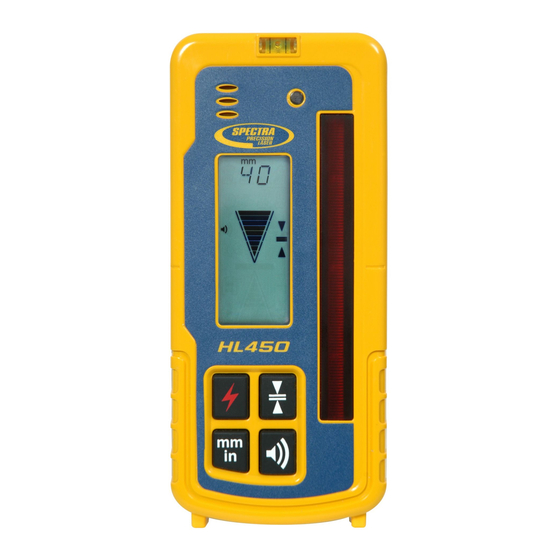

Front view
1. Keypad - Power, Accuracy, Units & Volume switches.
2. Beeper output - Fast, solid & slow audible signal.
3. Bubble Vial - aids in keeping HL450 level.
4. Anti-strobe sensor - Reduces false indication from
strobe lights.
5. SuperCell Reception Window - 4.0 in / 102 mm of
height.
6. Front LCD - Displays elevation, settings and status.
N324
7. On-grade Mark - Aligned with laser center on-grade
reading.
EMC Declaration of Conformity
This receiver has been tested and found to comply with the lim-
its for a Class B digital device for radio noise for digital apparatus
HL450
set out in the Radio Interference Regulations of the Canadian
Digital Readout Receiver
Department of Communication, and is pursuant to part 15 of
the Federal Communication Commission (FCC) rules. These lim-
User Guide
its are designed to provide reasonable protection against harm-
ful interference in a residential installation. This receiver gen-
erates radio frequency. If it's not used in accordance with the
instructions, it may cause harmful interference to radio or tele-
vision reception. Such interference can be determined by turn-
ing the receiver off and on. You are encouraged to try eliminat-
ing the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the laser and the receiver.
For more information, consult your dealer or an experience
radio/television technician.
CAUTION: Changes or modifications to the receiver that are not
expressly approved by Precisional Operations LLC could void
authority to use the equipment.
Declaration of Conformity
Application of Council Directive(s):
Manufacturer's Name:
Manufacturer's Address:
European Representative Address:
Model Number:
Conformance to Directive(s):
Equipment Type/Environment:
Product Standards:
4
5
11
6
10
7
9
8
Rear view
8. Battery Door & Latch for two "AA" batteries.
9. Marking Notch (3.15 in / 80.0 mm from top).
10. Captive Screw Thread
11. Clamp Guides - Dimples align rod clamp.
12. Serial Number / ID Label.
13. Rear LCD - repeats indications of front LCD.
89/336/EEC
Precisional Operations LLC
3265 Logistics Lane
Vandalia, Ohio 45377 U.S.A.
Spectra Precision (Kaiserslautern) GmbH
Am Sportplatz 5
67661 Kaiserslautern, Germany
HL450
EC Directive 89/336/EEC using
EN55022 and EN50082-1
ITE/residential, commercial
& light industrial
Product meets the limit B and
methods of EN55022
Product meets the levels and
methods of IEC 801-2, 8 kV air,
4 kV contact IEC 801-3, 3 V/m
26 to 1000 MHz 80%, @ 1 kHz
12
13
