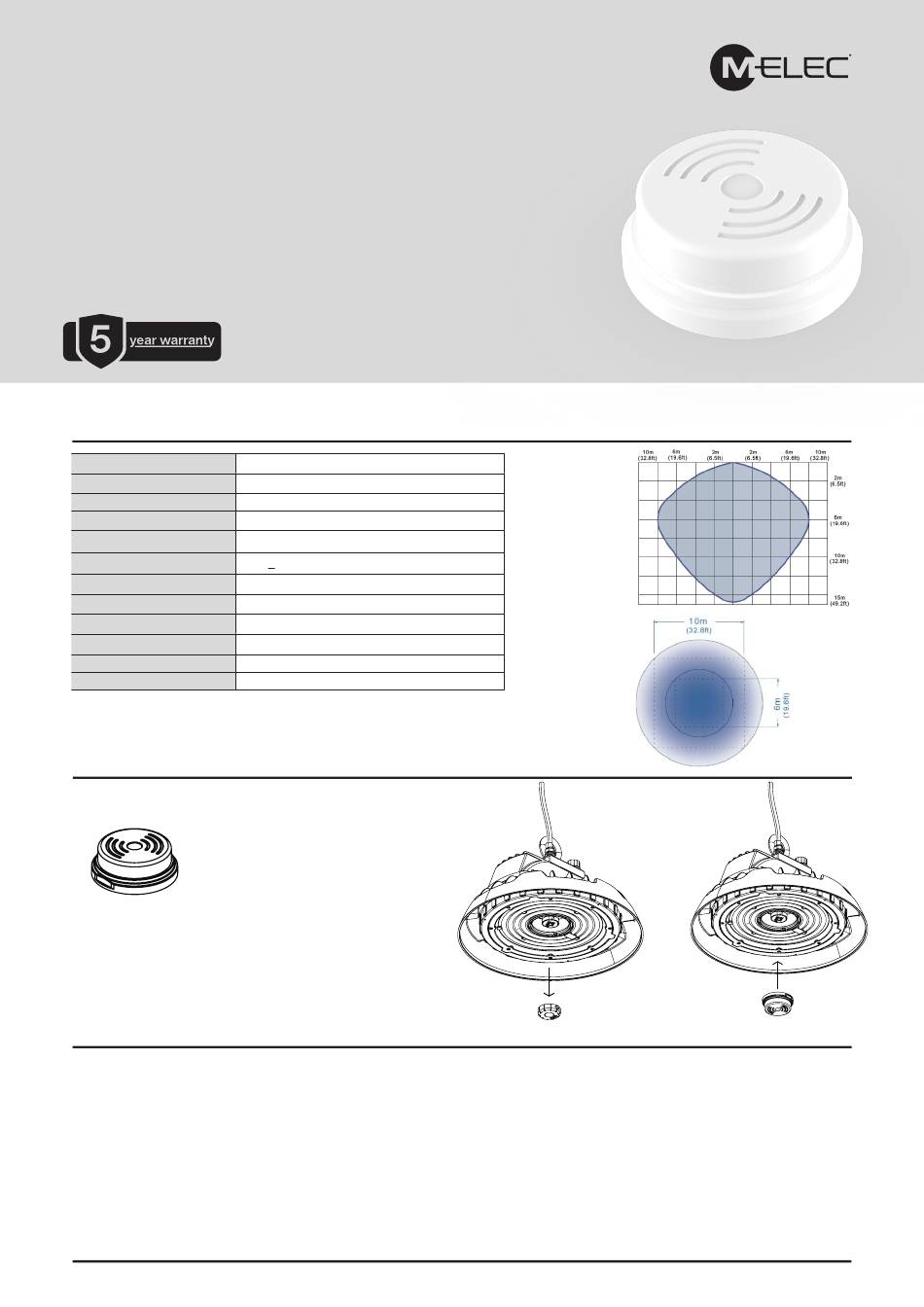

Melec ML-SENSOR Quick Start Manual

ML-SENSOR | ML-REMOTE
Microwave sensor & remote suitable for use with NOX Highbays.
Easy installation with plug & play
Built-in ambient light sensor
Built-in dimming function to easily adjust the luminance of fixtures
The function can be set by IR remote controller
Wide detection range and 10M maximum installation height
ML-SENSOR

TECHNICAL INFORMATION

IP Rating
Input Voltage
Detection Area
Temp Range
Sensor Type
Microwave frequency
Detection Angle
Detection Area
Hold Time
Dimensions
Weight
Warranty

INSTALLATION

MICROWAVE SENSOR

ML-SENSOR INSTALLING MICROWAVE SENSOR
1. Unscrew the lock cap from middle of High Bay
2. Replace lock cap with microwave sensor

PLEASE NOTE

MUST BE INSTALLED BY A LICENSED ELECTRICIAN
• Read instructions carefully before attempting to install the fitting. Retain this guide for future reference
• All components must not be mechanically stressed
• Follow all relevant electrical and safety standards (including AS3000)
• Damage by corrosion will not be honoured as a material defect claim. It is the user's responsibility to provide suitable protection against
corrosive agents such as moisture, condensation and other harmful elements
T. 1300 222 445 | www.melec.com.au
IP65
12VDC
Max 10m Installation heights. Max 16m Coverage area
-35° to +60°
Microwave motion detector
5.8G+75MHz,ISM wave band
150° (wall installation), 360° (celling installation)
Max 10m Installation height | Max 16m Coverage area
5s / 2min / 5min /10min
Ø 58x(H)25mm
0.04kg
5 Years
locking it into place by turning it clockwise.
For further information about our Warranties please go to: melec.com.au/legal/warranties
WALL MOUNTED
SIDE VIEW
CELLING MOUNTED
TOP VIEW
LOCK CAP MICROWAVE SENSOR
