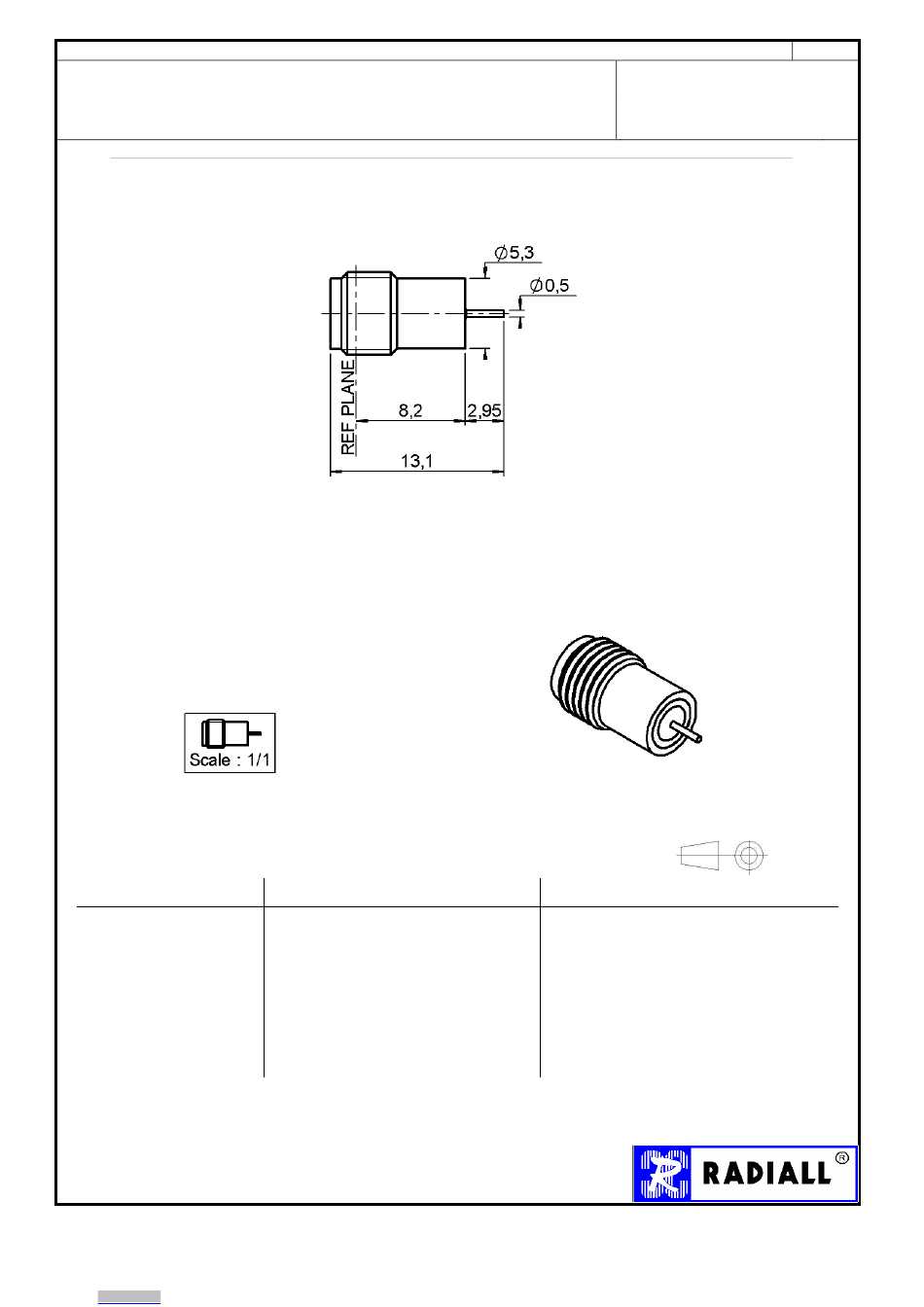

HERMETIC-WITH CYLINDRICAL CONTACT
All dimensions are in mm.
.
.
pn
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
Issue : 1220 A
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
Arrow.com.
Downloaded from
TECHNICAL DATA SHEET
SOLDER JACK RECEPTACLE
MATERIALS
INOX
DILVER P
-
PTFE
-
-
-
-
R125.630.040
Series : SMA
PLATINGS (
GOLD 0.5 OVER NICKEL 2
GOLD 0.5 OVER NICKEL 2
-
-
-
-
1 / 4
µm
)
Advertisement
Summary of Contents for Radiall R125.630.040
- Page 1 TECHNICAL DATA SHEET 1 / 4 R125.630.040 SOLDER JACK RECEPTACLE Series : SMA HERMETIC-WITH CYLINDRICAL CONTACT All dimensions are in mm. µm COMPONENTS MATERIALS PLATINGS ( BODY INOX GOLD 0.5 OVER NICKEL 2 CENTER CONTACT DILVER P GOLD 0.5 OVER NICKEL 2...
- Page 2 TECHNICAL DATA SHEET 2 / 4 R125.630.040 SOLDER JACK RECEPTACLE Series : SMA HERMETIC-WITH CYLINDRICAL CONTACT PACKAGING SPECIFICATION Standard Unit Other Contact us ELECTRICAL CHARACTERISTICS ENVIRONMENTAL 50 Ω Impedance Operating temperature -40/+100 ° C Frequency 0-18 GHz Hermetic seal 10-5 Atm.cm3/s VSWR 1.10 + 0,0100 x F(GHz) Maxi...
- Page 3 TECHNICAL DATA SHEET 3 / 4 R125.630.040 SOLDER JACK RECEPTACLE Series : SMA HERMETIC-WITH CYLINDRICAL CONTACT RECOMMENDED MOUNTING HOLE DETAIL PANEL WITH THROUGH HOLE Frequency range 0 – 18 GHz VSWR < 1.10 + 0.03 F PANEL WITH BLIND HOLE Frequency range 0 –...
- Page 4 TECHNICAL DATA SHEET 4 / 4 R125.630.040 SOLDER JACK RECEPTACLE Series : SMA HERMETIC-WITH CYLINDRICAL CONTACT MOUNTING INSTRUCTIONS 1 – Degrease and clean connector and box. 2 –Solder the connector on the panel: Preheating at about 100°c. Take care not to exceed 250°c during solder operation .
