Wireless Pacific X10DR ELITE Plus Quick Start Manual

Liberate Your Mobile Radio™
PRODUCT SHEET
The incredibly compact, lightweight and patented X10DR® secure wireless microphone
extends the power of the mobile radio into the palm of your hand, both in and out of the vehicle.
To provide even greater range and into building coverage, Wireless Pacific have developed a
unique external mount housing for the Elite Plus Gateway. Operating in the 2.4GHz band means
antenna coax cable losses can be significant. Even the best available coax suffers a 3dB loss
on a 5.2m cable run. That's the equivalent of losing half the RF signal!
We are now able to achieve range in excess of 700 meters line of sight coverage by
repackaging the standard Elite Plus Gateway electronic circuitry into an IP65 rated housing
with a XMPA antenna directly mounted on top. Of greater importance, that means greater "in-
to-building"penetration than with a standard internally mounted gateway device.

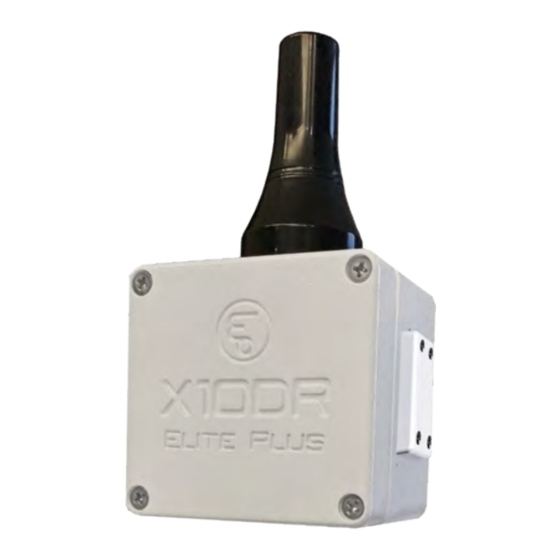

The XRTG-EX2 Plus gateway ruggedised housing mounts on a stainless L shape bracket and are
designed to meet IP65 weatherproof environmental rating and to operate at up to 92ºC and down
to -30ºC meaning it can operate externally in most environment extremes including external use
on Fire engines.
Control Station / Command Post Use
Because there is no range impact on the length of the connecting shielded cat 6 cable, it means the XRTG Plus can be mounted
up to 30 meters plus away from the host radio/control station if need be. This makes the XRTG Plus packaging ideal for warehouse
installations, or in those situations where the required building coverage might be better achieved by mounting the gateway in
a central building high point overlooking the office work areas below. For Command Post Response vehicles, the XRTG Plus
external design makes it also ideal to be mounted on an electric pump up mast, so as to lift the integrated antenna up above any
localized obstructions at a disaster scene and thereby ensure greater signal availability for handset users.

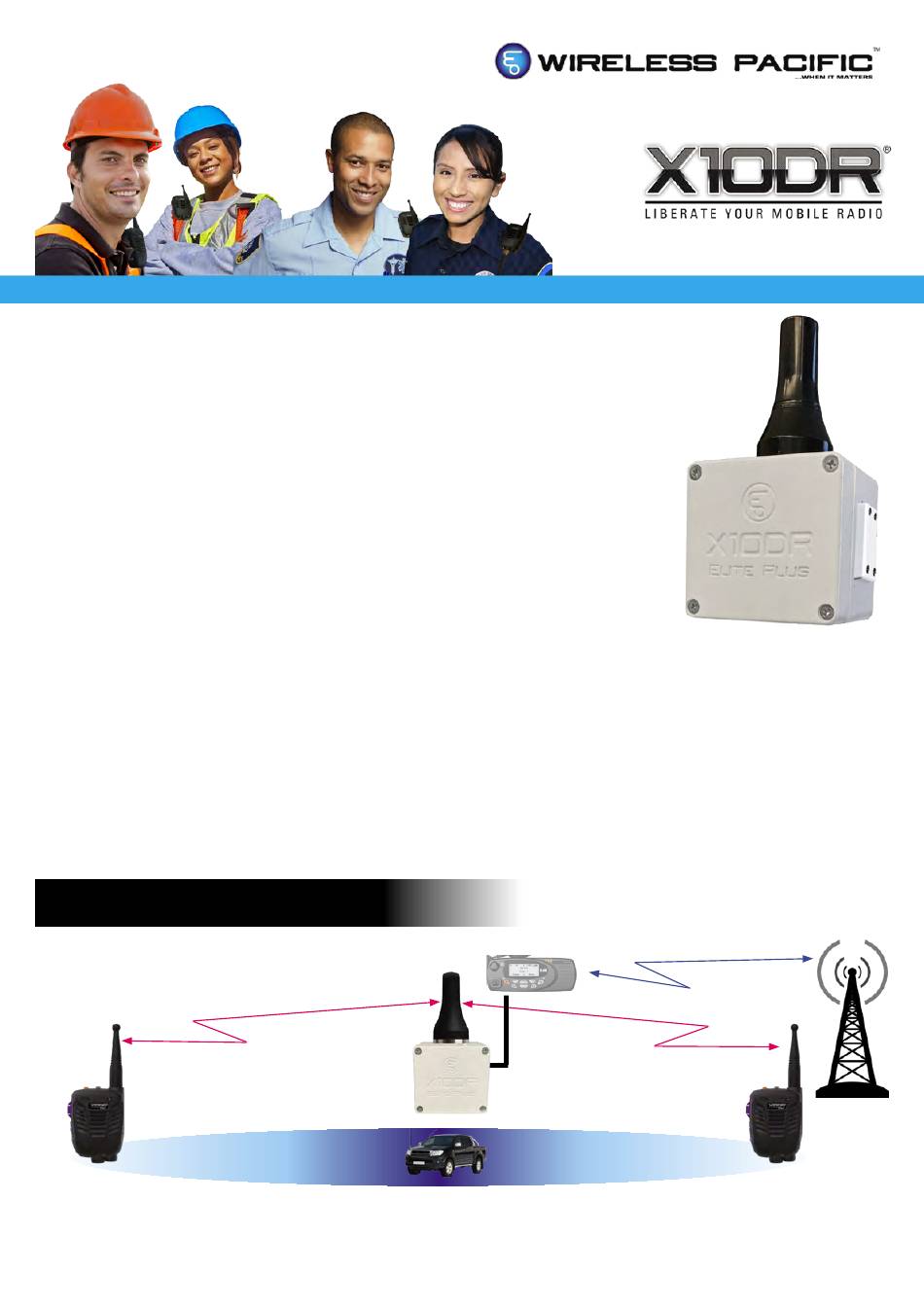

... up to 700 meters.
The gateway connects to your mobile radio in your vehicle up to 700 meters (LOS).
It passes all voice traffic to and from the secure wireless microphones.
700 meters
1400 meters
ELITE Plus XRTG Gateway
SECURE WIRELESS COMMUNICATION
YOUR
MOBILE
700 meters
IP65 Weatherproof
Temperature rating:
-30ºC to +92ºC
via your vehicle's mobile radio
