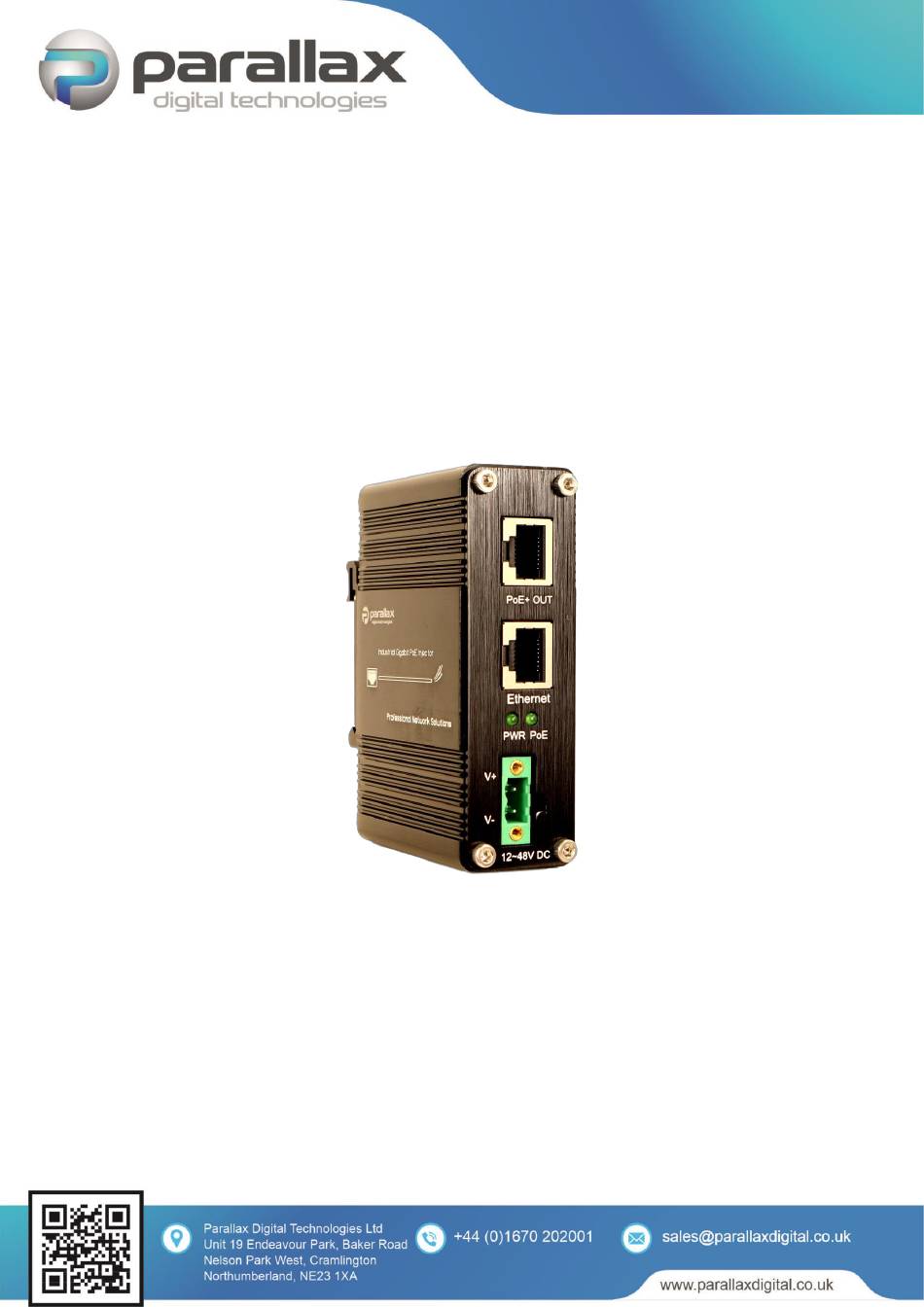

- Page 1 Operations Manual PDT-PIN-7001-MP-I Revision 1.0 – September 2022...
-
Page 2: Table Of Contents
Table of Contents Revision History ..............................2 Abbreviations ..............................3 Safety Information ............................4 General Safety Information ........................4 DC Power Supply ............................4 Packing List ..............................4 Product Overview ............................5 Connectors and Indicators ..........................6 LED Indicators ............................6 RJ45 Ports ...............................6 Power Supply Connector ........................6 Installation Procedures ...........................7 DIN Rail Installation ..........................7 Wall Mount Installation ..........................7 Connection and Setup ............................8... -
Page 3: Revision History
1. Revision History Date Comments Checked Date 13/09/2022 Initial Release 13/09/2022... -
Page 4: Abbreviations
2. Abbreviations Abbreviation Description Access Point Copper-Clad Aluminium Direct Current IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power Supply Unit... -
Page 5: Safety Information
Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party. -
Page 6: Product Overview
5. Product Overview The PDT-PIN-7001-MP-I is a hardened Gigabit Ethernet PoE Injector which facilitates connectivity for IEEE 802.3 af/at devices, such as cameras, access points, and other PoE devices, up to a range of 100m from the PoE Injector. The input and output ports both support 10/100/1000 BASE-T and are compliant with IEEE 802.3ab. -
Page 7: Connectors And Indicators
The PoE+ Output Port should be used to connect directly to PoE devices. 6.3 Power Supply Connector Model No Power Input PDT-PIN-7001-MP-I +12-48VDC Note: All Power Supplies should provide over-current and short-circuit protection and should have a capacity rating to meet the required output current for the device. -
Page 8: Installation Procedures
7. Installation Procedures 7.1 DIN Rail Installation Attach the DIN Rail Bracket (if not fitted) to Clip the upper edge of the bracket onto the the switch case using the screws supplied DIN Rail and push to latch the bottom strip 7.2 Wall Mount Installation Attach the Wall Mount Bracket (if not fitted) Mount the switch to the required surface... -
Page 9: Connection And Setup
Please inspect the unit to ensure that there is no damage to the external casing which could cause a malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax Digital Technologies for inspection and testing. -
Page 10: Hardware Specification
10. Hardware Specification ETHERNET Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet Forwarding and Filtering Rate 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) Packet Buffer 1Mbits Packet Length 10KB MAC Address Table... - Page 11 CERTIFICATION Electrical Safety EN 62368-1:2020+A11:2020 Emissions EN 55032:2015+A1:2020 Radiated Immunity EN 55035:2017+A1:2020 Harmonic Emissions EN 61000-3-2:2014 Fluctuations and Flicker EN 61000-3-3:2013 Electro-Static Discharge EN 61000-4-2:2009 Electromagnetic Field Immunity EN 61000-4-3:2010 Electrical Fast-Transients EN 61000-4-4:2012 Surge EN 61000-4-5:2014+A1:2017 Conducted Immunity EN 61000-4-6:2014 Power Frequency Magnetic Field EN 61000-4-8:2010 RoHS...
