Operating Instructions
Read ENTIRE IMPORTANT SAFETY INFORMATION section at beginning of this manual
including all text under subheadings therein before set up or use of this product.
Note: Once Assembly is complete, tighten ALL Bolts before initial operation.

Lifting and Lowering

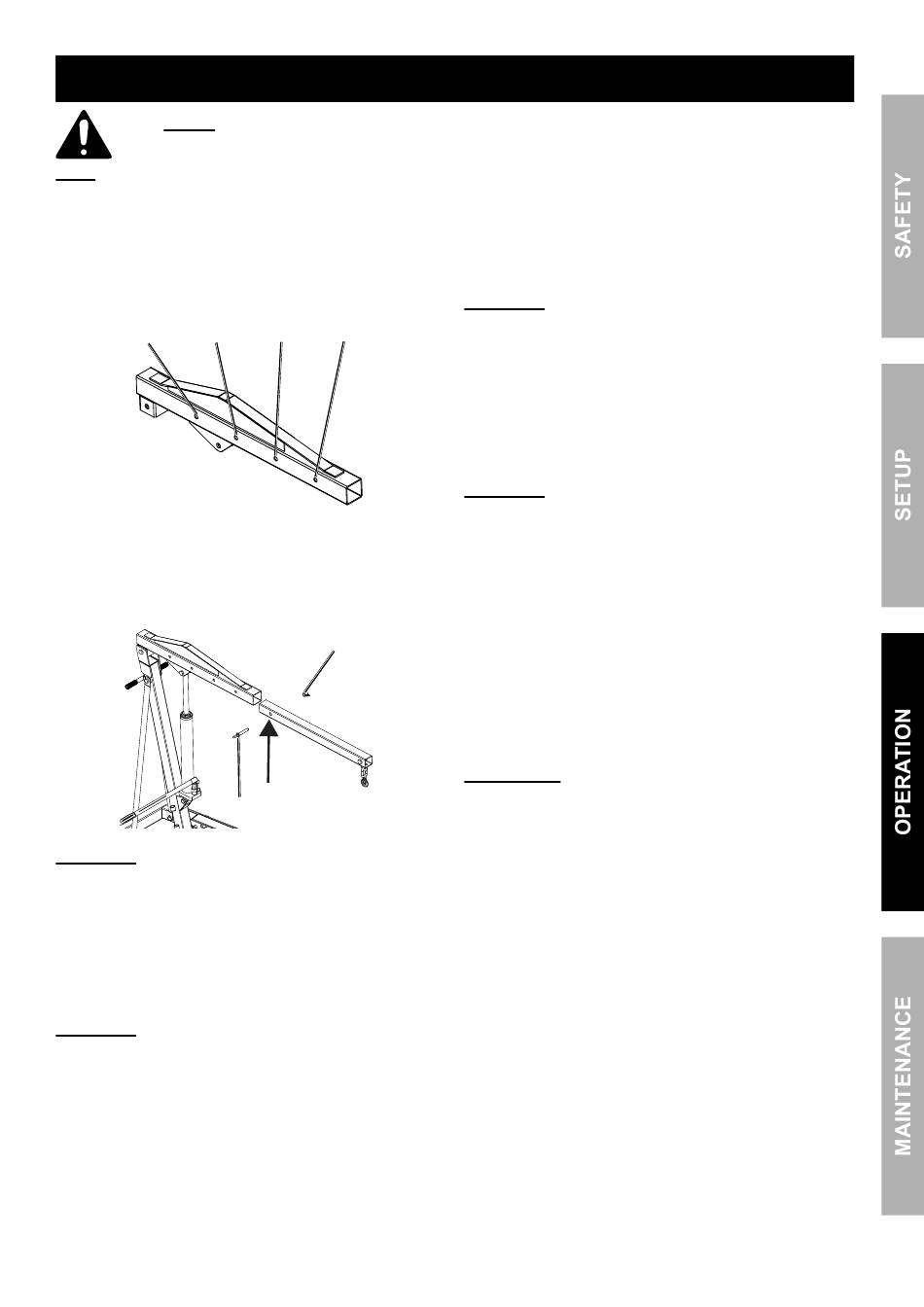

1. Locate hole on Boom (7) with a weight limit higher
than weight to be lifted.
For example: Locate 1 TON hole on Boom
for a load that is under one Ton.
2 Ton 1-1/2 Ton 1 Ton 1/2 Ton
2. Adjust Boom Extension (6) so hole furthest
from Hook and Chain (1) aligns with chosen
hole on Boom. Secure into place by inserting
Long Pin (32) through all aligned holes,
then place R-Pin (27) onto Long Pin.
Long Pin (32)
WARNING! Do not stand under an object that is
being lifted by Shop Crane. Be aware of possibility
of a load slipping off Hook and Chain. An item that
falls from Shop Crane can cause serious injury.
3. Move Shop Crane so that Hook and Chain
is directly above item to be lifted.
4. Securely attach Hook and Chain to item.
WARNING! TO PREVENT SERIOUS INJURY:
Fully tighten release valve or else Jack may
lower or may not be able to reach full height.
Item 58755
R-Pin (27)
For technical questions, please call 1-888-866-5797.
5. To raise Boom, turn Jack's release valve fully
clockwise (right). Insert Handle (18) into Jack
and pump (up and down) repeatedly until
item has been lifted to desired height.
WARNING! TO PREVENT SERIOUS INJURY:
DO NOT MOVE SHOP CRANE WHEN UNDER
LOAD. Casters are not designed to be rolled
when Shop Crane is lifting heavy objects.
6. To lower Shop Crane, SLOWLY turn Jack's
release valve counterclockwise (left).
Folding the Frame
WARNING! Do not fold Shop Crane while loaded.
1. Lower Shop Crane all the way.
2. Remove both forward R-Pins from
Base and Legs and remove Lock Pins.
Leave rear Lock Pins installed.
3. Raise Leg completely.
4. To lock Legs in upright position, insert a front
Lock Pin into hole closest and just above rear
Lock Pin on Base for each Leg, then install R-Pins.

Bleeding Instructions

IMPORTANT! Before first use, check for
hydraulic oil leaks and thoroughly test equipment.
If it does not work properly, bleed excess air
from its hydraulic system as follows:
1. Fully turn Release Valve (counter
clockwise) and lower Jack completely.
2. Insert Handle into Jack.
3. Apply downward pressure to Boom and
pump Handle quickly several times.
4. Turn Release Valve (clockwise).
5. Test Shop Crane several times for proper operation
before attempting to lift a load. If, after bleeding,
equipment still does not appear to be working
properly, do not use equipment until it has been
repaired by a qualified service technician.
