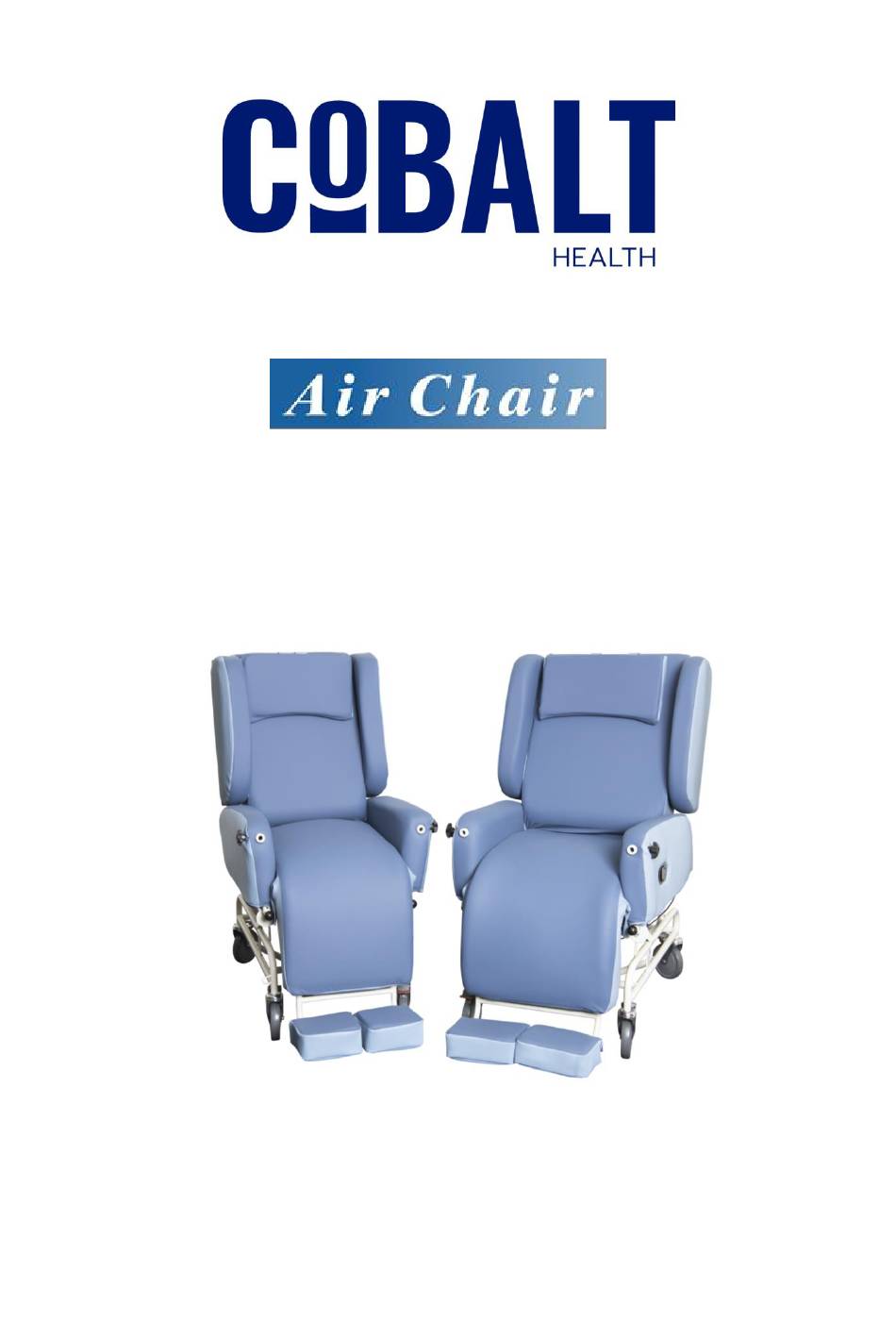

- Page 1 Operation and Maintenance Manual www.cobalthealth.com.au...
-
Page 2: Table Of Contents
Before use, read instructions and follow carefully. CONTENTS Page No.: AIR BAGS ADJUSTMENT OPERATING CASTORS ARM RESTS AND WINGS MEAL TRAY SPECIFICATIONS CLEANING AND DISINFECTION CAUTIONS AND TIPS WARRANTY CARD AIR BAGS Air bags are inflated in the factory to normal operating pressure, adjust pressure in air bags to comfort and clinical requirements. - Page 3 AIR BAGS 4. Depress the valve and pull back cover, closing the Velcro under the seat, and ensuring the cover is fitted snuggly to the chair. Upper Air bag Lower Air bag On models where there are air bags in both the backrest and seat area of the chair, these are inflated using the convenient built-in pumps.
- Page 4 2. The pump for the seat air bag can be accessed by folding down the left hand side-wing, and opening the Velcro strap near the middle of the chair (above, right image). AIR BAGS 3. For both the back rest and seat, to increase the pressure of the air bag, squeeze the pump to let in more air.
-
Page 5: Adjustment
ADJUSTMENT 1. Seat Adjustment and Tilt The whole seat can be tilted by 17 degrees. To adjust the seat tilt, push and hold the lever for tilt (on right hand side of the operator), position the seat at the ideal level of tilt and release the lever. See photo below: 2. -
Page 6: Operating Castors
OPERATING CASTORS OPERATING CASTORS Castor with Total Lock The total lock function includes a brake and prevents swiveling of the castor. Following illustrations show a castor with total lock at locked and unlocked position: Unlocked Position Lock Button To lock press lock button To unlock press unlock button. -
Page 7: Arm Rests And Wings
ARM RESTS AND WINGS ARM RESTS The arm rests can be folded away and detached. To fold away the arm rest, pull the pin outwards and fold the arm rest away from the seat. To detach the arm rest, undo the two bolts which connect the arm rest with the seat. WINGS ON THE BACK REST The position of the wings on back rest can be adjusted as following: To adjust the position of the wing, pull... -
Page 8: Meal Tray
MEAL TRAY • To install the meal tray, insert the arms into meal tray inserts as shown in the photo and fastened both hand screws. Fasten the hand screws on both sides. • To store the meal tray, take the tray off tray holders and insert the arms into the storage ring &... -
Page 9: Specifications
SPECIFICATIONS Air Chair Classic PRODUCT CODE：C01-CLASSIC-XXX (XXX = COLOUR) AIR CHAIR WEIGHT：50 KG INCLUDED ACCESSORIES：Meal Tray, Pillow, Foot Rests Chair Measurement Seat Measurement (Internal) (Overall) Measurement Width Height Depth Depth Height Width 1350 1300 Reclining Foot Rest Tilt 97°～136° 0°～90° 0°～17°... - Page 10 Air Chair Bariatric PRODUCT CODE：C01-BARIATRIC-XXX (XXX = COLOUR) AIR CHAIR WEIGHT：60 KG INCLUDED ACCESSORIES：Meal Tray, Pillow, Foot Rests Chair Measurement Seat Measurement (Internal) (Overall) Measurement Width Height Depth Depth Height Width 1480 1300 Reclining Foot Rest Tilt 97°～136° 0°～90° 0°～17° 200KG CLEANING AND DISINFECTION 1.
-
Page 11: Warranty Card
COBALT HEALTH WARRANTY CARD Air Chair Please retain this Warranty Card and Invoice as proof of purchase. These documents must be presented in the event of making a claim under the following terms. A copy of the completed Warranty Card should be posted or emailed to Cobalt Health at the below PO Box address or email address prior to a warranty service being completed.
