User Instructions
--CPE8881--

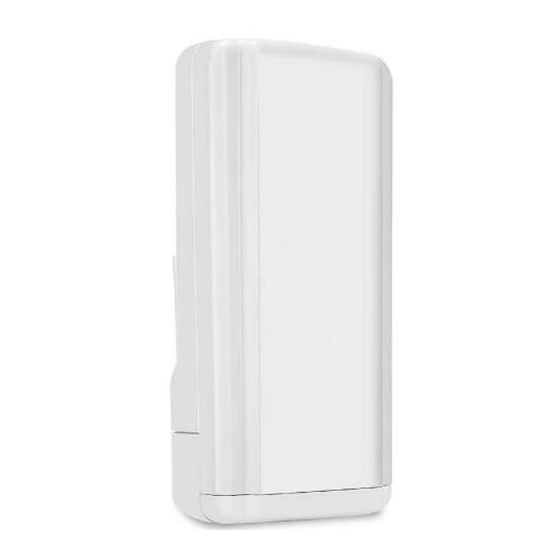

Outdoor Wireless WiFi Bridge
Thank you for choosing TOMLOV CPE8881 Wireless Bridge. Please read this user manual
carefully before use, and keep it for future reference. Or can also find the PDF file of the
manual through the Amazon page and download it. If you need any assistance please feel
free to contact our customer support team by email
support@tomlov.com
Advertisement
Table of Contents
Summary of Contents for TOMLOV CPE8881
- Page 1 --CPE8881-- Outdoor Wireless WiFi Bridge Thank you for choosing TOMLOV CPE8881 Wireless Bridge. Please read this user manual carefully before use, and keep it for future reference. Or can also find the PDF file of the manual through the Amazon page and download it. If you need any assistance please feel free to contact our customer support team by email support@tomlov.com...
- Page 2 Package Included: 2 x CPE8881 Wireless Bridge 2 x PoE Power Adapter 4 x Installation Ties 1 x User Manual Note: This wireless bridge is powered by a PoE adapter through a network cable, so does not require a DC power supply.
- Page 3 Wireless Bridge Outdoor CPE Specification： Specification Details RTL8881, 533Mhz Flash Memory DDR Memory 32MB 5.8G WiFi 1*1 (support IEEE 802.11AC protocol, the highest rate can reach 450Mbps) Antenna 14dBi (Horizontal lobe 60º vertical lobe 25º) Network Interface 1*10/100M adaptive LAN port (Auto MDI/MDIX) Indicator light 5 Green LED indicators LAN1, LAN2, 5.8G, RSSI1, RSSI2 Power Supply...
- Page 4 1. Place the CPE to the selected position and adjust the CPE front panel orientation to be approximately the same as the selected direction, then use the ties to fix the CPE, the bracket is not included in the package. 2.
- Page 5 Access Wireless Bridge Via Computer: 1. Before accessing, please make sure that you have set the computer IP address and the network segment of the wireless bridge IP to be the same. Please refer to the manual to modify the computer IP address step or Google searches how to modify the computer IP address, it is very simple.
- Page 6 2. Detailed configuration steps are as follows: 2.1 PC connect CPE to setup master mode After logging in to the web management page, click “Quick Setup” → select “Master Mode” → select “Next” → “Set IP/Wireless SSID/Wireless Password/Channel” and select “Finish”, Setting AP mode is completed.
- Page 7 If there are any problems during the use, please contact us in time; B. The installation of this device requires some network knowledge. If you can't install it, please let us know or contact a professional. Tech Service Email: support@tomlov.com...
