PAG 6001 Quick Start Manual

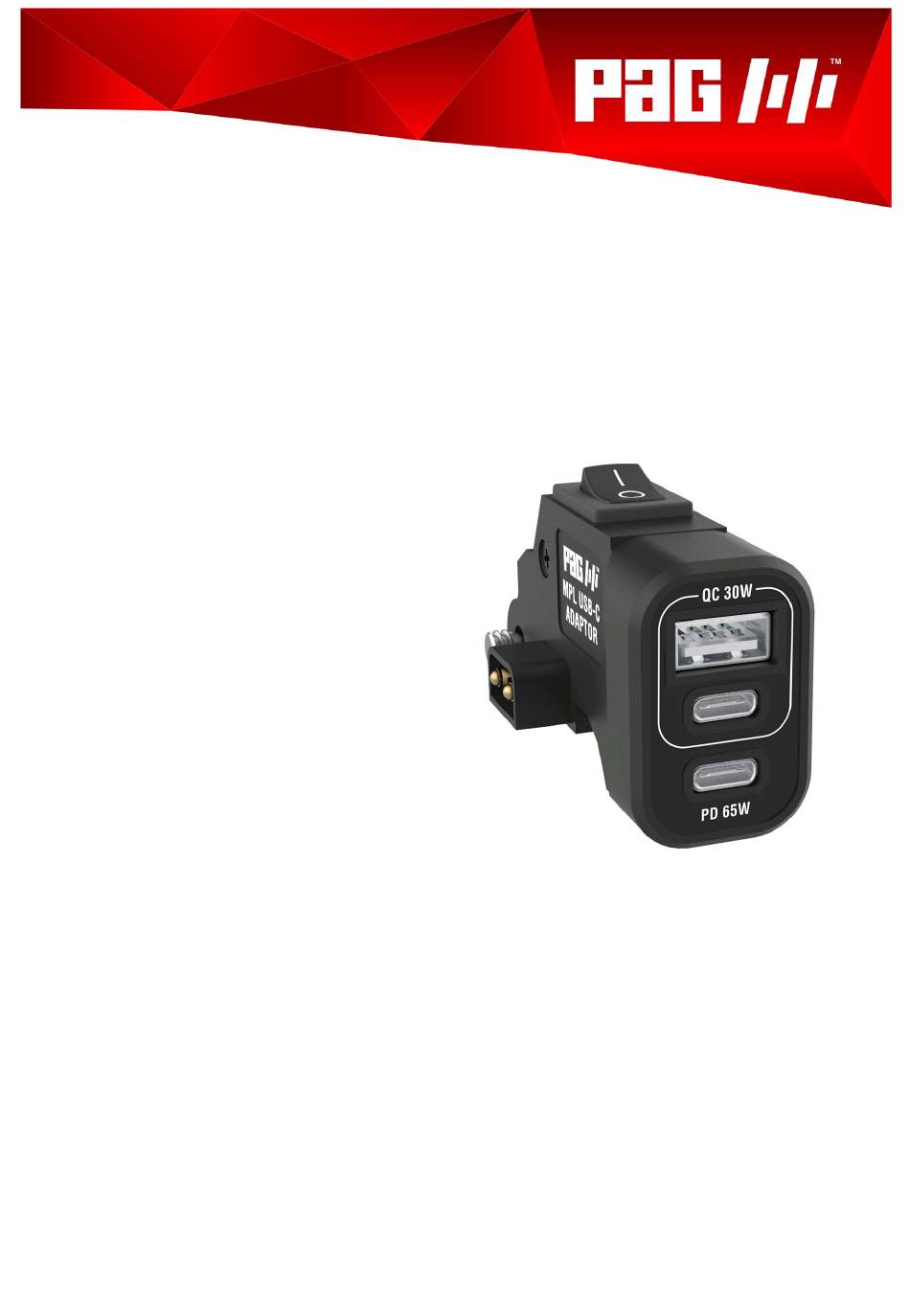

MPL USB-C Adaptor
Model 6001
Safety Instructions
This leaflet contains important safety and
operating instructions. Please read these fully
and note all warnings before using the PAG
MPL USB-C Adaptor.
Retain this leaflet for future reference.
The MPL USB-C Adaptor is intended only for
powering suitable devices, within its specified
range, via the D-Tap outputs of Mini PAGlink
batteries (see 'Specification').
IMPORTANT: Use only with the specified
batteries (see 'Specification'). Do not connect
to other power sources.
Do not attempt to disassemble the MPL USB-C
Adaptor. There are no user-serviceable parts
inside, and incorrect reassembly may result in a
safety hazard.
Do not use the MPL USB-C Adaptor if it has
been damaged in any way. In this event you
should seek advice from PAG Ltd. by
contacting PAG Ltd. support@paguk.com
Specification
Input Connection:
Input voltage: 12-24V. To be powered using
the D-Tap output of Mini PAGlink batteries.
USB-C PD Output:
65W. 5V-3A, 9V-3A, 12V-3A, 15V-3A,
20V-3.25A. Device selected.
USB-C Output (QC 3.0):
30W. 5V-3A, 9V-3A, 12V-2.5A. Device selected.
USB-A Output (QC 3.0):
30W. 5V-3A, 9V-2A, 12V-1.5A. Device selected.
USB-C & USB-A (QC3.0) - outputs used
simultaneously: 30W. 5V 3A.
Protection:
The PAG MPL USB-C Adaptor is reverse
voltage protected.
Suitable batteries for powering adaptor:
Model 8141 MPL50 V-Mount
Model 8241 MPL99 V-Mount
Model 7141 MPL50 Gold Mount
Model 7241 MPL99 Gold Mount
