Summary of Contents for MONTA Sinexcel ROLECEV ULTRACHARGE 160

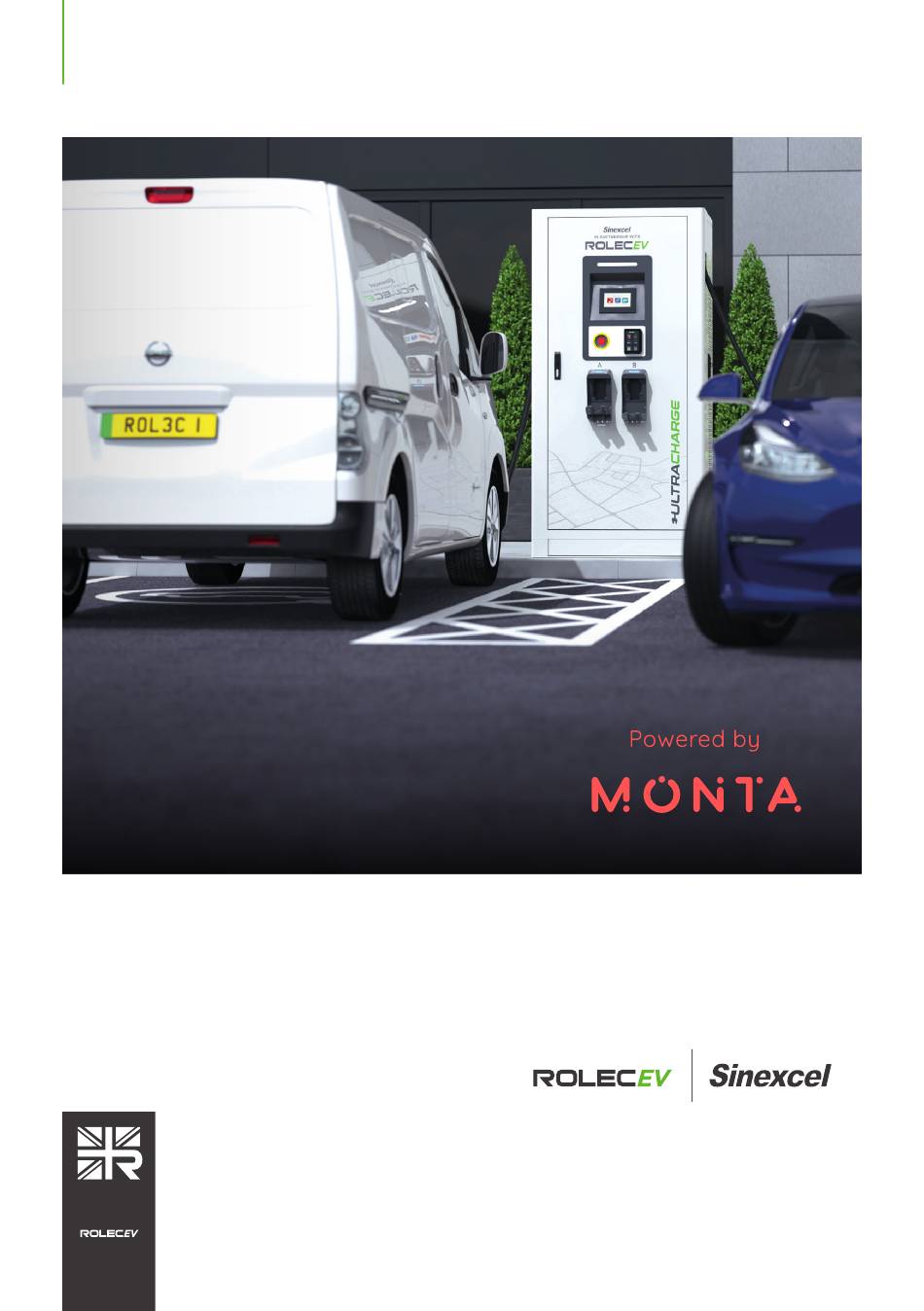

- Page 1 MONTA APPLICATION CONFIGURATION GUIDE ULTRACHARGE 160 Stocked in Intelligent ultra-rapid EV charging station the UK by...
- Page 2 Check the document date, and the Version and Revision number shown at the end of the Document Code (V01-R0, V01-R2, V02-R0, etc). For installation assistance and advice, contact your preferred electrical installer. UltraCharge 160 DC Charger EVUCAM-V01-R0 Monta Application Configuration Guide Page 1 of 13 March 2023...
- Page 3 Product Support Contents Product Support Safety Safety Advice Within this Manual Configure UltraCharge 160 for Monta Requirements Configure Charger Output Power Flexible Configuration Set Power Limits Link the Monta QR Codes IMPORTANT: This document is primarily intended for the following engineers:...
- Page 4 Safety This manual is specifically applicable to the UltraCharge 160 DC Charger and is provided as a guide to the configuration of the connection to the Monta application used to remotely monitor and control the charger. IMPORTANT: Engineers must read and understand the content of this manual.
- Page 5 Make sure exposed electrical components are guarded against accidental contact. Requirements To connect the UltraCharge 160 to the Monta application you will need the following items. 1x SIM Card (supplied with this manual) 2x Monta QR Code labels (supplied with this manual) Laptop PC and web browser and a network cable connection port Network cable –...
- Page 6 Configure UltraCharge 160 for Monta 4. Make sure you have the SIM Card. - It should have been packaged with this manual and the Monta QR code label/sticker. 5. Take a photograph (or make a note) of the SIM card number.
- Page 7 Configure UltraCharge 160 for Monta 11. Connect the network cable to the Router. 12. Connect the other end of the network cable to the laptop PC. Network Cable Figure 6 Network Cable Connected 13. Open the Web browser on the PC and enter the Default IP Address of the Router into the search bar.
- Page 8 Configure UltraCharge 160 for Monta 19. Remove the network cable from the laptop and the Router. NOTE: If the door alarm has been silenced with an override device, make sure to remove the device NOW. The alarm should now start to ‘sound’ again.
- Page 9 This field should be blank – remove any digits that may be shown. NOTE: If you will not be connecting to Monta or you are moving away from Monta, you will need to enter details supplied by the chosen App provider.
- Page 10 Connected to not Connected to Monta Monta 29. If the connection to Monta is bad, the reason must be investigated. Make sure all settings, serial numbers, etc. have been entered as described in this guide. Make sure the site location has a 4G signal that is strong and consistent.
- Page 11 NOTE: If only one connector is to be used, set connector ‘B’ to 0kW. IMPOTANT: The maximum power settings must not exceed the power output of the charge point. EVUCAM-V01-R0 Monta Application Configuration Guide UltraCharge 160 DC Charger Page 10 of 13...
- Page 12 5. Tap the Back button to get back to the Password entry screen. NOTE: To switch this function OFF, go back into the screen and enter 399 again. Figure 22 Debug Screen 2 UltraCharge 160 DC Charger EVUCAM-V01-R0 Monta Application Configuration Guide Page 11 of 13 March 2023...
- Page 13 Link the Monta QR Codes 1. Make sure you have downloaded the Monta smartphone application. 2. Make sure you have the Monta QR code label/stickers – they should have been packaged with this manual and the SIM Card. The labels are marked A or B to correspond to the A/B marked on the charge point above the connectors.
- Page 14 Figure 25 Pair a Sticker 7. See your sticker in the Monta app. You will see a green banner that the sticker was successfully paired. Figure 26 Successfully Paired 8.
- Page 15 This listing of any firm or their logos is not intended to imply any endorsement or direct affiliation with Rolec Services Ltd. and is purely to demonstrate branding opportunities. © 2023 by Rolec Services. All rights reserved. EVUCAM-V01-R0 UltraCharge 160 Monta Application Configuration Guide Stocked in the UK by t: 01205 724754 e: enquiries@rolecserv.co.uk...
- Page 16 IMPORTANT DOCUMENT ENCLOSED KEEP THIS PACKAGE SAFE IT CONTAINS INSTRUCTIONS AND ITEMS THAT WILL BE NEEDED TO CONFIGURE THE EQUIPMENT FOR USE...
