Introduction

module from Evaton Technologies!

dual analog square-wave oscillator module with logic

outputs, in addition to the two clock outputs. Each oscillator

has a high and low frequency range, selectable by a toggle

switch, with the frequency controlled by front panel knobs.

volts to 8 volts. Four outputs are provided: A clock output, B

clock output, the "And" output, and "Xor" output. The And

output is 8 volts when both the A and B clocks are high, and

zero volts otherwise. The Xor output is an inverted

exclusive-OR output. It is low only when either the A clock is

high or when the B clock is high, but not both.

rhythmic patterns based on the ratio of the A and B clock

frequencies. When using all four outputs simultaneously to

clock different parts of your patch, very complex rhythmic

patterns can be achieved and altered in real time.

• Width: 6 HP

• Height: 3U

• Depth: 21mm

• Power: +12V @ 9.0 mA, -12V @ 9.0 mA

• Signal Output: 0 to 8 VDC, 1000 ohm impedance

• Frequency, Low Range: 0.5 Hz to 10 Hz

• Frequency, High Range: 7 Hz to 135 Hz

• Format: Euro modular

• Construction: Made in Pittsburgh, USA, from RoHS-compliant components

User Manual

Revision A

Thanks for purchasing the CLX Eurorack synthesizer

The outputs of the CLX are unipolar; they go from 0

The logic outputs allow you to create complex

Pittsburgh, PA 15220-2718

http://www.evatontechnologies.com/

CLX

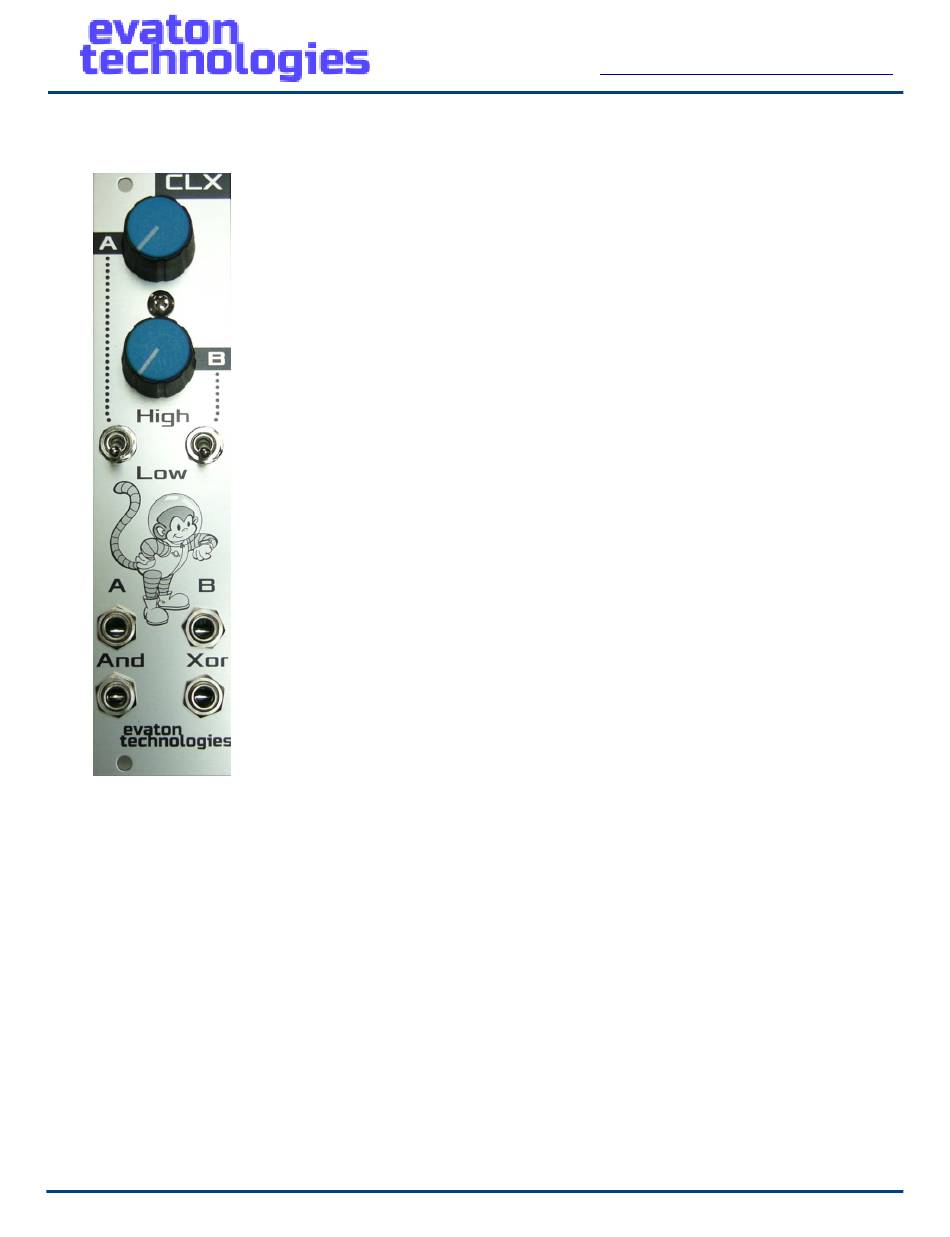

The CLX module is a

200 School St

Table of Contents

Do you have a question about the CLX and is the answer not in the manual?

Page 1 The outputs of the CLX are unipolar; they go from 0 volts to 8 volts. Four outputs are provided: A clock output, B clock output, the “And”...
Page 2 Precautions The CLX outputs signals from 0 to +8 volts DC. While most Eurorack modules are tolerant of this voltage on any input, be sure to check your module’s specs to make sure, before plugging the CLX’s output into an audio input, or into any external audio equipment that is not designed to handle synth-level signals.
Page 3 BOTH signals are high. Logical XOR is high only when one of the signals is high or the other, but not both. The CLX’s Xor output then inverts this signal, which allows it to ﬁt better rhythmically against the other outputs.
Page 4 The Hi/Low switches select the high or low range of frequencies. Patch Ideas The CLX can be used as a dual LFO, as a gate source, as a trigger for drums, as a complex clock input to sequencers and S/H modules and more. Also, because it goes up into the low audio range, it can even be used as a drone generator.
