- Page 1 SPOTTER User Guide...
- Page 2 SPOTTER...
- Page 3 SPOTTER User Guide...
- Page 4 SPOTTER...
- Page 5 What’s Included Sofar Spotter Core Features User Interface Getting Started Spotter Measurements Product Specifications Safety & Compliance Scan the QR code to access online Support page...
- Page 6 Lanyard and magnet to switch from IDLE mode USB-C power charger to charge the battery prior to deployment Bow shackle for attaching a mooring line SD card for data storage during deployment (shipped with unit) Marine-safe desiccant to reduce moisture inside the Spotter...
- Page 7 User Guide Sofar Spotter Spotter is an integrated solution for collecting ocean data. The Spotter platform consists of a globally-connected Spotter Device (“Spotter”), the online Spotter Dashboard, and the Spotter Data API. The Dashboard allows you to configure your Spotter remotely and provides access to real-time Spotter ocean and tracking data, system status and alerts, and data visualization.

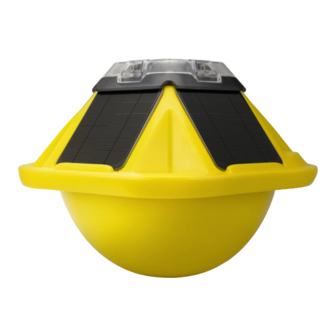

- Page 8 The Spotter device is a compact and lightweight instrument consisting of a waterproof hull, solar panel array, and electronics package. The Spotter is completely solar-powered so you don’t have to replace or recharge the battery during deployment. The solar-battery power system is designed to support Spotter at higher latitudes in limited light conditions.
- Page 9 SIGNAL LED SPO T-3333 Indicates whether a cellular network is present SYSTEM LED Communicates system health status GO LED Displays status of GPS connectivity and solar QR CODE charging system Scan for quick access to Spotter Dashboard SPOTTER ID #...
-
Page 10: Table Of Contents
SPOTTER Getting Started STEP 01 Set up your account and Spotter p. 11 STEP 02 Set up Spotter device p. 12 STEP 03 Deploy Spotter in the water p. 16 STEP 04 Check your Spotter Dashboard p. 17 STEP 05 Retrieve and store Spotter p. -
Page 11: Step 01
The Spotter ID number is also listed on the device, and looks like SPOT-######. After entering this information, click “Register.” You will now see your Spotter listed on the overview page. The map will be updated as soon as the first data message is received, which typically takes 1-1.5 hrs from device power on. -
Page 12: Step 02
IDLE mode and RUN mode. You can switch between modes using the provided magnet by holding it at the designated area for 3 seconds. The Spotter device will always boot into the last mode it was in before it was switched off. - Page 13 3 seconds. • The flashing pattern of the the SYSTEM and GO LEDs and the visibili- ty light will reveal which mode Spotter is in. (See next pages.) • mode, the...
- Page 14 CHARGING mode While OFF and connected to a DC charger Spotters light’s will indicate the following charge status. Please note that charging the Spotter can take as long as 8 hours. Both solid green. System is fully charged.
- Page 15 If the system has a clear view of the sky and the GO LED remains red for longer than 30 minutes, something may be wrong. Please contact the Sofar team. Both solid red. Do not deploy. Follow instructions for red SYSTEM or GO LED detailed above.
-
Page 16: Step 03
(with washers) using a star pattern. The captive screws will bottom out to prevent over-tightening. Note on mooring design: Sofar Spotter can be deployed either as a free- floating drifter or in a moored configuration. For free-floating deployments, the Spotter device comes with everything required to deploy. For moored applications, you will need to design a mooring to anchor the Spotter to the seafloor. -
Page 17: Step 04
Once you are logged in you are on the overview page. If your Spotter has been deployed, it will display as a pulsing dot on the map. In that case, Spotter is set up properly and you can access your data. -
Page 18: Step 05
At this point you can also remove the SD card and download the data stored on the card to your personal computer. If you plan to store Spotter for a longer period of time, please see the notes on “Lithium-ion battery use and storage” below. - Page 19 • Excessive biofouling accumulation on the Spotter or mooring lines. • A Spotter moored directly in the surf zone or in a way where it is pulled through the face of a breaking wave. • Moorings with too much drag or that are missing the required surface float(s) recommended in the mooring guidelines.
- Page 20 SPOTTER Spotter Measurements Spotter has several modes that can be set remotely through the online Dashboard. Waves:Standard is the default mode and will likely be the mode that is used most of the time. In Track mode, the system will provide faster position updates (e.g.
- Page 21 SD card. Note: Track mode will consume data 4x faster. Connectivity Spotter is equipped to transmit data globally via a cellular modem or by Iridium satellite connection. For more information about connectivity and data plans, please visit...
- Page 22 Online Dashboard - unlimited real-time wave statistics and tracking data Spotter Data API - access both the latest and historical data Free-drifting: Spotter measures waves, position Applications and surface currents, designed to operate in any current speed.
- Page 23 User Guide User Guide Power, System Upgrade, and Monitoring Solar-powered, 5x 2 Watt, 6 Volt solar panels Primary power source Lithium-ion, capacity 11,200 mAh, 3.7 V Battery (rechargeable) Standard USB-C connector (cable included) Firmware upgrade Internal temperature, humidity, and solar charging System monitoring monitored for system health.
- Page 24 SPOTTER SPOTTER Product Specifications Dimensions and Weight 7.45 kg (16 lbs, 7 oz) Weight Width 42 cm (16.4”), height 31 cm (12.2”) Dimensions 42 cm (16.4”)
- Page 25 Scan the QR code to access online Support Page Safety & Compliance Trademarks and Patenting Sofar Spotter and other Sofar products are covered by U.S. and interna- tional patents. For a full list of Sofar’s patents, please refer to: www.sofarocean.com/legal/patents The Sofar logo and the terms “Sofar Ocean”...
- Page 26 Changes or modifications not expressly approved by Sofar could void your warranty and your authority to operate this equipment.
- Page 27 Secure your Spotter while it is in transit so that it is not lost or damaged. When deploying your Spotter from a boat, stay clear of all lines, especially when deploying a mooring weight.
- Page 28 SPOTTER Sofar Ocean Technologies, Inc. Pier 28 Annex San Francisco, CA 94105 support@sofarocean.com EMAIL www.sofarocean.com Copyright 2022, Sofar Ocean Technologies, Inc. DOC-000607-AC...
