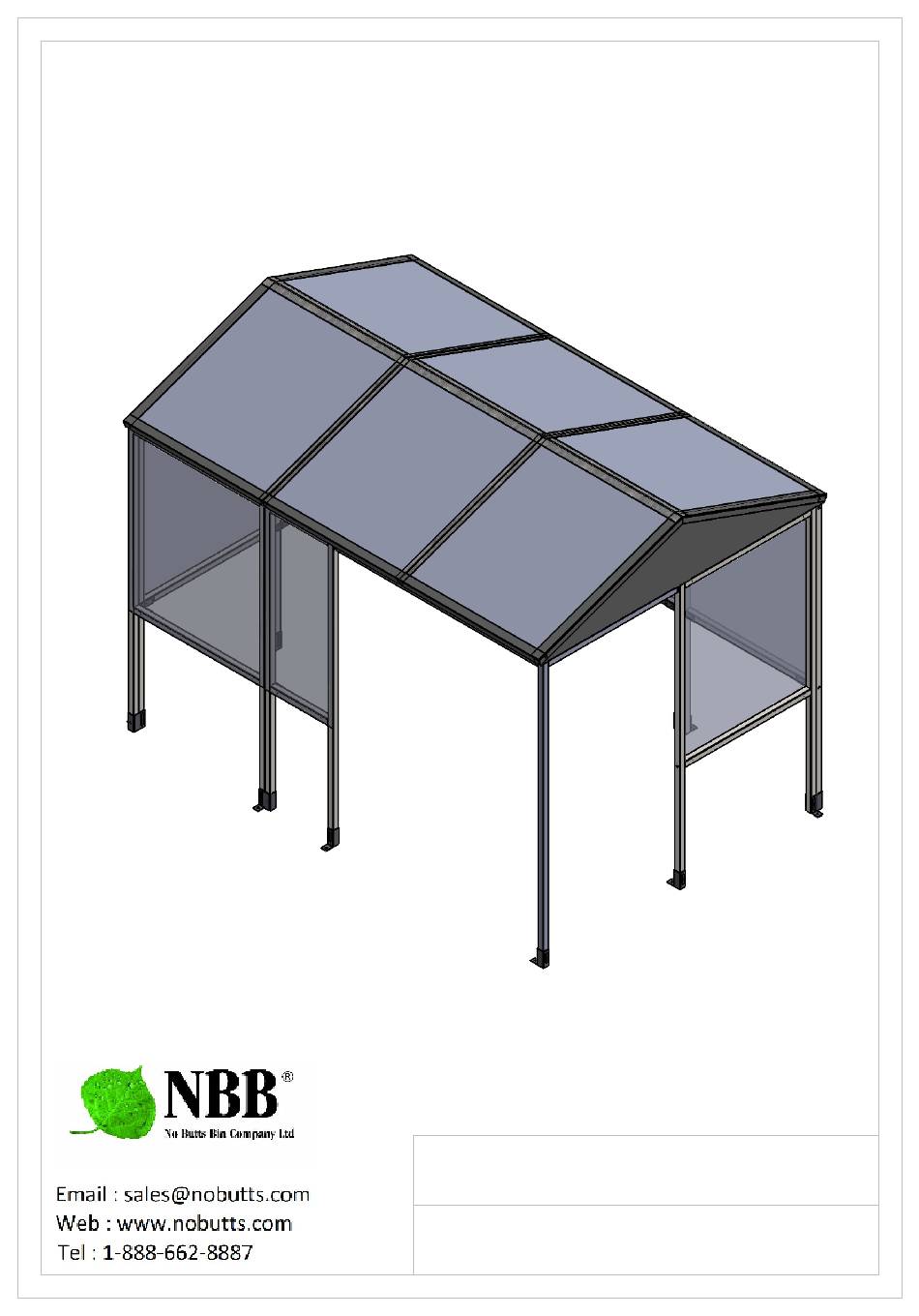

- Page 1 Assembly Instructions Shelter type: SR8063 SR8063-01-02112021-USA...
- Page 2 Exploded View...
-
Page 3: Parts List
PARTS LIST ITEM DRG number Size (inch) IMAGE PART NUMBER QTY. S1 Frame 78.74 x 40.74 Post P1 78.75 x 40.5 S3C Frame JF1 Bracket 8.7 x 1.6 FT1 BRACKET 4.3 x 3.9 x 1.6 DR Bracket 4.3 x 1.6 x 2 AR2R AR2R 2m Pitch Rafter 85.75... - Page 4 FIXINGS...
- Page 5 Step 1 Assemble S1C frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Please note 1.5" Tech Screws are for roof panels only MEASURE THE WIDTH AND DEPTH OF THE SHELTER TO CHECK CORRECT ALIGNMENT.
- Page 6 Step 2 Use JF1 and CB1 brackets to attach the P1 post and ST5 Tie bar .
- Page 7 Step 3 Attach A2R2 rafters unsing DR brackets. Secure the End Panels to the frames using 1" Tech Screws. The end rafters need to be placed in position at the same time as the AR2IS. AR2R AR2R AR2R AR2IS AR2IS 40.75 40.75 40.75...
- Page 8 Step 4 Attach the AR2CLTI and AR2CLTO to the top of the rafters. The ARFSI and ARFSO parts are to be attached to the lower part of the rafter as shown below. AR2CLTO AR2CLTI ARFSO AR2CLTI ARFSI ARFSO ARFSO ARFSI ARFSO AR2CLTI AR2CLTO...
- Page 9 Step 5 Align the outer roof panels AR2POA with the outer edges of the shelter and space the AR2POI panels central. Use the AR2TS strips to seal the gap between the roof panels and cap off the top with the AR2CUTO/AR2CUTI. Once the shelter is in the final position it can be secured to the ground using FT3 and FT1 brackets and the concrete bolts.
- Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all 4 sides.
-
Page 11: Maintenance
THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
