INSTRUCTION MANUAL
INPUT LOOP POWERED ISOLATOR
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner ...............................................................(1)
Mounting screw (M3.5 × 10) ...............................................(2)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the input
signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Be sure to put the terminal cover on while the power is
supplied.
■ AND ....
• The unit is designed to function as soon as the input sig-
nal is supplied, however, a warm up for 10 minutes is re-
quired for satisfying complete performance described in
the data sheet.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL

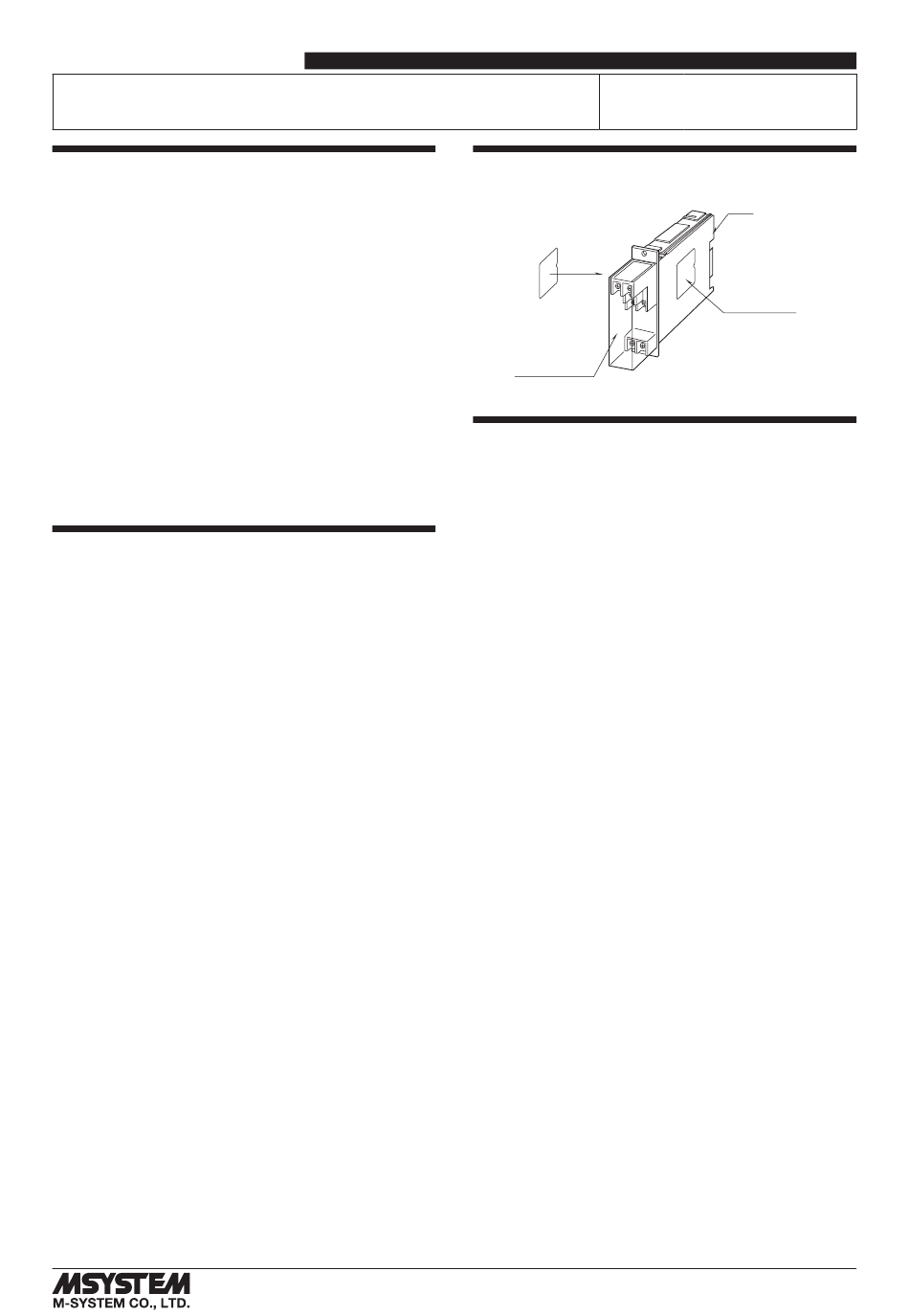

COMPONENT IDENTIFICATION
(side)
Terminal Cover
INSTALLATION
Use Standard Rack (model: 15BX).
15SN
Body
Specifications
EM-0619 Rev.7 P. 1 / 2
Advertisement
Table of Contents
Summary of Contents for M-system 15SN
- Page 1 INPUT LOOP POWERED ISOLATOR MODEL BEFORE USE ..COMPONENT IDENTIFICATION Thank you for choosing M-System. Before use, please check Body contents of the package you received as outlined below. If you have any problems or questions with the product, Connection Diagram please contact M-System’s Sales Office or representatives.
- Page 2 3) Output: Check that the minimum load (50 kΩ) is met. LIGHTNING SURGE PROTECTION M-System offers a series of lightning surge protector for protection against induced lightning surges. Please contact M-System to choose appropriate models. 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN EM-0619 Rev.7 P.
