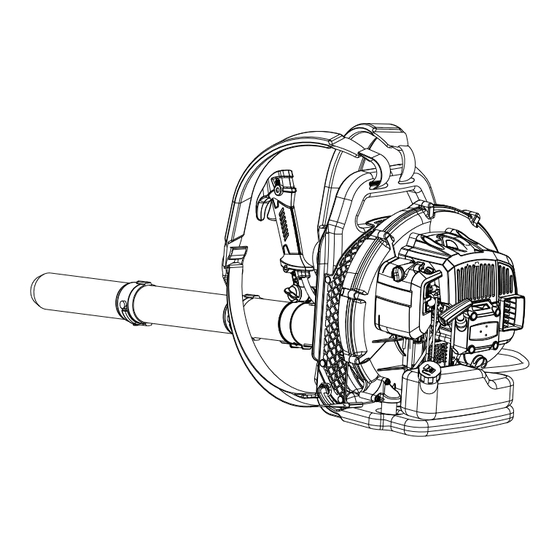

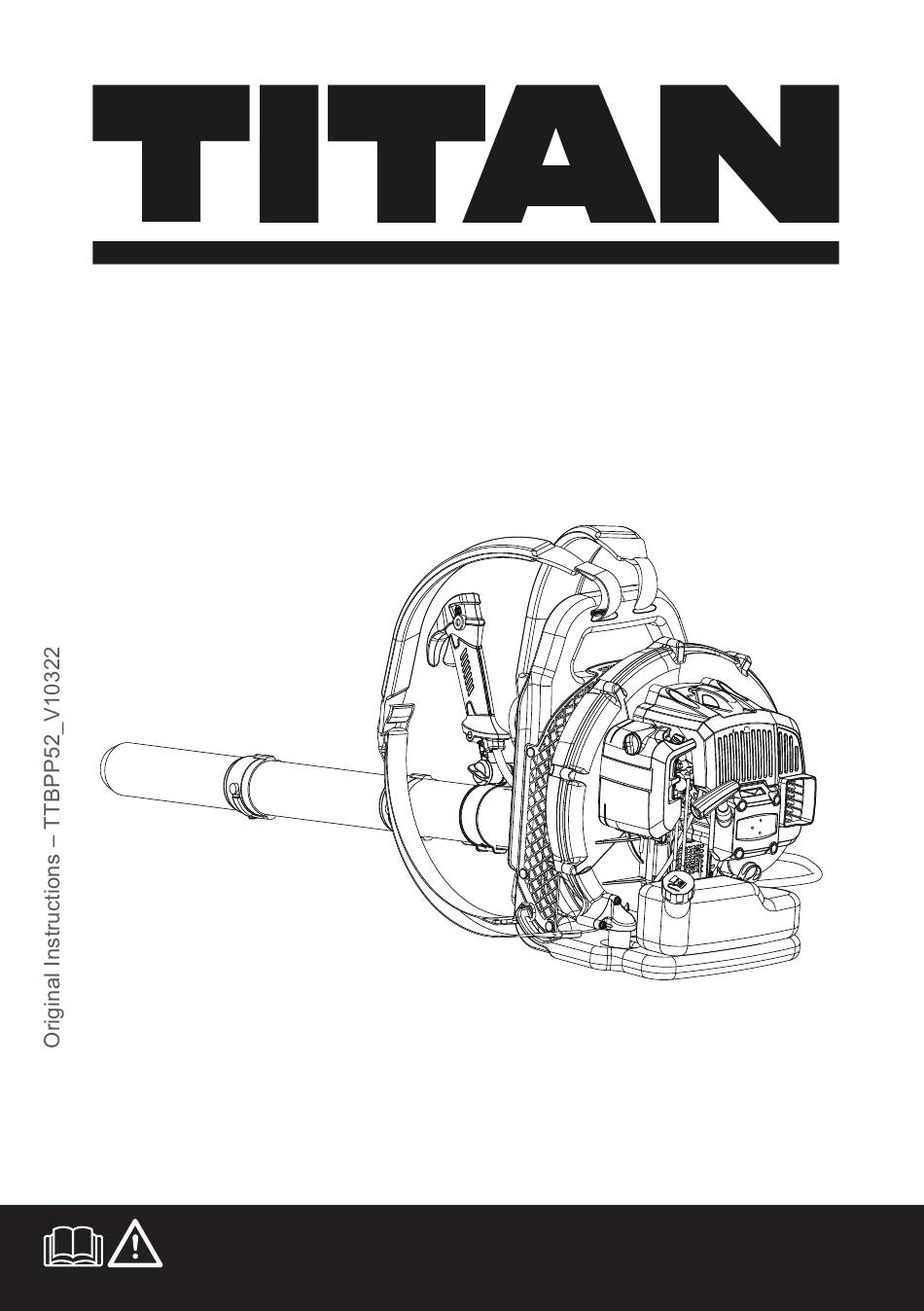

- Page 1 Backpack Blower (51.7 cm TTBPP52 EAN: 5059340256368 BX220IM/B3 WARNING: Read the instructions before using the machine!
-
Page 2: Table Of Contents
TTBPP52 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your machine Technical specifications Before start Quick start more detail... Machine functions Operation... - Page 3 Safety information TTBPP52 Safety warnings IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE > This machine is not intended for use by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. >...
- Page 4 Safety information TTBPP52 > Take extreme care in wet and freezing weather conditions. Do not work in rain, windy or stormy weather. > Wear a face and breathing mask. The use of this machine can generate exhaust gases, lubrication oil mist and dust containing chemicals known to cause respiratory damage.
- Page 5 Safety information TTBPP52 Fuel handling > Always switch the machine off, disconnect the spark plug connector and let the machine cool down before refuelling it. > Fuel vapour pressure may build up inside the fuel tank depending on the fuel used, weather conditions and the tank venting system.
-
Page 6: Getting Started
Safety information TTBPP52 Getting started > Do not operate the machine indoors. The machine produces poisonous exhaust fumes whilst the engine is running which may be colourless and odourless. > Do not wrap the recoil starter rope around your hand whilst starting the machine. -
Page 7: Safety Information
Safety information TTBPP52 > Do not operate the machine if you are tired or ill. > Do not operate the machine under the influence of drugs, alcohol or medication. > Use rakes and brooms to loosen debris before blowing. >... - Page 8 Safety information TTBPP52 Transport and storage > Stop the engine and let the motor come to a complete stop before transporting the machine. > Carry the machine with the engine stopped, the blower opening away from the body. > Allow the engine to cool before storing in any enclosure.
- Page 9 Safety information TTBPP52 Emergency Familiarise yourself with the use of this machine by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. > Always be alert when using this machine, so that you can recognise and handle risks early.
- Page 10 Safety information TTBPP52 Symbols On the machine, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Kilowatt Litre...
- Page 11 Safety information TTBPP52 Wear protective gloves (compliant to EN ISO 21420 Class 0) Do not expose the machine to rain or wet conditions. Open flames in the work area, around the machine and in the vicinity of flammable materials are prohibited!
- Page 12 Safety information TTBPP52 Choke lever – CHOKE position. Choke lever – RUN position. Primer Filling for fuel-oil mixture. Guaranteed sound power level value in dB. Designation of the tool TTBPP52 (TT_Brand Name; BP_Backpack Blower; P_Petrol power) The machine complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 13: Your Machine
Your machine TTBPP52 Your machine... -
Page 14: Technical Specifications
Your machine / Technical specifications TTBPP52 1. Harness 17. Front case 2. Back plate (with handle and padding) 18. Muffler 3. Volute case 19. Recoil starter handle 4. Elbow 20. Primer 5. Flexible hose 21. Air filter case 6. Control handle 22. - Page 15 Technical specifications TTBPP52 Sound emission level > Sound pressure level at operator position: 97.5 dB(A) > Uncertainty K: 3.0 dB(A) > Measured sound power level L 109.9 dB(A) > Uncertainty K: 3.0 dB(A) > Guaranteed sound power level L 113 dB(A) Vibration emission level >...
-
Page 16: Before You Start
Before you start TTBPP52 Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and protective shipping materials, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the machine and contact your dealer. - Page 17 Before you start TTBPP52 Assembly WARNING! The machine must be fully assembled before operation! Do not use a machine that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to assemble the machine easily! Disconnect the spark plug connector before assembly! Reconnect it after assembly (see "Maintenance").
- Page 18 Before you start TTBPP52 2. Align the recess on the blower tube (10) with the stud on the extension tube (9). Push and twist the blower tube (10) until the stud goes into the end of the recess. Tighten the screw on the blower tube (10) using the screwdriver (26) (Fig. 2).
- Page 19 Before you start TTBPP52 5. Loosen the thumb screw (29), then adjust the position of the control handle holder (12) and angle of the control handle (6) (Fig. 4). 6. Tighten the thumb screw (29) after adjusting the position and angle (Fig. 5).
- Page 20 Before you start TTBPP52 7. Hook the cable retainer (14) pre-assembled on the flexible hose (5) around the throttle cable (13) and the flexible hose (5) (Fig. 6). Filling up fuel and oil WARNING! This machine is not supplied with petrol-oil mixture in the engine!
- Page 21 Before you start TTBPP52 1. Place the machine on a stable, level surface with the fuel tank cap (24) facing upwards. We recommend laying a non-flammable sheet under the machine. 2. Pour a regular-grade unleaded petrol and a quality engine oil for air cooled 2-stroke engines in the supplied fuel mixing container (28) respectively via the 2 openings.
- Page 22 Before you start / Quick start TTBPP52 NOTE: Fuel and oil deteriorate over time. It may be difficult to start the engine if you use fuel which has been kept for more than 30 days. Towards the end of the season, it is advisable to put only as much fuel in the tank as you need for each use, since it should be completely used up before storing the machine.
-
Page 23: Quick Start
Quick start TTBPP52 Preparation Assemble Adjust Add fuel and oil mixture Starting cold engine Set the lever to the Press primer Set the choke lever Pull recoil starter Start (I) position 7 times to the CHOKE handle repeatedly position no more than 4... - Page 24 Intended use This 51.7 cm back-pack powered blower TTBPP52 is designated with a maximum power output of 1.6 kW. The machine is designed for single-handed operation. With the machine carrying as a backpack, operate with the right hand on the control handle.
-
Page 25: Machine Functions
Machine functions / Operation TTBPP52 Safety equipment NOTE: Always wear the harness (1) on your back when working with the machine. Never operate the machine while carrying it by the handle on the back plate (2). Always turn the machine off and wait until the engine stops completely before taking off the harness (1). - Page 26 Operation TTBPP52 > Use rakes and brooms to loosen debris before blowing. > Slightly dampen surfaces in dusty conditions. NOTE: In some countries regulations define at what time of the day and on what special days machines are allowed to be used and what restrictions apply! Ask...
- Page 27 Operation TTBPP52 Engine cold start 1. Set the setting/stop lever (7) to the Start (I) position (Fig. 10). 2. Press the primer (20) until the bubble is filled with fuel (max. 7 times) (Fig. 11). 3. Set the choke lever (22) to the CHOKE position (Fig.
- Page 28 Operation TTBPP52 Engine warm start 1. Set the lever (7) to the Start (I) position (Fig. 14). 2. Set the choke lever (22) to the RUN position (Fig. 15). 3. Pull the recoil starter handle (19) slowly until you feel a definite resistance and then give it a brisk, strong pull.
- Page 29 Operation TTBPP52 Blowing operation WARNING! Always wear safety glasses, ear protection and a face filter mask, serious personal injury may result. Do not point the tube in the direction of people or pets. WARNING! Always set the stop lever to the STOP position and let the motor come to a complete stop.
- Page 30 Operation TTBPP52 > Never operate the machine on a ladder or other unstable support. Do not work above shoulder height (Fig. 17). After use NOTE: After a long period of full speed operation, allow the engine to run for a while at idle speed so that the heat in the engine can dissipate by a flow of cooling air.
-
Page 31: Care And Maintenance
Care and maintenance TTBPP52 The golden rules for care WARNING! Always stop the engine, disconnect the spark plug connector and let the machine cool before performing inspection, maintenance and cleaning work. DANGER! Proper maintenance is essential for safe and trouble free operation. - Page 32 Care and maintenance TTBPP52 Removing blockages WARNING! Wear safety gloves when removing blockages! Use proper tools to remove debris, e.g. a wooden stick! Never use bare hands! Ensure the engine is off by setting the setting/stop lever (7) to STOP position before disconnecting the hose or tubes for any maintenance or for removing blockage.
- Page 33 Care and maintenance TTBPP52 Air filter Inspect the air filter regularly. Clean or replace it with a new one if necessary. 1. Unscrew the fixing nut on the cover of the air filter case (21). Remove the cover (Fig. 18).
- Page 34 Care and maintenance TTBPP52 Spark plug NOTE: For good performance, the spark plug must be properly gapped and free of deposits. Inspect the spark plug every 25 hours or before long-term storage over 30 days. Clean or replace with a new one if necessary (type: RCJ7Y/ L7RTC/ L8RTF/ BPMR7A).
- Page 35 Care and maintenance TTBPP52 1. Release the throttle trigger (8) and allow the engine to idle. 2. Turn the idle speed screw clockwise using a screwdriver (26) to increase engine speed if engine stalls or dies in idle mode (Fig. 20).
- Page 36 Care and maintenance TTBPP52 Muffler The muffler (18) attenuates exhaust noises and diverts exhaust gases away from the operator. Check the spark arrestor screen on the muffler (18) for damages or debris regularly. If it is necessary to clean, modify or replace the muffler (18), contact an authorised service centre or a similarly qualified person.
- Page 37 Care and maintenance TTBPP52 Anti-vibration dampers The anti-vibration dampers reduce the transmission of vibrations created by the engine to the operator’s back (Fig. 23). If it is necessary to replace the dampers, contact an authorised service centre or a similarly qualified person.
- Page 38 Care and maintenance TTBPP52 Spare parts/Replacement parts The following parts of this machine may be replaced by the consumer. Spare parts are available at an authorised dealer or through our customer service. Description Model no. or Specification Spark plug RCJ7Y/ L7RTC/ L8RTF/ BPMR7A (Gap of electrodes: 0.6-0.7 mm)
- Page 39 Care and maintenance TTBPP52 Long term storage NOTE: Risk of machine damage! > If you are not going to use the machine for a while, remove the fuel from the machine. This way, you will prevent a gumming-up of the engine and of the grease pump.
-
Page 40: Troubleshooting
Troubleshooting TTBPP52 Troubleshooting Suspected malfunctions are often due to causes that the operators can fix themselves. Therefore check the machine using this section. In most cases, the problem can be solved quickly. WARNING! Only perform the steps described in these instructions! All further... -
Page 41: Recycling And Disposal
Troubleshooting / Recycling and disposal TTBPP52 Problem Possible cause Solution Engine does Air filter is soiled? Clean the air filter. not reach Incorrect fuel or incorrect Stop the engine, empty tank, then fill the maximum mixture? up with the correct mixture of fuel to oil speed. -
Page 42: Guarantee
Guarantee TTBPP52 Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. -
Page 43: Declaration Of Conformity
UK declaration of conformity TTBPP52 (UK) DECLARATION OF CONFORMITY Product > Backpack blower > TTBPP52 > 51.7 cm , 1.6 kW/7000 min > 000001 - 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited... -
Page 44: Ec Declaration Of Conformity
EC declaration of conformity TTBPP52 (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Machine/Produit/Produkt/Produsul/Machineo/Produto > Backpack blower/ Backpack blower/ Backpack blower/ Backpack blower/ Backpack blower/ Backpack... - Page 45 EC declaration of conformity TTBPP52 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
- Page 46 EC declaration of conformity TTBPP52 Guaranteed Sound Power Level/ Le niveau de puissance acoustique garant/ Gwarantowany poziom mocy akustycznej/ Nivel de putere acustică garantat/ Nivel de potencia sonora garantizado/ Nível de potência sonora garantido: 113 dB (A) Engine Model/ Modèle de moteur/ Model silnika/ Modelul motorului/ Modelo de motor/ Modelo de motor:...
- Page 47 Manufacturer, Fabricant, Prodecent, Producător, Fabricante: UK Manufacturer: Kingfisher International Machines Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Machines B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/machines...
