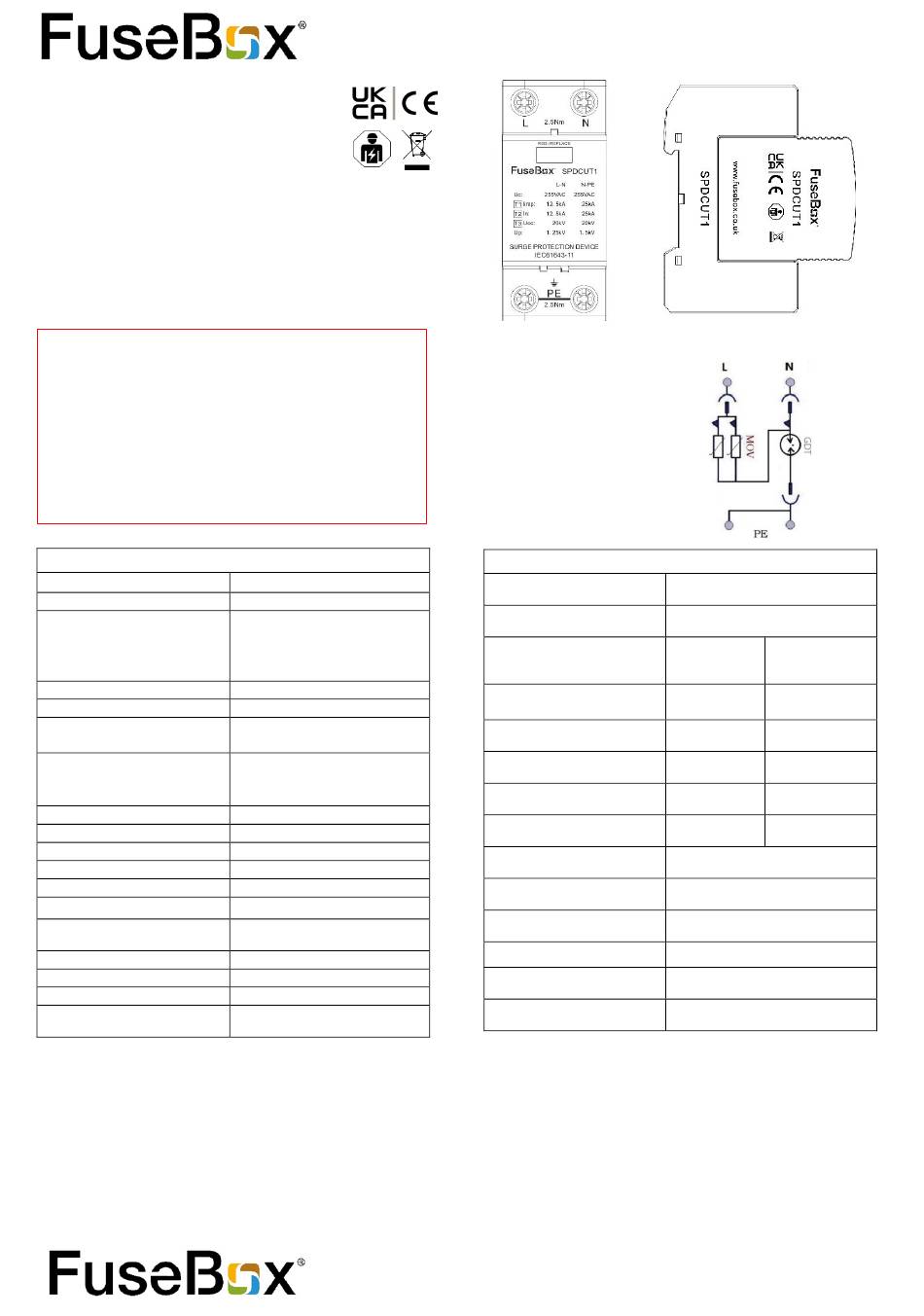

FuseBox SPDCUKITT1 Quick Start Manual

SPDCUKITT1
Part number:
T1,T2 & T3 SPD
Description:
T1, T2 & T3 combined Surge Protection Device (SPD) supplied
complete with 63A B Curve MCB and 16mm² connecting cables.
Type 1 SPDs shall be installed as close as possible to the origin of
the electrical installation (main distribution board) 534.4.1.1
This device must be installed and tested by a qualified electrician
in accordance with the current IET Wiring Regulations BS7671.
CAUTION
WHEN CONDUCTING INSULATION RESISTANCE TESTING WITH SPD
FITTED IT IS RECOMMENDED EITHER THE EARTH CONNECTION OR THE
PLUG IN CARTRIDGE IS REMOVED.
IF YOU DO NOT WISH TO REMOVE THE CARTRIDGE OR EARTH
CONNECTION, THEN TESTING MUST BE AT A MAXIMUM OF 250V DC.
Before powering up the installation check all connections are
TORQUED 2.5Nm. Loose connections cause fires!
TECHNICAL
(TABLE A)
PART NUMBER
BARCODE
DESCRIPTION
WIDTH
STANDARD
FLAG INDICATION
TECHNOLOGY
VOLTAGE (Un)
SYSTEM
TERMINAL CAPACITY (max.)
RECOMMENDED TORQUE
DEGREE OF PROTECTION
MOUNTING
MAXIMUM OPERATING
VOLTAGE (Uc)
RESPONSE TIME (tA)
MAXIMUM BACK UP FUSE
RECOMMENDED BACKUP MCB
SHORT CIRCUIT WITHSTAND
(ISccR)
SPDCUKITT1
5060523524754
SURGE PROTECTION DEVICE T1
T2 + T3 (1+ N-PE) 36mm
Includes 63A B TYPE MCB and
cables (16mm²)
36mm (2 module)
IEC/EN 61643-11
GREEN: GOOD
RED: REPLACE
MOV (METAL OXIDE
VARISTOR) L -PE /GDT (SPARK
GAP) N - PE
230V~ 50/60Hz
TN-C-S, TN-S, TT
6mm² - 35mm²
2.5Nm
IP20
(to
35mm DIN RAIL EN 60715)
255V
≤100nS
160A fuse gG
63A
50kA
TECHNICAL
(TABLE B)
Lighting impulse current
(10/350µS) (L + N-PE) (Itotal)
Specific energy (L + N-PE)
(W/R)
Max. continuous operating
voltage (AC) (Uc)
Lighting impulse current
(10/350µS) L-N / N-PE (Iimp)
Specific energy L-N /N-PE
(W/R)
Nominal discharge current
(8/20µS) L-N /N-PE (In)
Voltage protection level
L-N /N-PE (Up)
Temporary overvoltage (TOV)
L-N (UT)
Temporary overvoltage (TOV)
L-N (UT)
Voltage protection level L-PE
(Up)
Operating temperature range
Material (housing)
Weight (Kg)
After installation and testing of this product it is essential
that the INSTRUCTION LEAFLET is available for reference.
www.fusebox.co.uk
25kA
156.25KJ/ohms
L-N MOV N-PE GDT
(Varistors) (Spark gap)
255V 255V
(50/60Hz) (50/60Hz)
12.5KA 25KA
39.06KJ/ohms 156.25KJ/ohms
12.5KA 25KA
<1.25KV <1.5KV
440V/12 min-- withstand
1200V/200ms - withstand
2.0kV
-40〬C +80〬C
Thermoplastic UL94 V0 (Black)
0.043
