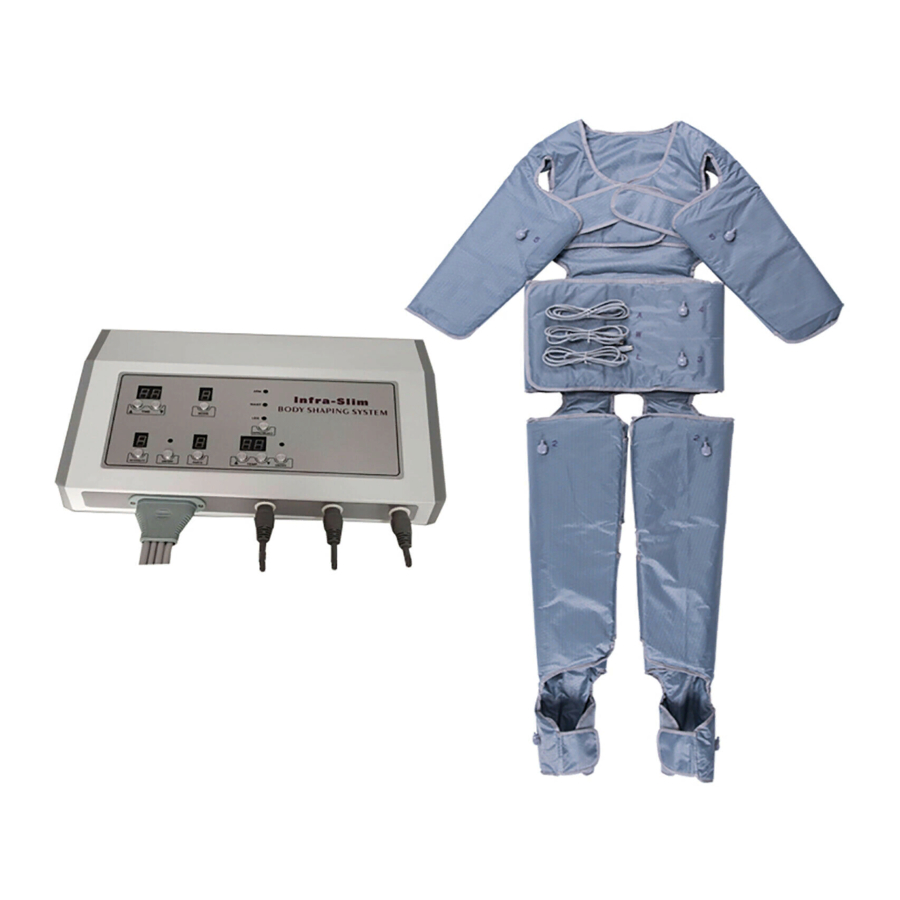

- Page 1 Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Dear Customer, Many thanks for purchasing our product,please kindly read the manual instructions carefully and operate the system in the correct way.
-
Page 2: Working Principle
Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Working Principle This system combines functions of infrared heat and Airpressure massage therapy. Airpressure therapy is also called presstherapy that aims to massage the whole body so that to promote blood circulation、eliminate body muscle tiredness、tighten skin and improve body metabolism.Infrared heating further helps speeding up body discharge... -
Page 3: Panel Introduction

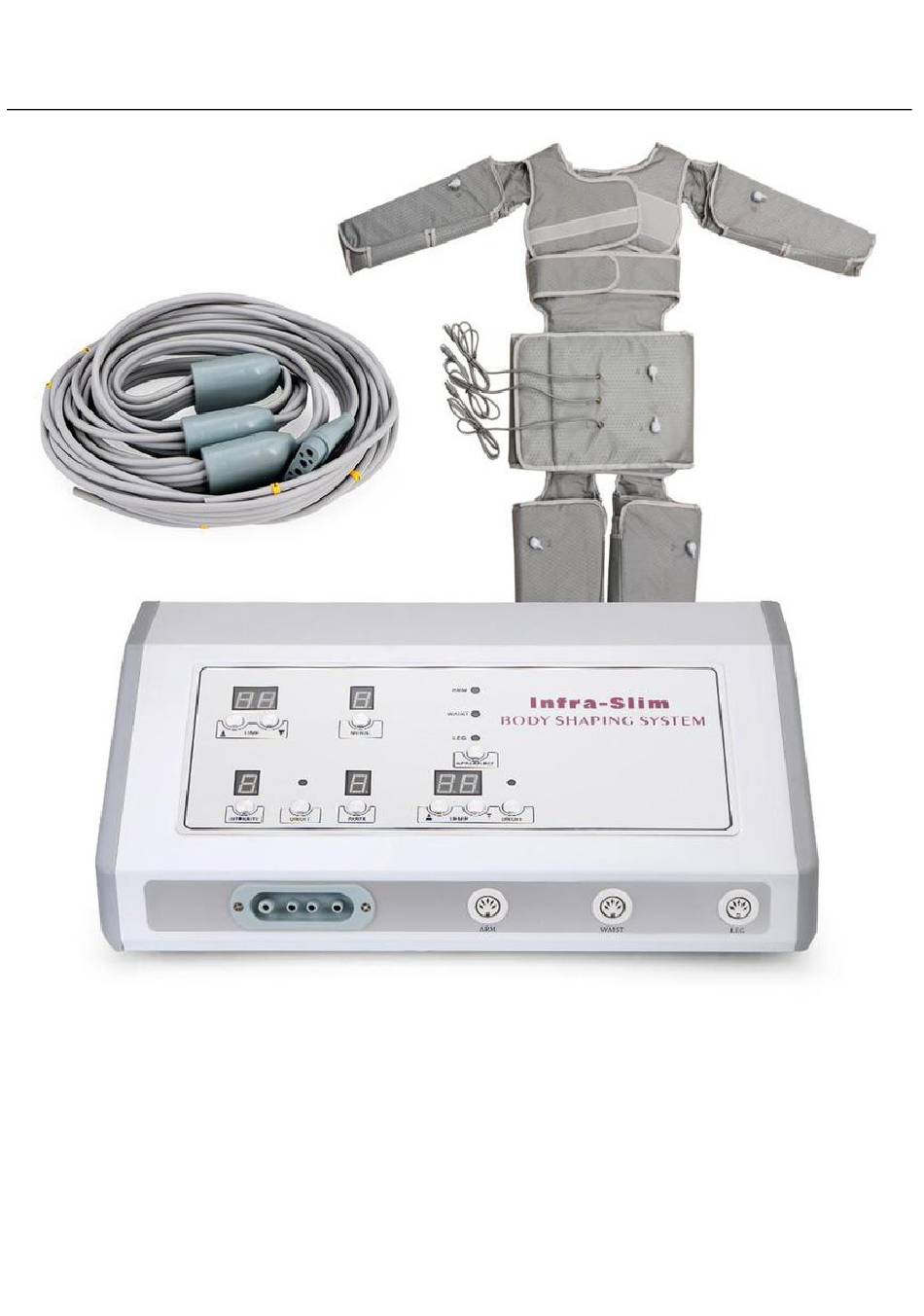

Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Panel Introduction 1.TIMER 2,3.TIME UP/DOWN 4.AirPressure INTENSITY 5.INTENSITY select 6.Airpressure ON/OFF 7.Massage PARTS 8.PARTS select 9.MODE select 10.Massage Mode 11,12.Temp. UP/DOWN 13.Infrared Heat ON/OFF 14.Temperature Display 15.Infrared Heat select 16.LEGS heating 17.WAIST heating 18.ARMS heating... - Page 4 Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Outlets Introduction 1.Airpressure outlet 2.ARMS Infrared Heat output 3.WAIST Infrared Heat output 4.LEGS Infrared Heat output Operation Steps of Airpressure Step 1: Connect well airpipes to the machine and costume. Step 2: Connect the power cord,then press power switch to turn on the machine.
- Page 5 Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Choose 2 –Massage the WAIST. Choose 3- Massage the ARMS. Choose 4-Massage the whole body circularly Step 5: Choose massage MODE The airpressure squeezes 2 seconds,then relieves 1 second. The airpressure squeezes 4 seconds,then relieves 1 second.
- Page 6 Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Operation Steps of Infrared Heat 1. Connect costume to the controller. If shows EO on the controller,it means the wrong connection, temperature can not be set. 2. Set TIME using the▲and▼arrows. When the controller is turned on, the default time is 30 minutes.
-
Page 7: Operation Considerations
Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Operation Considerations Do not use the system in places with strong static and magnetic fields. Do not contact with rain or liquid. Must be well grounded before use in case of lightning strike. - Page 8 Infra-Slim BODY SHAPING SYSTEM Manual Instrucitons Technical Parameter Voltage Supply AC220V-240V/50Hz or AC100-110v/60Hz Power Supply 400W Max Time 90 minutes Temperature Range 35° C to 80° C,optional AirPressure INTENSITY 1-7 levels,adjustable Massage PARTS LEGS、FEET、WAIST、ARMS Heating PARTS BACK、ARMS、WAIST、LEGS、FEET Massage Mode 1，2，3，4，5，6 Gross Weight 14.5KGS(All accessories included)
