Summary of Contents for DAPAudio MP-100DBT

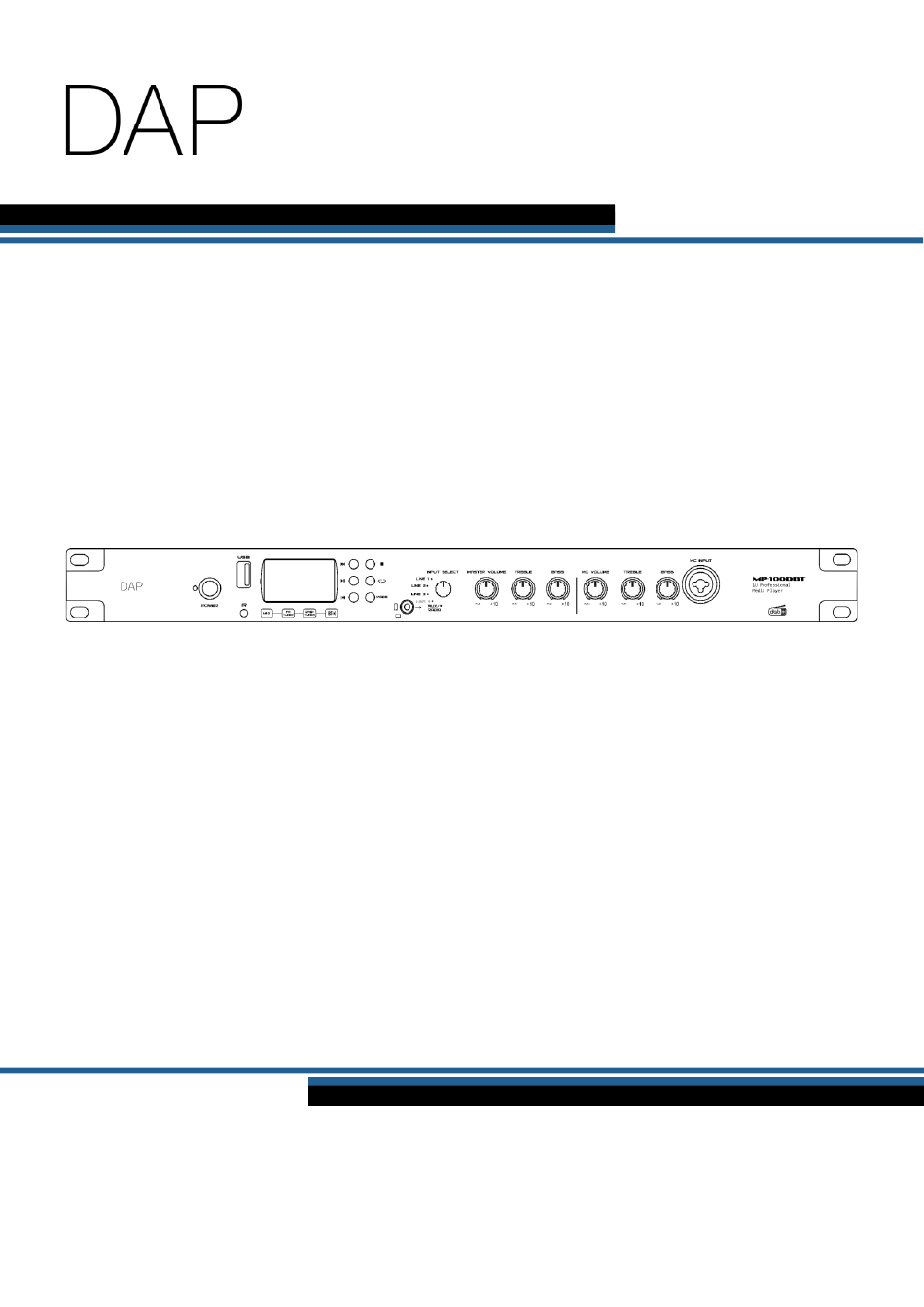

- Page 1 USER MANUAL ENGLISH MP-100DBT Product code: D1246 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 MP-100DBT Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
MP-100DBT Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................6 Warnings and Safety Instructions ........................6 Requirements for the User .......................... - Page 4 MP-100DBT Backlight ..............................24 Language ............................24 Factory Reset ............................24 Software Version ..........................24 Adjusting Bass/Treble/Volume ........................25 Setting Device Volume ...........................25 Adjusting the Microphone Settings .......................25 Remote Control ..............................26 Installation of the Batteries ........................26 Remote Control Functions ........................27 Troubleshooting ..............................28 Maintenance ..............................28 Safety Instructions for Maintenance ......................28...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP MP-100DBT ● Schuko to IEC power cable (1,3 m) ● DAB+/FM antenna ●... -
Page 6: Symbols And Signal Words
MP-100DBT Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
MP-100DBT Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... -
Page 8: Requirements For The User
MP-100DBT Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device. -
Page 9: Description Of The Device

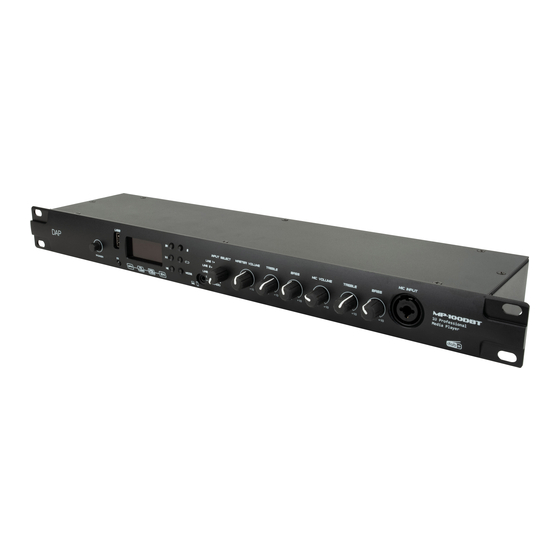

MP-100DBT Description of the Device The MP-100DBT is a media player. It can be installed in a standard 19-inch rack. It supports multiple (wireless) media sources, such as: DAB+, FM radio, AUX in/out and Bluetooth. The device can be operated manually or with the supplied IR remote control. -
Page 10: Product Specifications
MP-100DBT Product Specifications Model: MP-100DBT Electrical: Input voltage: 220–240 V AC, 50 Hz Power consumption: 96 W Playback: Supported audio files: WAV, FLAC, MP3 USB flash drive: USB-A, < 32 GB, FAT32-formatted Outputs: Main outputs: Inputs: Stereo inputs: Mono inputs:... -
Page 11: Dimensions
MP-100DBT Dimensions Fig. 04 Installation and Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Safety Instructions for Installation Attention Make sure there is enough space for ventilation around the device. -
Page 12: Rack Mounting
MP-100DBT Rack Mounting The device can be mounted in a standard 19-inch rack. The device requires 1 rack unit (U) of space, which is 44,5 mm high. Make sure that the rack is sufficiently secured to prevent it from becoming unstable or falling over. -
Page 13: Setup Example
MP-100DBT Set your preferred language and adjust other settings. See 5.3. Settings Menu on pages 22–24 for more information. Switch on the speakers. Select functions. See 5.2. Functions on pages 14–21 and 5.7. Remote Control on pages 26–27 for more information. -
Page 14: Switching On/Off
MP-100DBT Switching On/Off The device has a power button. ● Press the power button (03) to switch on the device. If the power LED indicator (Blue) (02) is on, the device is powered. ● Release the power button (03) to switch off the device. -
Page 15: Operation
MP-100DBT Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for use as a professional media player. It is suitable only for indoor installation. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 16: Fm Radio Mode
MP-100DBT FM Radio Mode In this menu you can search for FM radio stations, select them and listen to them. If needed, you can manually tune the radio stations and save presets. Press the MODE button (F) until the display shows: Auto Scan In this menu you can search for available FM radio stations. -
Page 17: Selecting Radio Stations
MP-100DBT Selecting Radio Stations In this menu you can select the saved FM presets. Press the REPEAT button (E). The display shows: Press the VOLUME +/FORWARD button (B) and the VOLUME –/BACKWARD button (G) to select one of the saved FM presets. -
Page 18: Aux Mode
MP-100DBT Aux Mode In this menu you can play music files from the audio devices connected to the Balanced 3,5 mm TRS jack connector AUX IN (07) or to the (Line 1–4) RCA analog line-level connectors IN (16). Press the MODE button (F) until the display shows: Turn the input selector (08) to activate a desired input. -
Page 19: Selecting Radio Stations
MP-100DBT Selecting Radio Stations In this menu you can select the found DAB+ radio stations. Press the VOLUME +/FORWARD button (B) and the VOLUME –/BACKWARD button (G) to select one of the found DAB+ radio stations. The display shows: Press the PLAY/PAUSE button (D) to confirm. The device will activate the selected DAB+ radio station. -
Page 20: Selecting Presets
Press the MODE button (F) until the display shows: For this function to work, you need to pair your mobile device and the MP-100DBT via Bluetooth. Note: Bluetooth can only be used as a means to receive wireless audio signals. It is not possible to pair the device with other devices via Bluetooth. -
Page 21: Usb Mode
To use the device in the Bluetooth mode: Start Bluetooth on your mobile device. On your mobile device scan for the available Bluetooth devices. The ID of the MP-100DBT is “BLUETOOTH”. Pair your mobile device with the MP-100DBT. The display shows: On your mobile device, search for and play any music/video file or visit streaming services. -
Page 22: Playback
MP-100DBT Playback Use the PLAY/PAUSE button (D) to start or pause playback. ● Press the PLAY/PAUSE button (D) to play the currently selected file. ● Press the PLAY/PAUSE button (D) again to pause the playback. Select Previous/Next File Use the VOLUME +/FORWARD button (B) and the VOLUME –/BACKWARD button (G) to select files backward/forward. -
Page 23: Settings Menu
MP-100DBT Settings Menu This menu contains all settings and device information. Press and hold down the STOP button (C) for 2 seconds to enter the menu. The display shows: The settings menu is visible in the bottom line of the display. -
Page 24: Manual Tune
MP-100DBT Manual Tune In this submenu you can manually search for DAB+ radio stations. If the signal quality of a DAB+ radio station is too low, that radio station will not be found in an auto scan. If you know the exact Band III DAB+ channel (5A–13F) assigned to that radio station, you can find it manually. -
Page 25: System
MP-100DBT System In this menu you can adjust the system settings. This menu is visible in all functions. You can adjust the display settings, set language, restore default factory settings or view the firmware version. Press the VOLUME +/FORWARD button (B) and the VOLUME –/BACKWARD button (G) to select one of the 4 submenus: ●... -
Page 26: Adjusting Bass/Treble/Volume
MP-100DBT Adjusting Bass/Treble/Volume Turn the master volume control (09) to the left/right to decrease/increase the master volume. The adjustment range is from –∞ to +10 dB. This setting affects the overall volume of all outputs. Turn the treble level control (10) to the left/right to decrease/increase the treble level. The adjustment range is from –∞... -
Page 27: Remote Control
MP-100DBT Remote Control The device can be controlled with an IR remote control. The remote control is included in the delivery. Installation of the Batteries The supplied remote control is delivered without batteries. It accepts 2 x AAA 1,5 V (alkaline) batteries. -
Page 28: Remote Control Functions
MP-100DBT Remote Control Functions Button Description Function On/Off Switches stand-by mode on/off Toggle Toggle functions ● Press to select presets (FM/DAB+) ● Press and hold down for 2 seconds to save presets (FM/DAB+) ● Press to stop playback (Bluetooth/USB) ●... -
Page 29: Troubleshooting
MP-100DBT Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. Refer servicing to instructed or skilled persons. -
Page 30: Basic Cleaning Instructions
MP-100DBT Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for 5 minutes. 03) Clean the device with a soft, lint-free cloth. Attention ●... -
Page 31: Disposal
Approval Hereby, Highlite International declares that the device MP-100DBT, product code D1246, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available at the respective product page on the website of Highlite International (www.highlite.com). - Page 32 ©2022 DAP...
