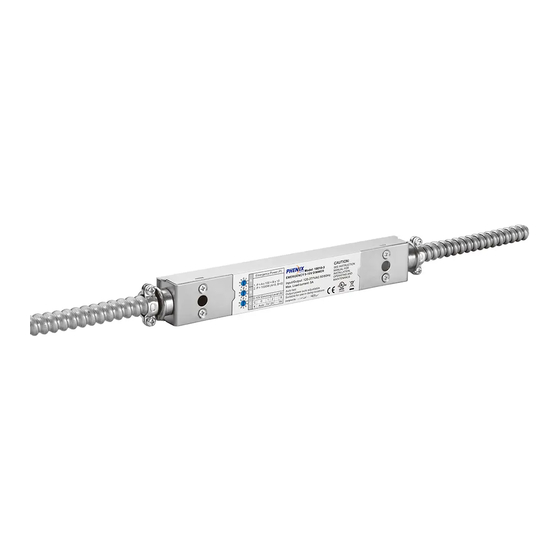

Phenix 18010-X Instruction Manual

Dimmable emergency lighting control device
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
18010-X
INSTRUCTION MANUAL
DIMMABLE EMERGENCY LIGHTING CONTROL DEVICE
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To reduce the risk of electrical shock, disconnect all power sources before servicing.
2. This product requires an unswitched AC power supply of 120-277V, 50/60Hz.
3. This product is for use with generator or inverter supplied emergency lighting operating with auto
or preset 0-10V dimming level. Make sure all connections are in accordance with the National or
Canadian Electrical code and any local regulations.
4. This product is UL Listed for factory or field installation, and use with grounded.
5. This product is suitable for use in dry or damp locations. This product is also suitable for
installation in sealed and gasketed junction box or fixtures. Do not mount in near gas, heaters,
air outlets or other hazardous location.
6. Use this product in -20°C minimum, 65°C maximum ambient temperatures (Ta).
7. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition and void warranty.
8. Do not use this product for other than intended use.
9. Installation and service should be performed by qualified service personnel.
10. This product should be mounted in locations and at heights where it will not readily be subjected
to tampering by unauthorized personnel.
WWW.PHENIXLIGHTING.COM
SAVE THIS INSTRUCTIONS
27E21
E308866

Advertisement

loading
Need help?

Need help?

Do you have a question about the 18010-X and is the answer not in the manual?

Questions and answers

Summary of Contents for Phenix 18010-X

  • Page 1 18010-X INSTRUCTION MANUAL 27E21 DIMMABLE EMERGENCY LIGHTING CONTROL DEVICE E308866 IMPORTANT SAFEGUARDS WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING READ AND FOLLOW ALL SAFETY INSTRUCTIONS 1. To reduce the risk of electrical shock, disconnect all power sources before servicing.

  • Page 2: Installation

    2. P = 1000W (A=0, B=0) 0-10V Dimming Level (K) Auto 2. INSTALLING THE 18010-X The 18010-X can be mounted inside or outside the junction box or luminaire. INSIDE THE JUNCTION BOX OUTSIDE THE JUNCTION BOX LED test switch LED test switch...
  • Page 3 1. The 18010-X requires an unswitched AC power supply of 120-277 volt, 50/60Hz. 2. Ensure the input current of the 18010-X does not exceed 5A. The total power of 0-10V dimmable load does not exceed 600W @120V and 1385W @277V.
  • Page 4 WIRING EMERGENCY POWER SUPPLY BY GENERATOR OR CENTRAL INVERTER AC DRIVER / BALLAST AC DRIVER / BALLAST GROUND Dim in 0-10 VDC EMERGENCY UL1008 DIMMER N out Dim in/out POWER TRANSFER SWITCH NEUTRAL L out Dim out NEUTRAL 18010-1 N in Optional 24 VDC Fire Fire Alarm Override...
  • Page 5 DIMENSION M (Mounting) Item No. mm [inch] mm [inch] mm [inch] mm [inch] 18010-1 153 [6.02] 143 [5.63] 30 [1.18] 22 [0.87] M (Mounting) Item No. mm [inch] mm [inch] mm [inch] mm [inch] 18010-3 211 [8.31] 162 [6.38] 30 [1.18] 22 [0.87] LED TEST SWITCH T=5 [0.20]...

  • Page 6: Operation / Testing / Maintenance

    OPERATION / TESTING / MAINTENANCE OPERATION The 18010-X dimmable emergency lighting control device can work in conjunction with both an auxiliary generator or a central inverter system and single inverter to power existing fluorescent or LED fixtures for emergency lighting at full or reduced illumination with designed or preset dimming level regardless of the wall switch position or normal dim setting.
