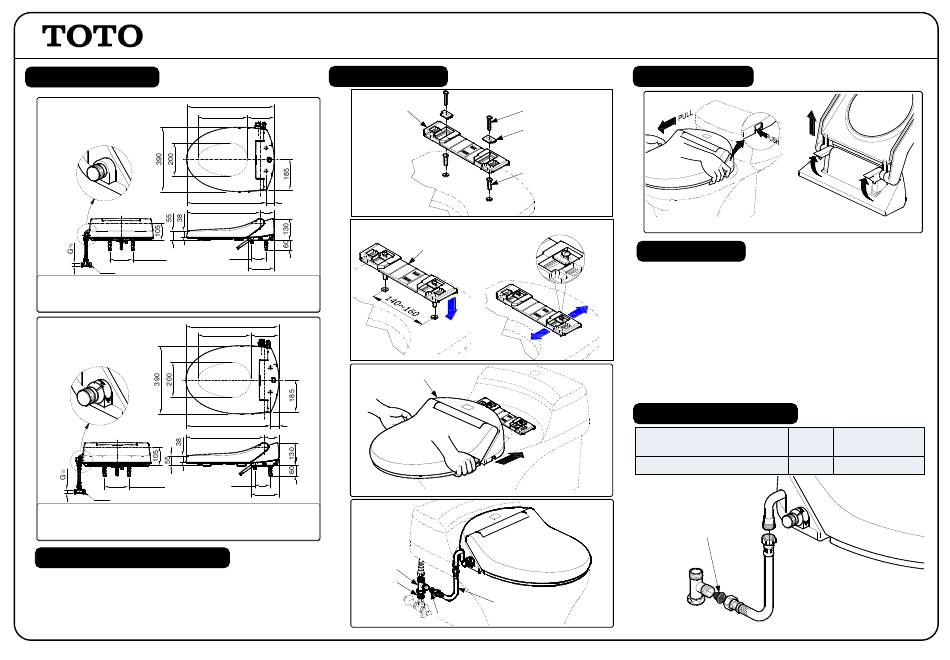

Toto TCW03S Quick Start Manual

SPECIFICATIONS
140~160
G½
TCW03S

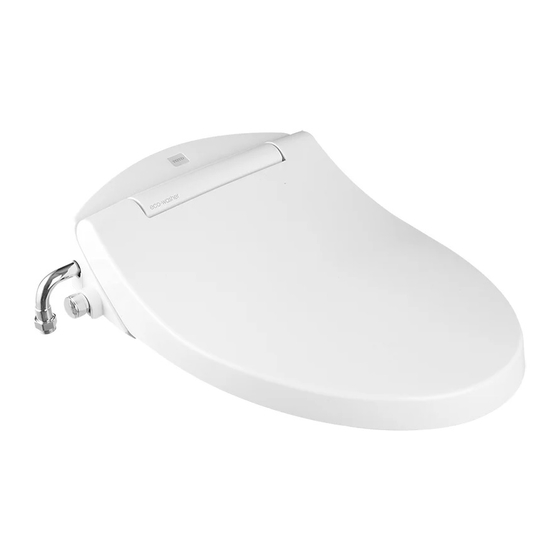

Eco-Washer Elongated, Soft Closing (Short Elbow)
TCW03SL
Eco-Washer Elongated, Soft Closing (Long Elbow)
140~160
G½
TCW04S
Eco-Washer W/Bidet Function, Elongated, Soft Closing (Short Elbow)
TCW04SL
Eco-Washer W/Bidet Function, Elongated, Soft Closing (Long Elbow)
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.5 MPa .
NOTE: Water supply pressure
Regulator is not needed.
2.
Ensure that water supply is clean ( No Sand, Dirt, Etc )
S06553RR
INSTALLATION
1
531
Base
300 162
Plate
+26 +5
477 54
-5 -26
446 85
2
+26
88
-5
160
531
300 162
3
eco-washer
+26 +5
477 54
-5 -26
446 85
+26
88
-5
160
4
T- Joint
Packing
MPa, Flow
ECO - WASHER TCW03S / TCW04S
Bolt
Washer
Rubber
Bushing
Adjustment back and front.
Base
plate
Hose
Strainer
MAINTENANCE
 
You can remove the eco-washer when cleaning the toilet
DAILY CARE
Cleaning the main unit, toilet seat and lid.
Wipe the components with a soft damp cloth.
* Wet and wring out a soft cloth for wiping the surface of the
component
Cleaning very dirty components.
* Wet a soft cloth with diluted dish detergent and wipe down
the component surfaces.
* Then wipe off the detergent solution with a damp cloth.
If toilet bowl cleaner gets on the plastic components.
* Wipe down the component surface with a wet cloth and wipe
dry
TROUBLESHOOTING
CHECK
PROBLEM
POINT
1
Unsatisfactory spray
1. STRAINER
SOLUTION
Remove & clean
R8
