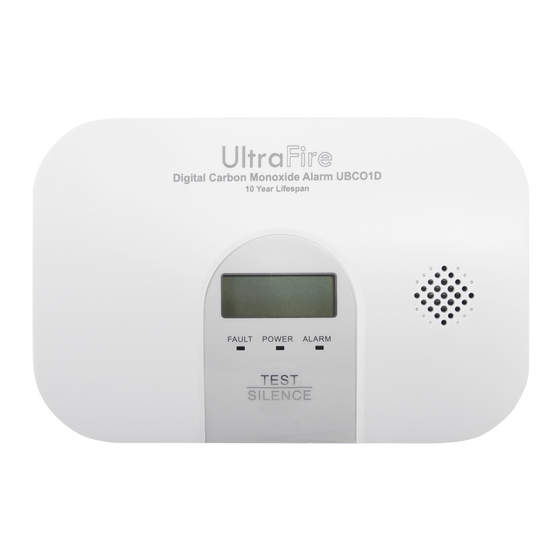

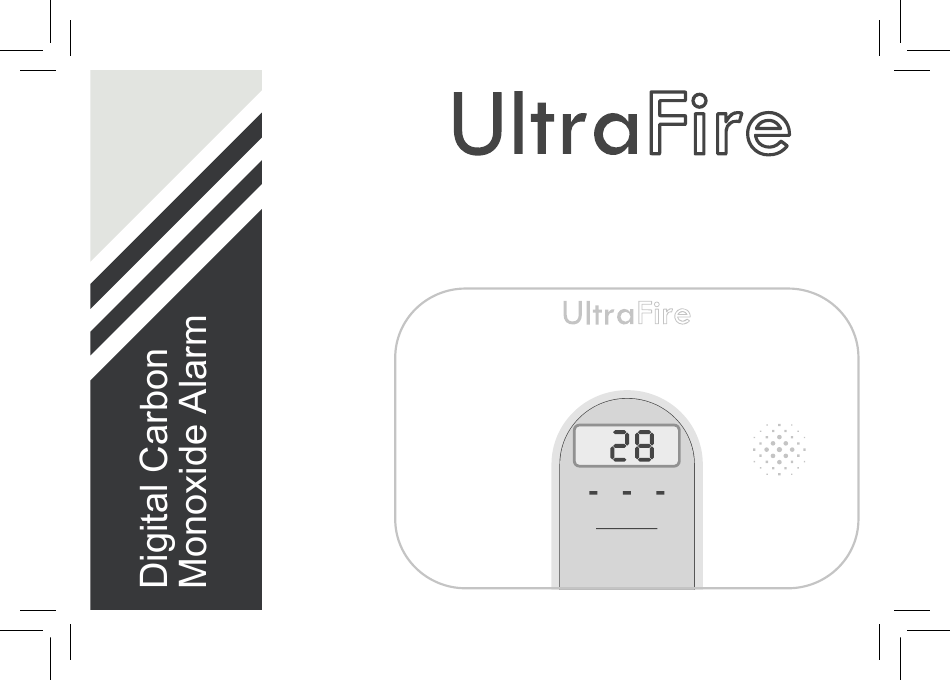

- Page 1 USER MANUAL UBCO1D CARBON MONOXIDE ALARM Digital Carbon Monoxide Alarm UBCO1D 10 Year Lifespan FAULT POWER ALARM TEST SILENCE...
-
Page 2: Table Of Contents
Index Product Specification..................3 - 4 Suitability......................5 Carbon Monoxide (CO) Information..............6 - 7 Digital Display....................Alarm Memory....................Alarm Silence Mode..................Do Not Disturb Mode..................Alarm Signals....................Status Indicators....................Positioning......................14 - 16 Installation......................16 - 18 Maintenance...................... 19 - 22 Troubleshooting.................... - Page 3 Overview This carbon monoxide (CO) alarm is a detection and alarm device which gives off an audible and visual warning when it detects the presence of carbon monoxide at certain levels over time. The digital display on the alarm shows the current CO reading, the ambient temperature (while CO is under 20ppm), alarm status, and a low battery icon as appropriate.
-
Page 4: Product Specification
Product Specifications • Sensor Type: electrochemical • Operating Current: • Battery Specification: ◦ Standby: <20μA ◦ Voltage: DC 3V ◦ Alarm: <50mA ◦ Type: 2x alkaline AA • Alarm Volume: ≥85dB at 3m ◦ Recommended: GP GN15A or Energizer • Alarm Response Times: ◦... -
Page 5: Suitability
Suitability This carbon monoxide alarm is designed for indoor home use ONLY. • DO NOT expose to rain or moisture • DO NOT knock or drop the detector • DO NOT open or tamper with the alarm as this could cause malfunction It is NOT suitable for use when traveling or camping, installing in caravans, motorhomes, or boats. -
Page 6: Carbon Monoxide (Co) Information
This apparatus is not designed to protect individuals from the acute or chronic effects of carbon monoxide exposure. It will not fully safeguard individuals at special risk or with specific medical conditions. If in doubt, consult a medical practitioner. Carbon Monoxide (CO) Information Carbon monoxide is a colourless, odourless, tasteless gas produced during inefficient or incomplete burning of fuels such as wood, coal, oil, and gas. - Page 7 The following are common symptoms related to carbon monoxide poisoning, based on healthy adults, and should be discussed with all members of the household: • Mild Exposure: Slight headache, nausea, vomiting, fatigue (often described as “Flu- like” symptoms). • Medium Exposure: Severe throbbing headache, drowsiness, fast heat rate. •...
-
Page 8: Digital Display
Digital Display This carbon monoxide alarm is equipped with an LCD digital display to provide advanced feedback including current carbon monoxide readings, silence status, and low battery status. There is also a temperature sensor feature for comfort and convenience. When batteries are installed and the device powers up, the display will activate all segments and icons for 4 seconds before resetting to show a countdown in conjunction with LED indicator lights flashing as in the Status Indicators section of this manual. -
Page 9: Alarm Memory
Alarm Memory If the alarm detects dangerous levels of carbon monoxide which then drop below the activation threshold without the alarm being manually silenced, the alarm will remember this for up to 48 hours and alert the user. This is especially useful for identifying that a fuel burning appliance which leaks CO intermittently while the building is unoccupied is faulty and gives off CO. -
Page 10: Alarm Silence Mode
Alarm Silence Mode WARNING: Before silencing an active alarm, it should be assumed that the alarm is due to dangerous levels of carbon monoxide and the dwelling should be evacuated. When in alarm mode, pressing the TEST/SILENCE button will pause the alarm sound for approximately 10 minutes. -
Page 11: Do Not Disturb Mode
Do Not Disturb Mode s due WARNING: Do not ignore any fault indication; please refer to the relevant guidance later in this manual depending on the fault being indicated. nd for When the alarm is indicating any fault, low battery, or end of life warning (see the Status ndicate Indicators section) it can be silenced for up to 9 hours by pressing the TEST/SILENCE button. -
Page 12: Alarm Signals
Alarm Signals Alarm Test 1. Chirp 4 times with red 1. Chirp 4 times with red LED flash LED flash 2. Pause 5s 2. Pause 5s 3. Repeated unit it stops 3. Repeated with all detecting CO. segments of the display active until the button is released The first 2 cycles are at a lower volume to avoid startling occupants. -
Page 13: Status Indicators
Status Indicators • After inserting the batteries, all three LEDs and all segments of the display will light up briefly and the alarm will beep. The green LED will then flash once per second for 60 seconds and the digital display will count down to 0, then transition to normal operation. •... - Page 14 Positioning When choosing your installation locations, make sure you can hear the alarm from all sleeping areas. Carbon monoxide alarms should be fitted in any room with a fuel burning appliance. Legally, this is required for solid fuel appliances in England and Wales and for all fuel burning appliance in Scotland and Northern Ireland, excluding cookers.
-
Page 15: Positioning
Positioning • It is recommended that at least one CO alarm be installed on each floor of a multistorey home. • When installing near fuel burning appliances, position 1 to 3 metres (3.3 to 10 feet) horizontally from each appliance. •... - Page 16 Positioning • Keep the CO alarm away from excessive exposure to dust, dirt, chemicals, or grease. Units placed in kitchens, garages, boiler rooms and similar locations should be cleaned regularly. Dust, grease and household chemicals can affect the sensor. • Keep out of damp and humid areas such as bathrooms. Avoid spraying aerosols near the CO alarm.
-
Page 17: Installation
Installation Test the unit by using the TEST/SILENCE button. Ensure the alarm sounds correctly as in the Alarm Signals section. Check the desired installation position for wires, pipes or other obstructions that would be dangerous to drill into. Hold the baseplate against the ceiling at the desired installation position. Mark the installation holes with a pencil (52mm between the centres of the two holes). - Page 18 Installation distance: 52mm holes of the wall plastic stopper...
-
Page 19: Maintenance
Maintenance Testing The carbon monoxide alarm should be tested weekly to ensure proper operation. Hold the TEST/SILENCE button for at least 10 seconds. The alarm will sound 4 quick beeps in conjunction with the red LED flashing followed by 5 seconds of silence, repeating until the TEST/SILENCE button is released. - Page 20 Care & Cleaning Do not paint, spray or cover the carbon monoxide alarm. Remove the alarm from the wall and vacuum with a soft brush attachment once per month to remove dust and dirt. Do not use detergents or other solvents, or attempt to dismantle the alarm to clean inside.
- Page 21 Battery Replacement To install or replace the battery in unit, please perform the following steps: 1. Remove the alarm from the wall. 2. Remove the back cover to open the battery compartment. 3. Remove the old batteries and insert the new batteries. a.
- Page 22 WARNING: Use only the batteries specified in the Product Specification section of this manual. The use of different battery may have a detrimental effect on the CO alarm. WARNING: Your CO alarm will not be operational and will not monitor for CO levels without batteries.
-
Page 23: Troubleshooting
Troubleshooting Problem Action The green LED power indicator is not flashing Follow the guidance in the Maintenance > every 40 seconds. Battery Replacement section of this manual. Alarm does not sound when tested. If the problem persists, contact the retailer if still under warranty or otherwise replace the alarm The alarm will chirp once every 40 seconds in immediately. -
Page 24: What To Do If The Alarm Sounds
Problem Action The red LED alarm indicator is flashing but the The alarm detected dangerous levels of CO alarm is silent and a crossed-out speaker symbol which have since dissipated within the last 48 is NOT on screen. hours. Follow instructions in the What to Do if The Alarm Sounds section of this manual The screen will display “Al”... - Page 25 2. Calmly move to fresh air as quickly as possible, opening doors and windows as you pass them. a. Follow your personalised Escape Plan as discussed with all occupants if possible. b. Do not stop to collect any belongings. 3. Meet at a pre-arranged meeting place outside the building if there are multiple occupants, and check if anyone is missing, but do not re-enter the premises.
-
Page 26: Warranty Information
Safelincs hereby warrants that during the warranty period, commencing from the date of purchase, Safelincs, at its discretion, agrees to repair or replace the unit free of charge. The warranty on any replacement alarm will last for the remainder of the period of the original warranty in respect of the alarm originally purchased –... - Page 27 This warranty does not affect your statutory rights. Except for death or personal injury, Safelincs shall not be liable for any loss of use, damage, cost or expense relating to this product or for any indirect, or consequential loss, damages or costs incurred by you or any other user of this product.
-
Page 28: Contact Information
Contact Information 33 West Street, Alford, Lincolnshire, LN13 9FX, United Kingdom 0800 978 8262 support@ultra-fire.co.uk www.ultra-fire.co.uk... - Page 29 Notes © 2022 Safelincs All Rights Reserved DOC 1511 Version 1.2...
