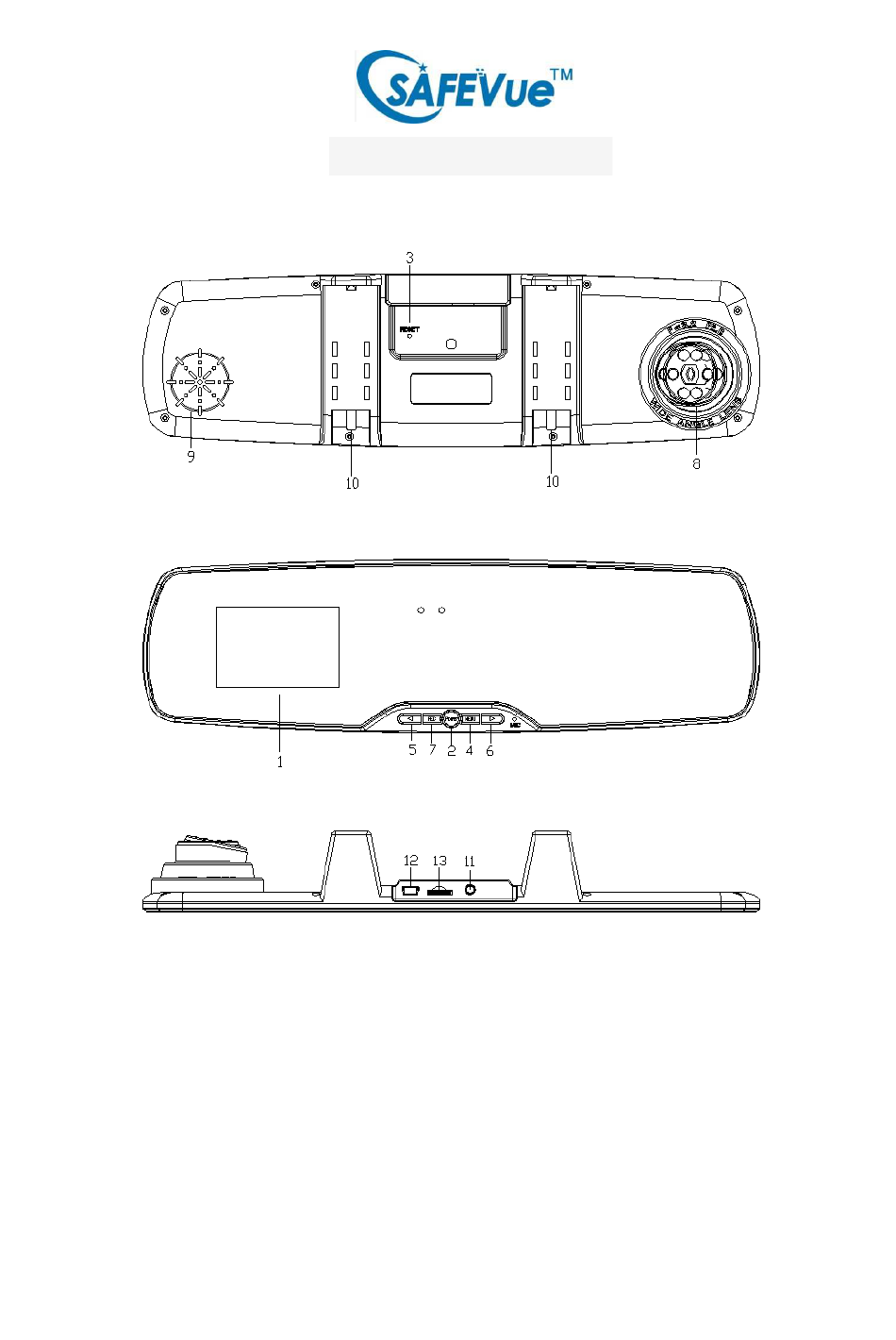

1.2.7inch screen
2.Power Button
3.Reset
4.Menu Button
5.UP Button
6.Down Button
7.Record Button
Accessories: USB cable, USB car charger ,AV output cable
Description of function of Keys :
E330User Manual
Introduction of function keys
8.Lens
9.MIC
10.Pinchcock
11.AV Output
12.USB Port
13. Micro SD card slot
Advertisement
Table of Contents
Summary of Contents for Safevue E330
- Page 1 E330User Manual Introduction of function keys 1.2.7inch screen 8.Lens 2.Power Button 9.MIC 3.Reset 10.Pinchcock 4.Menu Button 11.AV Output 5.UP Button 12.USB Port 6.Down Button 13. Micro SD card slot 7.Record Button Accessories: USB cable, USB car charger ,AV output cable Description of function of Keys :...
- Page 2 1）2.7 inch Screen Display recording video 2）Power Button Long press to ON/OFF device Press once to switch to video recording mode, picture mode and playback mode 3）Reset Press and hold 10s with power connected to reset device 4）Menu Button Press one to enter into first page of menu Press twice to enter into second page of menu 5）Up Button Move up to select the function keys in menu option;...
- Page 3 Connect external power source(Cigarette Lighter / 5v Battery) to supply power; Micro SD Card Slot Insert and Eject SD Card (Please use Micro SD Card Class 4 and above) Operation: Resolution Recommend resolution: 1080FHD 1920x1080 720P 1280x720 Loop Recording Select the length of each video clip: 1min, 3mins, 5mins No video gap between two video file, system will auto delete the earliest file when SD card recorded full Exposure, Recommend to leave it default +0.0...
- Page 4 Auto Power Off Power off device when device idle after certain time(2mins, 5mins, 10mins) Language Support English, French, Spanish, Portuguese, German, Italian, Chinese Simplify, Chinese Traditional, Russian, Japanese, Korean TV Mode Video output mode: PAL/NTSC (Normally choose PAL) Light Frequency 50Hz or 60Hz, recommend 50Hz Screen Savers Off the screen after certain timing(1min,3mins,5mins), but device still...
- Page 5 Battery instruction: Battery indication image： Full battery slightly low battery low battery battery empty Products specifications: Scheme NOVATEK 93250 Pixel 3 Megapixel(Full HD 1080P) Lens EI827 Max 1920*1080/30fps Resolution 1280*720/30fps G-sensor Support Display 2.7 inch 4:3 960*240 View angle 120 degrees Loop recording Support Temp-Park Motion...
