Summary of Contents for SHOWTEC RP-405 MKII

  • Page 1 MANUAL ENGLISH RP-405 MKII Relay Pack Ordercode: 50753 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    RP-405 MKII Relay Pack Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Frontside..................................7 Underside ..................................
  • Page 3: Warning

    Your shipment includes: ● Showtec RP-405 MKII Relay Pack with a Schuko power cable (1,3 m) ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●...
  • Page 4 ● If your device fails to work properly, discontinue the use immediately. Pack the device securely (preferably in the original packing material), and return it to your Showtec dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the device running unattended.
  • Page 5: Operating Determinations

    RP-405 MKII Relay Pack Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 40 °C must never be exceeded.
  • Page 6: Return Procedure

    RP-405 MKII Relay Pack Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
  • Page 7: Description Of The Device

    RP-405 MKII Relay Pack Description of the device Features The RP-405 MKII Relay Pack is a compact switch pack with built-in relays, designed for switching your LED light effects. The device is suitable for low-power LEDs,  Controllable by DMX or sound, according to the built in patterns.
  • Page 8: Frontside

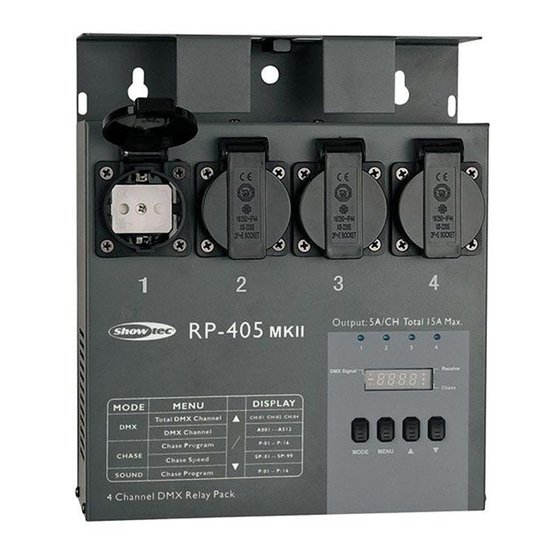

    RP-405 MKII Relay Pack Frontside Fig. 02 01) 4 x Schuko output 02) LED channel indicators 03) LED display 04) MODE button 05) MENU button 06) UP button 07) DOWN button Underside Fig. 03 08) Main fuse 15A 09) Power switch ON/OFF...
  • Page 9: Installation

    RP-405 MKII Relay Pack Installation Remove all packing materials from the RP-405 MKII. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.
  • Page 10: Chase Mode

    RP-405 MKII Relay Pack 03) Press the UP/DOWN buttons to select one of the 3 DMX channel modes:  CH: 01 1 channel controls all 4 outputs  CH: 02 2 channels control 4 outputs: one channel controls outputs 1 and 2 and another channel controls outputs 3 and 4 ...
  • Page 11: Sound-Controlled Mode

    02) Press the UP/DOWN buttons to select one of the 16 built-in sound-controlled chases. Maintenance The Showtec RP-405 MKII requires almost no maintenance. However, you should keep the device clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.
  • Page 12: Troubleshooting

    03) If all appears to be O.K., plug the device in again. 04) If you are unable to determine the cause of the problem, do not open the RP-405 MKII Relay Pack, as this may damage the device and the warranty will become void.
  • Page 13: Product Specifications

    RP-405 MKII Relay Pack Product Specifications Model: Showtec RP-405 MKII Relay Pack Input Voltage: 240 V AC, 50/60 Hz Fuse: 4 x 6,3 A/250 V Main fuse: 15 A/250 V Power consumption: 3450 W Dimensions: 210 x 73 x 260 mm (LxWxH)
