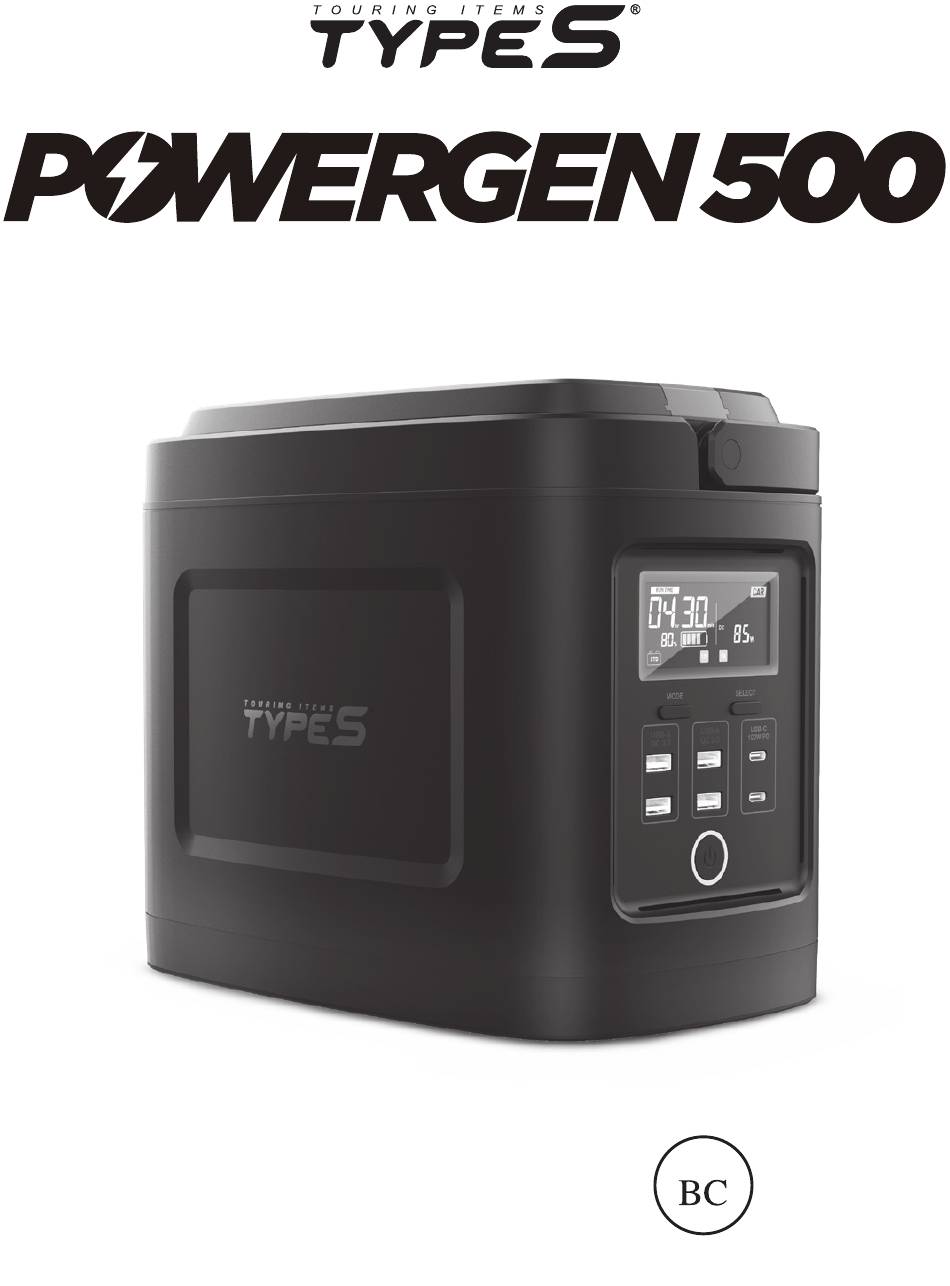

- Page 1 GASLESS LITHIUM GENERATOR & BATTERY CHARGER WP ITM. AC530021 User Manual IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS: Product Dimensions: 6.54” x 10.55” x 8.86” (16.6 x 26.8 x 22.5 cm) Product Weight: 15.2 lbs (6.9kg) Battery Type: Lithium iron phosphate (LiFePO4) Pack Capacity: 512Wh (16V 32Ah / 12V 42Ah) Life Cycles: >1000 Cycles to 80% capacity Shelf Life: Charge every 3-6 months Management System:... -
Page 3: Mode Button
6. Power Button & LCD Display Screen ON / OFF & LED Power Indicator Press the Power Button once to turn on the POWERGEN 500. Press again to turn off the POWERGEN 500. When POWERGEN 500 is turned on, the LED power indicator turns BLUE and the LCD display is on. -
Page 4: Package Contents
6V/12V battery charging in order to activate the car battery charging function. Car Charger Cable (Input) User Manual & Warranty Card * For recharging the POWERGEN 500, please refer to page 9 for details. -
Page 5: Lcd Display
A. Run Time / Charge Time Run Time shows minute-level accuracy of the amount of discharge time left in POWERGEN 500 based on the current output level. Charge Time shows minute-level accuracy of battery recharging time based on the power input. - Page 6 Press SELECT button once to run through the charging modes below. DIFFERENT TYPES OF BATTERIES CAN BE SELECTED MANUALLY ONLY. For charging 12V Lead-acid batteries rated at 5A 12V Lead-acid battery being charged at rated 5A Voltage of Lead-acid battery is measured at 13.6V...
-
Page 7: Repair Mode
For charging 12V Li-ion batteries rated at 5A LI-ION PUSH mode PUSH PUSH Mode Push Mode is designed for charging battery with voltage in between 0.5V to 3.75V. pop up and flash when battery is connected and low PUSH voltage is detected. You need to press and hold the SELECT button for 3 seconds to enter Push Mode, light up and flash at the same 6V 12V PUSH... -
Page 8: Overheat Indicator
Indicates the battery temperature of POWERGEN 500 is too low (charging below 32°F or discharging below -4°F). All inputs and outputs will stop functioning at this state. Please bring the POWERGEN 500 to a warmer location and wait for the battery temperature to be within the working range 32°... -
Page 9: Solar Input
HOW TO RECHARGE POWERGEN 500 AC Input: AC/DC Adapter (90W Max) < 7 hrs 0-100% Charges less than 7 hours (AC/DC Adapter included) Car Input (by 12V Car Outlet): Car Charger (90W Max) < 7 hrs 0-100% Charges less than... -
Page 10: Important Safety Instructions
GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF THE UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE POWERGEN 500. 2) To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery. -
Page 11: Personal Precautions
k) The device shall be stored indoors and protected from the elements; l) The unit shall not be charged outdoors; m) When in use, steps should be taken to reduce the exposure to rain, sleet, snow, and the like. n) PERSONAL PRECAUTIONS 1) Consider having someone close enough by to come to your aid when you work near a lead-acid battery. -
Page 12: Battery Disposal
For information regarding air travel safety with batteries please check the U.S. Department of Transportation prior to travel at: http://phmsa.dot.gov/safetravel/batteries , or contact your airline if traveling from a country outside the U.S. Note: The POWERGEN 500 gives 512 watt hours of power. - Page 13 • The battery charging function is only intended for charging rechargeable Gel , AGM type and lead-acid batteries.Charging other types of batteries can damage the product, battery or other property. • The car battery charging function is not intended to be used as a power supply unit for other products.
-
Page 14: Preparing To Charge
PREPARING TO CHARGE a) If necessary to remove battery from vehicle to charge, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc. b) Be sure area around battery is well ventilated while battery is being charged. c) Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes. d) Add distilled water in each cell until battery acid reaches level specified by battery manufacturer. Do not overfill. For a battery without removable cell caps, such as valve regulated lead acid batteries, carefully follow manufacturer’s recharging instructions. - Page 15 FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY: a) Position AC and DC cords to reduce risk of damage by hood, door, or moving engine part. b) Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
- Page 16 FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY: a) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a larger diameter than NEGATIVE (NEG, N, –) post b) Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to NEGATIVE (NEG, N, –) battery post.
-
Page 17: Conditions Of Warranty
WARRANTY: TYPE S LIMITED WARRANTY TYPE S warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, TYPE S’s liability shall be limited to that set forth in this limited express warranty. -
Page 18: Owner's Responsibilities
(whether direct or indirect, in contract, tort or otherwise) incurred in connection with the POWERGEN 500, including but not limited to damaged property, personal injury and/or loss of life. Neither shall TYPE S and/or its affiliates have any liability for any decision, action taken based on relying on the stability or performance of the POWERGEN 500. TYPE S and/or its affiliates, the manufacturer,... - Page 19 WARRANTY CONT.: FCC Compliance Statement: POWERGEN 500 GASLESS LITHIUM GENERATOR & BATTERY CHARGER Model: AC530021 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1-866-294-9244 This device complies with Part 15 of the FCC Rules.
- Page 20 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Mon - Fri, 8AM - 5PM (Pacific Time) Tel: 1-866-294-9244 (English only) | info@typesauto.com ©2022 TYPE S. All rights reserved. Made in China www.typesauto.com ML-530021_V1...
