Summary of Contents for EK-Quantum Scalar 2

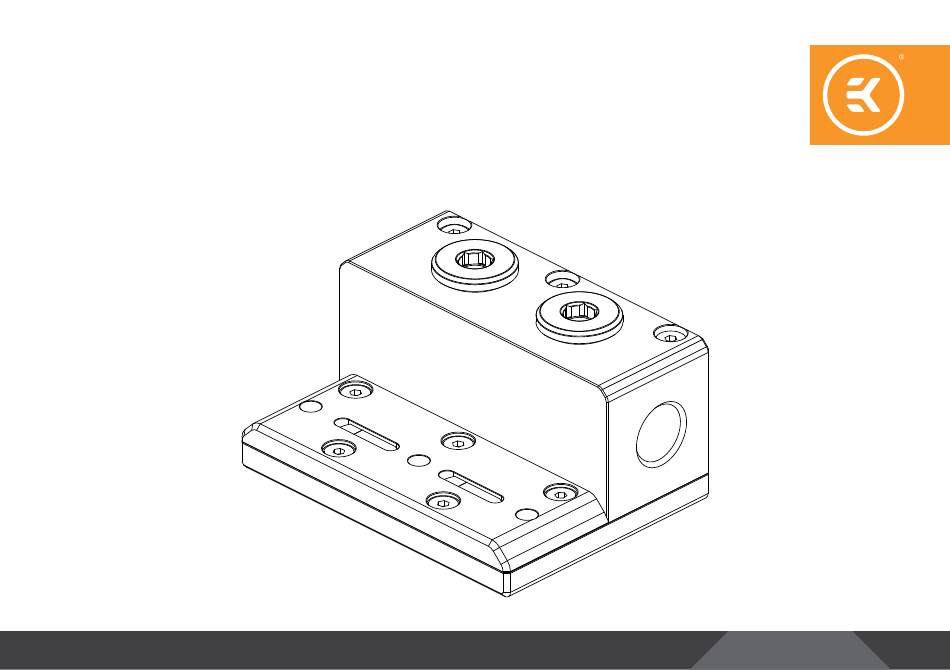

- Page 1 EK-Quantum Scalar SFF Terminal USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS PRODUCT DIMENSIONS TECHNICAL SPECIFICATIONS AND MAIN PARTS INSTALLING THE EK-Quantum Scalar SFF Terminal FITTINGS AND TUBING TESTING THE LOOP WARRANTY SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Screw M4 x 12 DIN7984 (3 pcs) Plug G 1/4 cover (2 pcs) EK-Quantum Scalar SFF Terminal - 4 -... -
Page 5: Product Dimensions
PRODUCT DIMENSIONS 72 mm 35 mm 50 mm 22 mm 19 mm 50 mm 22 mm - 5 -... -
Page 6: Technical Specifications And Main Parts
Screw M3 x 30 DIN7991 OR 60 x 1.5 mm Screw M3 x 8 7991DIN EK-Plug G1/4 INSTALLING THE EK-Quantum Scalar SFF Terminal STEP 1 Detach the terminal badge and store it for the next step. The terminal badge is attached with two (2) magnets. Unscrew the pre-installed terminal from the water block using the Allen Key 2.5 mm. - Page 7 STEP 2 Position the replacement terminal on the water block. During this process, make sure you have aligned the holes. Secure the terminal with three (3) M4 x 12 DIN7984 Screws and Allen Key 2.5 mm. The saved terminal badge can be reused, after securing the replacement terminal.
-
Page 8: Fittings And Tubing
FITTINGS AND TUBING STEP 1 OUTLET Screw in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. INLET Do not forget to plug the remaining openings with the enclosed EK-Plug G1/4 or its equivalent. EK recommends using EK fittings with all EK water blocks. -
Page 9: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 10: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks - 10 -...
