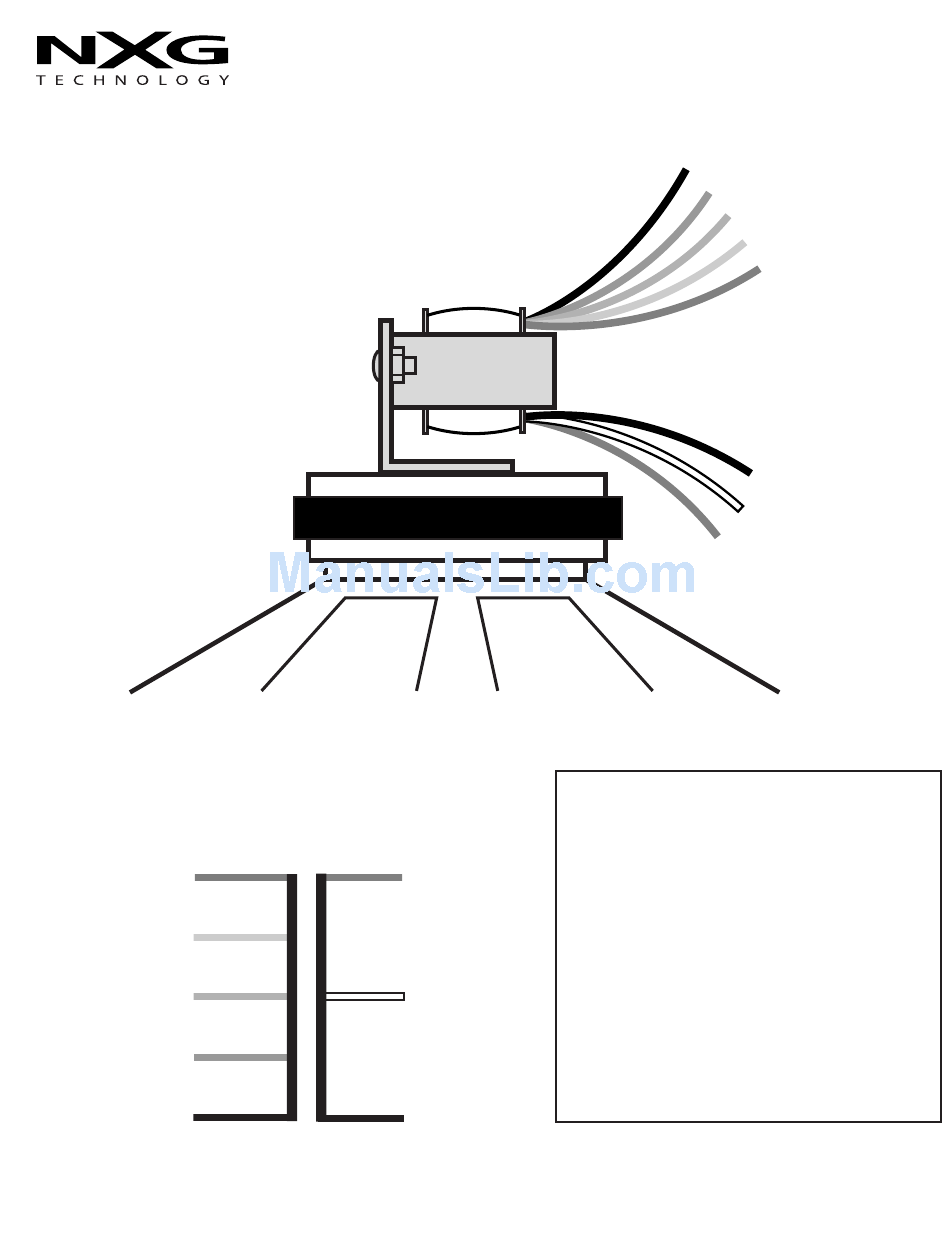

Nxg 70VTR Specifications

70 Volt Line-Matching Transformer
for Music and Paging Applications
70 Volt Ampliflier Input
(Primary)
5W (1000Ω)
10W (500Ω)
15W (330Ω)
20W (250Ω)
Common
16648 North 94th Street • Scottsdale, AZ 85260 • 1-800-733-0008
NX-70VTR
Speaker Output
(Secondary)
8Ω
4Ω
0
TO AMPLIFIER
Common (Black)
20W (Brown)
15W (Orange)
10W (Yellow)
TO SPEAKER
4Ω
8Ω
SPECIFICATIONS
Primary Voltage:
Power Rating:
Primary Taps:
Secondary Impedance:
Insertion Loss:
Frequency Response:
Lead Length:
Weight (lbs.):
Mounting Dimensions:
Mounting Method:
5W (Blue)
0 (Black)
(White)
(Red)
70V
20W
20, 15, 10, 5W
8, 4 ohms
1dB
20Hz - 20kHz ± 1dB
6˝
1.1
3.37˝ W x 2˝ D x 2˝ H
Self-adhesive pad
