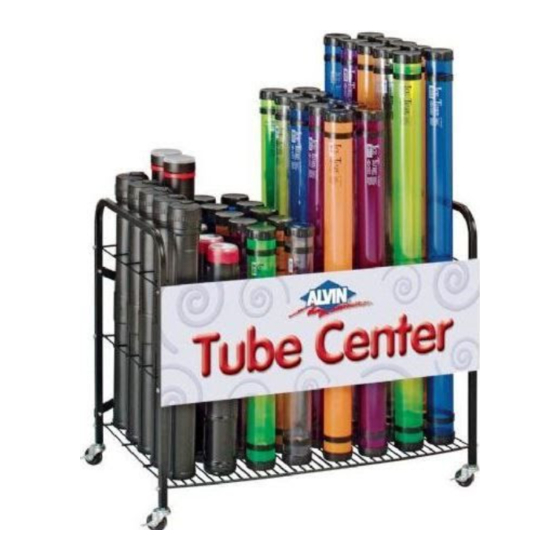

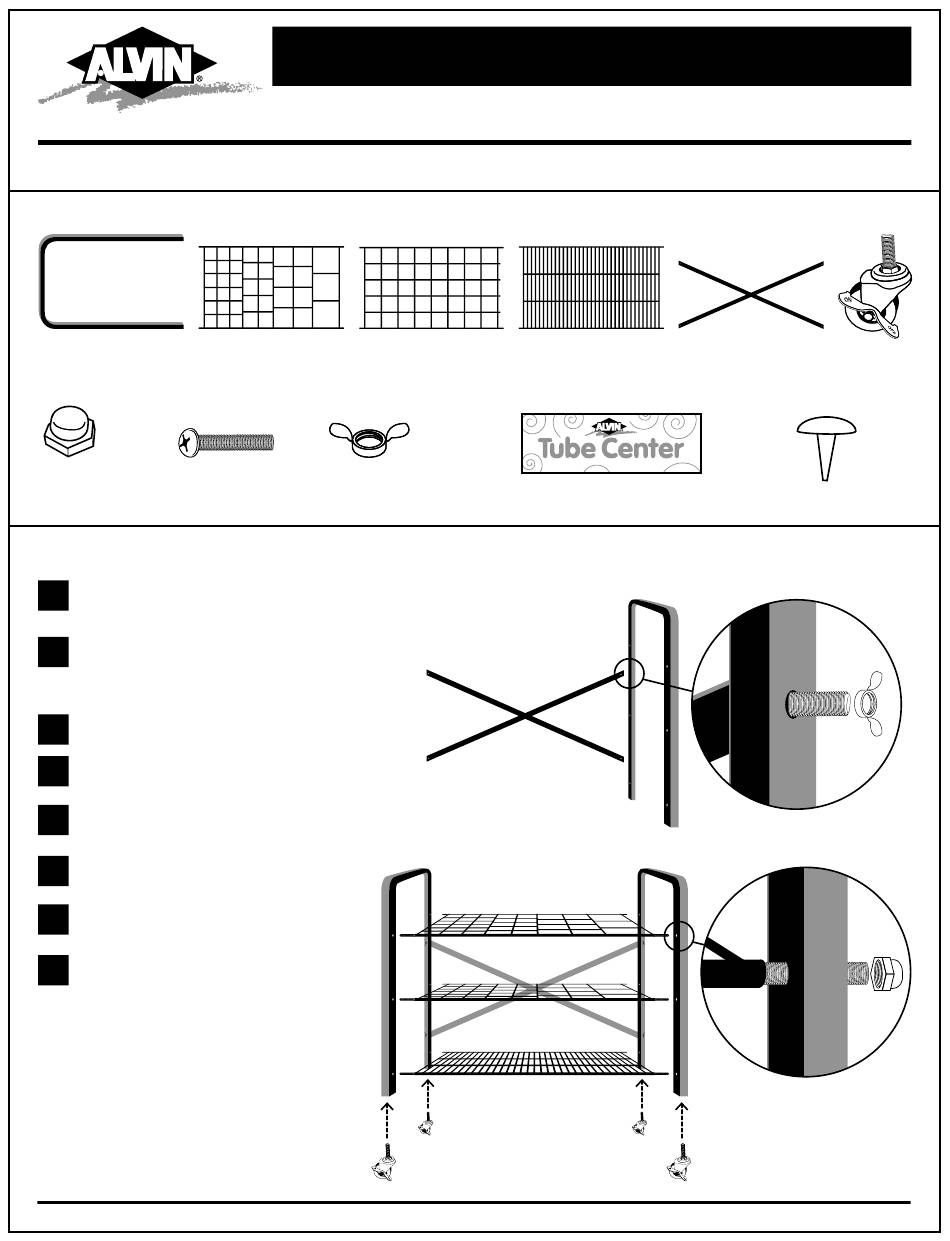

Alvin PMT100D Assembly Instructions

Tools required:

Phillips screwdriver, pliers or wrench, and double-sided tape.

Parts included:

2 pcs 2 pcs
Side frame Middle and
top grid panel
(PMT100D)
12 pcs 4 pcs
Capped nut Screws for
cross brace

To assemble:

Unpack and inspect contents to confirm you have all parts listed above.
Unpack and inspect contents to confirm you
1
have all parts listed above.
Connect back cross brace to right side frame
2
using two screws and two wing nuts, as
shown in Figure 1. Wing nuts should be on
the inside of the frame.
3
Set assembly down with cross brace on floor.
Connect top, middle, and bottom grid panels
4
to right side frame using six capped nuts.
Connect left side frame to grid panels using
5
six capped nuts.
Screw four casters into bottom tubes of side
6
frames. Turn assembly upright.
Connect back crossbar to left side frame
7
using two screws and two wing nuts.
Attach display sign to front of assembly using
8
four snap buttons. You may choose to utilize
double-side tape to help secure the display
sign in position.
Tube Center Display
Assembly Instructions
2 pcs
Middle and
or
top grid panel
(PMT200D)
4 pcs
Wing nut
PMT100D – PMT200D
1 pc 1 pc
Bottom grid Back cross brace
panel
1 pc
Front display sign
Figure 1
Figure 2
4 pcs
Caster
4 pcs
Push buttons for sign
