Summary of Contents for Sea-doo SEASCOOTER DOLPHIN ZS06

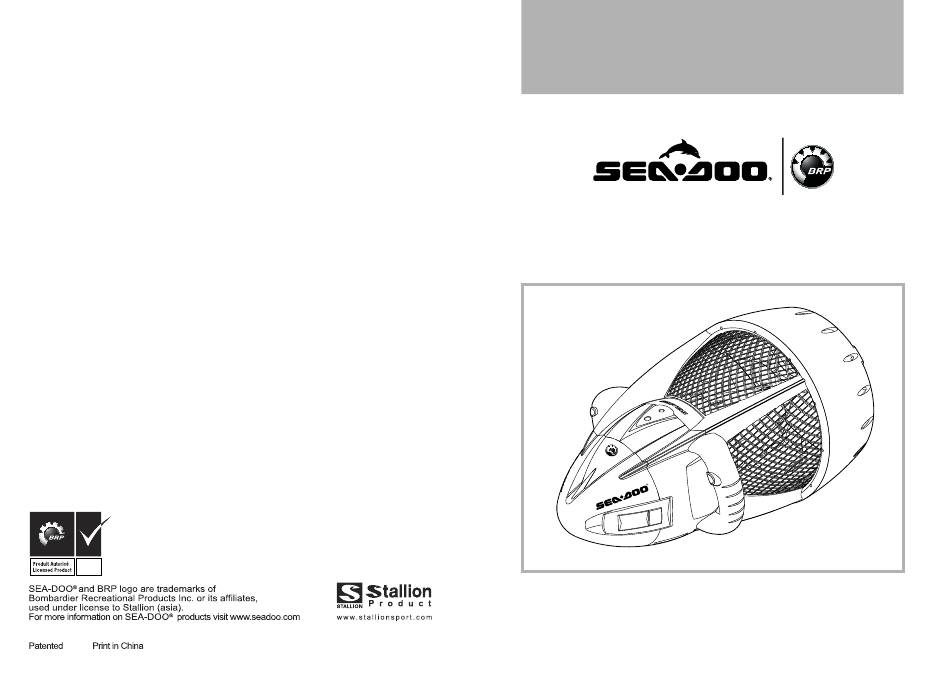

- Page 1 User Manual SEA-DOO ® SEASCOOTER DOLPHIN ™ Model no. ZS06 CAUTION ELECTRICALLY OPERATED PRODUCT Not recommended for children under 8 years of age. As with all electrical products, precautions should be observed during handling and used to reduce the risk of electric shock.
-
Page 2: Table Of Contents
Contents Introduction ® Thank having chosen SEA-DOO Introduction SEASCOOTER DOLPHIN. ™ The DOLPHIN adds a new dimension of fun and excitement to swimming and snorkelling. Parts diagram Years of design and engineering have resulted in a water scooter that gives you power - up to 2 mph / 3.2 km/h... -
Page 3: Parts Diagram
Parts Diagram WARNING • Not to be used by children under the age of eight (8) and must ONLY be used by children under adult supervision. • Read the user manual carefully. • Never stick body parts, clothing or other objects in the vicinity of the propeller. -
Page 4: Getting Started
Getting Started DOLPHIN Battery Use ® When you buy the SEA-DOO SEASCOOTER DOLPHIN ™ CAUTION the battery is disconnected and needs to be charged, • The Battery Housing should always be ventilated follow the instructions on page 5, Battery Use, Charging during charging to allow potentially explosive the Battery, for charging and connection. - Page 5 1. Always ensure that the Safety Lock in the Off position is Off - see fig. 2b. Fig.4 ® 2. Always ensure that the SEA-DOO SEASCOOTER ™ 6. Connect the battery cable to the charger cable. DOLPHIN is out of the water and placed in a dry area.
-
Page 6: Care & Maintenance
Care And Maintenance To replace a flat battery with a fully charged battery. Battery Care 1. Follow the steps 1 to 4 on page 6, to open the • The battery should be recharged as soon as possible SEASCOOTER ™ after use. -
Page 7: Trouble Shooting
Trouble Shooting • To clean the SEASCOOTER do not use detergents, ™ Unit does not function only use a damp cloth to wipe the unit clean. If the motor does not start when both triggers are • The Battery Housing interior should be kept dry at all pressed, make sure: times. - Page 8 Drive Pin In Position Fig.9 Fig.7 9. Replace the washer and nut and tighten with the socket whilst holding the Propeller making sure it is 5. Whilst holding the Propeller, use an M6 socket to securely fastened (See fig. 10). remove the nut from the Propeller shaft (See fig.
-
Page 9: Technical Specifications
Technical Specifications Sand or Grit on Seal Unit Dimensions 285 x 283 x 483 mm Sand or grit is the enemy of seals. Correct maintenance Unit Weight 12 lbs (5.4 kg) (with rechargeable battery) and care is essential. To remove sand or grit from the 5.3 lbs (2.4 kg) (without rechargeable battery) seal, rinse the seal in fresh water and apply fresh Battery Type...
