Summary of Contents for Teledyne Everywhereyoulook ENC-560

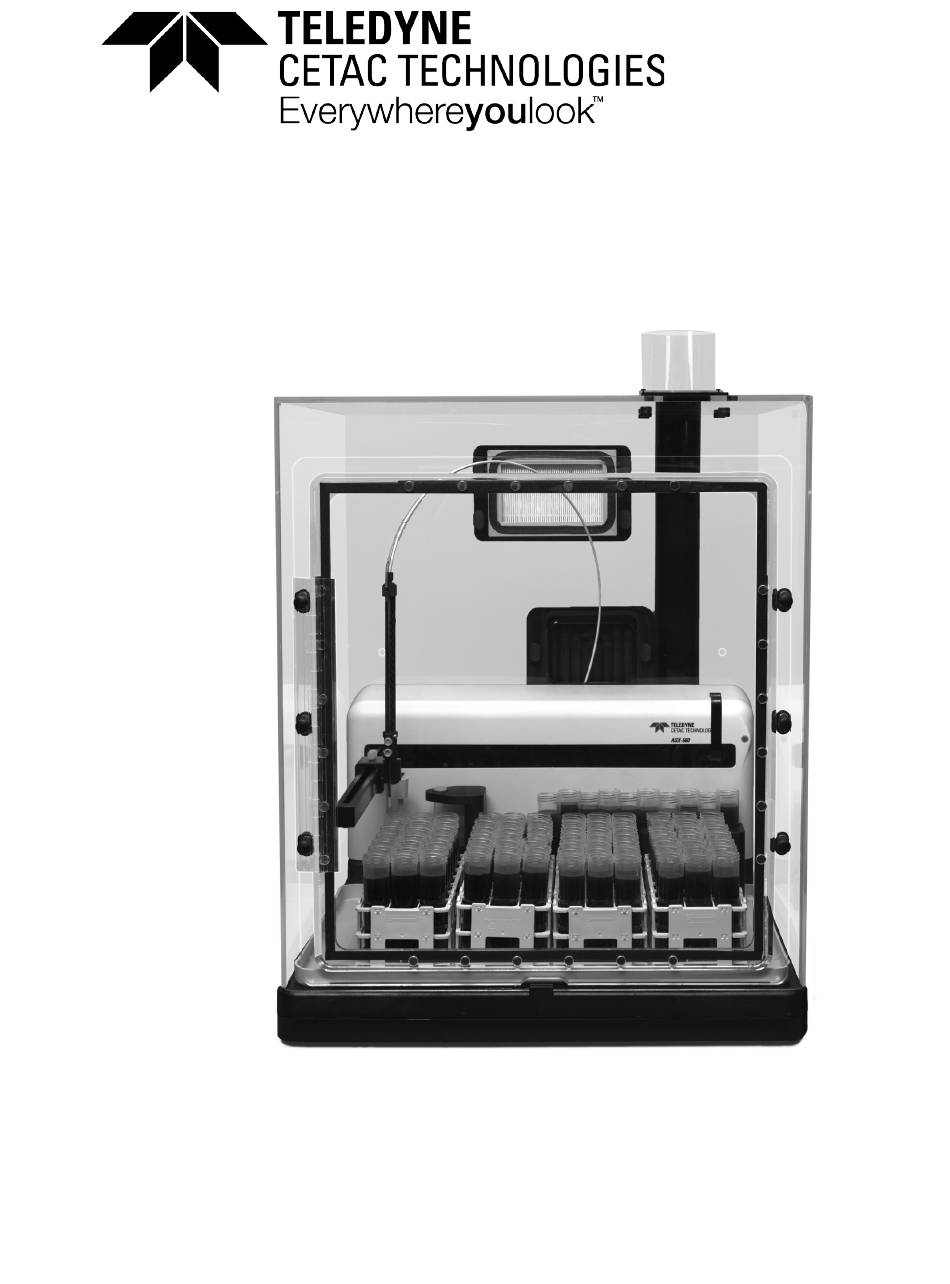

- Page 1 ENC-560 Autosampler Enclosure Installation Guide Manual Part Number 480232 Rev 1...
-
Page 2: Tools Required
© 2016, 2017 Teledyne Technologies COPYRIGHT Windows is a registered trademark of TRADEMARK ACKNOWLEDGEMENTS Incorporated. All rights reserved. Microsoft Corporation in the United States and 480232 Rev 1 , June, 2017 other countries. Printed in USA. PharMed and Tygon are registered... -
Page 3: Enclosure Components
Enclosure Components Exhaust Adapter HEPA Filter Chimney Door Sample Tray Autosampler Base Enclosure Base Figure 1 Front View Exhaust Adapter Chimney Support Plate HEPA Filter Frame Chimney Tube Z-Drive Cover Tubing Tunnel Cover Enclosure Base Back View Figure 2... - Page 4 Installing the Enclosure on an ASX-560 Autosampler CHEMICAL INJURY HAZARD WARNING Remove all hazardous chemicals from the autosampler before installing the enclosure. Make sure you know the hazards associated with all of the chemicals you are using, and take the appropriate precautions. Exposure to laboratory chemicals may result in serious injury.
- Page 5 Attach the five feet to the bottom of the enclosure base with #6-32 x 1½" screws. Place the autosampler right-side-up. Step 2: Install the Enclosure Shell Install the Z drive on the autosampler arm. Do not connect the Z-drive cable to the rotor;...
- Page 6 Secure the enclosure to the back of the autosampler with four #6-32 x ¾" screws. An assistant may need to hold the cover of the autosampler in place. Tighten these screws as tight as you can. Step 3: Install the Z-Drive Cable Feed the Z-drive cable through the opening above the autosampler head.
- Page 7 Install the chimney support plate on top of the chimney tube. Push it down while twisting it until it is fully seated on top of the chimney tube. Firmly push the chimney tube onto the enclosure base. Twist it a little bit to get it to seat completely.
- Page 8 Place the four sealing nuts for the HEPA filter. Install the filter frame to the back of the enclosure using the four #6-32 x 1½" screws. The filter frame is symmetrical—either side can face up. Installing the Exhaust Adapter Exhaust adapters are available in several sizes to match the tubing in your laboratory exhaust system.
- Page 9 Install the three #6-32 x ¾" screws on the hinge side and three #6-32 x ½" screws on the non-hinge side. Installing the Fittings Use the 1/16 inch nut and ferrule to couple the sample probe tubing to the Installing the Sample Tubing Bulkhead Fitting bulkhead and then to your analyzer, as described below.
- Page 10 Use this fitting to connect a gas supply to the enclosure (to provide a Installing the Gas Pass-Through nonreactive atmosphere, for example). Install the bulkhead fitting (just as with the sample tubing). Install the threaded connector in the bulkhead fitting. Push barbed end of the threaded fitting into the gas tubing.
- Page 11 Installing the Tubing Tunnel Cover Route the tubing through the tunnel under the autosampler head. Place the foam insert around the rinse tubing. Press the foam insert into the tubing tunnel cover. Attach the tubing tunnel cover to the back of the autosampler with two #6-32 x ½"...
-
Page 12: Cleaning The Enclosure
At least three clean, soft, lint-free cloths or clean-room wipers. Cleaning solution. A recommended plastic cleaner may be ordered from Teledyne CETAC. You may also use a mild non-abrasive soap and water solution. Use a clean cloth to remove surface dust.
