User Manual

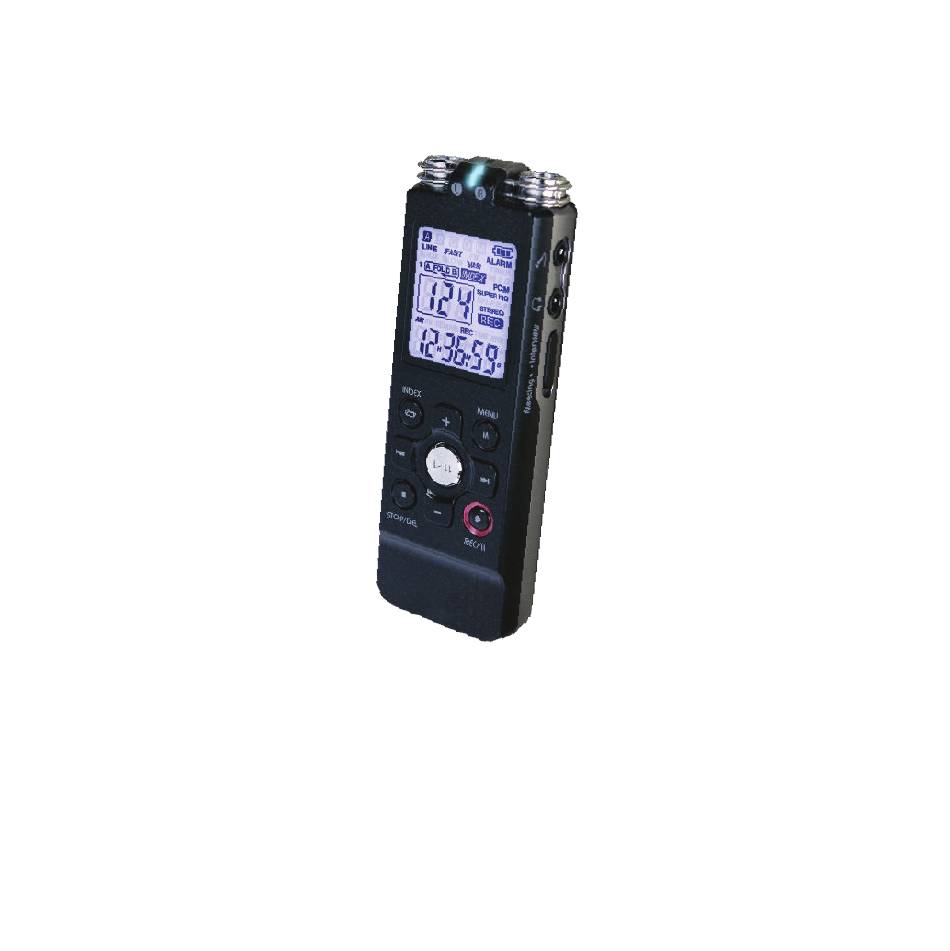

Model Name: RYL-K9 Pro
Professional Digital Voice Recorder
Be sure to read this user manual before using the recorder.
Keep this manual in good custody as it may be useful later.
For the quality improvement of product,
Specifications, design or accessory are subject to change without notice.
Made in Korea
Advertisement
Table of Contents
Summary of Contents for Record Your Life RYL-K9 Pro
- Page 1 User Manual Model Name: RYL-K9 Pro Professional Digital Voice Recorder Be sure to read this user manual before using the recorder. Keep this manual in good custody as it may be useful later. For the quality improvement of product, Specifications, design or accessory are subject to change without notice.
-
Page 2: Table Of Contents
User Manual Table of Contents 1. Introduction of Unique Features -------------------------------------------------------------- 2. Before use ---------------------------------------------------------------------------------------------- 2-1. Package Contents ---------------------------------------------------------------------------------- 2-2. Product Features : Recording / Playback / Convenience --------------------------------- 3. Safety Instructions ---------------------------------------------------------------------------------- 3-1. Product Safety --------------------------------------------------------------------------------------- 3-2. Other --------------------------------------------------------------------------------------------------- 4. - Page 3 7. Playback ------------------------------------------------------------------------------------------------- 7-1. Playback functions --------------------------------------------------------------------------------- 7-2. Play features ----------------------------------------------------------------------------------------- 8. Management of Recording File ---------------------------------------------------------------- 8-1. Set date and time ----------------------------------------------------------------------------------- 8-2. Display information ------------------------------------------------------------------------------- 8-3. Use the device with a computer ---------------------------------------------------------------- 8-4. Structure of Recording file ----------------------------------------------------------------------- 8-5.
-
Page 4: Introduction Of Unique Features
1. Introduction of Unique Features - Unique Features - 1) Recording: (1) Covert Recording ------------------------------------------------------------------------------------ (2) Mobile Phone Recording ------------------------------------------------------------------------- (3) Telephone Recording ------------------------------------------------------------------------------ (4) Triple Built-in Microphones ---------------------------------------------------------------------- (5) Hearing Aid --------------------------------------------------------------------------------------------- (6) Recording File Editing ----------------------------------------------------------------------------- (7) Scheduled Recording ------------------------------------------------------------------------------ 2) Management of Recording File: (1) Recovery of deleted file... - Page 5 - Main Features - 1) Telephone Recording: (1) Telephone Recording On/Off via Telephone Recording Adapter ---------------------------- (2) Time Display and Recording File name is saved as recording time & date -------------- (3) Telephone/Cell Phone Recording compatible with telephone and cell phone ----------- 2) Voice Recording: (1) Long time recording up to 2,287 hours ------------------------------------------------------------ (2) Big Letters on the display for catching information easily ------------------------------------...
-
Page 6: Before Use
2. Before use 2-1. Package Contents What’s in the box Batteries USB cable Stereo Earphone User manual Audio Cable Telephone Recording Adapter Ear microphone Voice Recorder 2-2. Product Features Recording • Records in audio format with Voice Guidance Messages. • Choose between ten recording modes. Uncompressed PCM stereo recording modes (PCM1~PCM5) for audio CD-like quality, two stereo modes including SHQ and HQ and three mono modes including SP, LP and SLP for extended recording times. -
Page 7: Product Features : Recording / Playback / Convenience
Playback • Adjustable playback speed to play recordings in fast and slow playback modes. • Set a complete or a portion of an audio file to play repeatedly with repeat playback option. • Enjoy music of digital format plus FM radio. •... -
Page 8: Safety Instructions
3. Safety Instructions 3-1. Product Safety • Do not place objects such as coins or hairpins inside the product. This may cause malfunction. • Do not place heavy objects on the product. This may cause damage and malfunction. • Do not expose the player to sources of moisture such as water, beverages, chemicals, cos- metics, and so on. -
Page 9: Other
• Do not clean with chemicals or detergents. This may cause malfunction. • Do not drop or subject the device to impact. This may cause damage and malfunction. • Do not press more than two buttons simultaneously. This may cause damage and malfunction. •... -
Page 10: Name Of Each Part
4. Name of Each Part... -
Page 11: Getting Started
5. Getting Started 5-1. Insert the batteries 1) Slide open the battery cover. 2) Place the batteries in the correct polarity as indicated and close the cover. ► Notes • Remove the batteries if you will not be using the device for an extended period. Leaking bat- teries may damage the device. -
Page 12: Hold Function
5-3. Hold function When the HOLD switch is in the Hold position, all buttons on the device are inactive. On Hold will be shown briefly on the display and the display will turn off. Unlock the device by moving the HOLD switch to the Off position. -
Page 13: Use The Device With A Computer
5-6. Use the device with a computer As a USB mass storage device, the device offers a convenient way to save, back up and move files. The device connects to a computer using a USB connection and does not require special software to be installed. -
Page 14: Recording
6. Recording 6-1. Record with the built-in microphone 1) Press the INDEX button while the recorder is stopped to select the desired folder. 2) Press the ◎ REC/|| button to start recording. The record/play indicator light will be red. Point the built-in microphone toward the sound source. -
Page 15: Record With An External Microphone
6-2. Record with an external microphone To record with an external microphone, connect the microphone to the microphone jack and fol- low the same procedure as for the built-in microphone. 6-3. Using EDIT function APPEND: Add recording to an already recorded file OVER WRITE: Overwrite recording to an already recorded file <APPEND>... -
Page 16: Add Index Marks
► Notes • The recording mode of the original file is in effect when editing a recording. • Editing recording is not available in the M (music) folder and SLP Mode. • It is required to set EDIT off after using EDIT function is completed. 6-4. -
Page 17: Covert Recording
6-5. Covert Recording 1) Press the index button to make all A,B,C,D folders displayed on the LCD shown as below images. 2) If you press Recording button, ‘Hid’ message will appear on the LCD and there is no display on the LCD shown as below images. Even though there is no display on the LCD, recording is proceeding until you press Stop but- ton. -
Page 18: Hearing Aid Function
6-6. Hearing Aid Function <Using Hearing Aid Function> You can listen to voices by connecting earphones to the earphone jack first. 1) Press and hold INDEX button at stop mode and the device executes Hearing Aid function. 2) Press +,- button to adjust sensitivity during Hearing Aid operates. 3) To stop Hearing Aid function, press the STOP/DEL button. -
Page 19: Recording Mobile Phone Conversation
► Notes If earphones are disconnected from the earphone jack, Hearing Aid function terminates auto- matically. If an external microphone or audio cable is connected to the microphone jack, Hearing Aid func- tion terminates automatically. 6-7. Recording Mobile Phone Conversation Universal Cell Microphone works with every telephone and cell phone to record your phone conversation. -
Page 20: Recording Telephone Conversation
6-8. Recording Telephone Conversation • The digital telephone cannot be connected to the Voice recorder. • To record only when you talk on the telephone, select Voice Activated Recording and press REC button. (For details, refer to menu settings page) •... -
Page 21: Playback
7. Playback Playback 1) Press the INDEX button while the recorder is stopped to select the desired folder. 2) Press the｜◄◄ or ►►｜ button to select the file to play back. 3) Press the ▷｜｜ button. The playback time will be shown on the display, and the green LED blinks. 4) Adjust the volume using +/- buttons. -
Page 22: Play Features
3) Rewind and forward Press the ｜◄◄ or ►►｜button during playback to rewind to the beginning of the file being played or forward to the next file, respectively. If the file contains index marks, playback begins at that point. 7-2. Play features You can set the device to play files repeatedly or randomly. -
Page 23: Management Of Recording File
8. Management of Recording File 8-1. Set date and time When the batteries are installed for the first time, you will be prompted to set the data and time. 1) ‘CLOCK’ will be shown on the display. Press the ▷｜｜ button. The year indicator flashes. -
Page 24: Use The Device With A Computer
8-3. Use the device with a computer As a USB mass storage device, the device offers a convenient way to save, back up and move files. The device connects to a computer using a USB connection and does not require special software to be installed. -
Page 25: Lock And Unlock Voice File
8-5. Lock and Unlock Voice File Locking a file keeps important data from being accidentally erased. When you choose to erase all files from a folder, Please select Off to unlock the file and allows it to be erased. 1) Press and hold STOP/DEL button while the recorder is stopped to select the desired folder. 2) Press the｜◄◄... -
Page 26: Delete
8-6. Delete 1) Press the INDEX button while the recorder is stopped to select the desired folder. 2) Press and hold the STOP/DEL button for 1 second or longer. DELETE appears on the screen. Press the▷｜｜ button. 3) Press the ｜◄◄ or ►►｜ button to select a delete option. 4) Press the ▷｜｜... -
Page 27: Recovery Of Deleted File
8-7. Recovery of deleted file To recover a file that was accidentally deleted. If files were recorded after deleting a recorded file, recovery is not available. 1) Press and hold the MENU button while the recorder is stopped to select the desired folder. 2) Press the ｜◄◄... -
Page 28: Menu Settings
9. Menu Settings... -
Page 30: Audio Player, Fm Tuner
10. Audio Player, FM Tuner ► Notes on using the device as a music player • The device supports music files in .wma and audio formats that can be transferred from the computer to the music folder of the device. Files with copy protection (digital rights manage- ment) are not supported. - Page 31 <Manually tune to a radio station> 1. To fine-tune frequency, quickly press the ｜◄◄ or ►►｜button. 2. To search for the next stronger signal, press and hold ｜◄◄ or ►►｜ button. 3. Press the ▷｜｜ button to save the frequency as a preset. 4.
- Page 32 <Delete a preset radio station> 1. Press the INDEX button while the recorder is in radio mode to switch between frequency and preset mode. 2. In preset mode, press the ｜◄◄ or ►►｜ button to select the preset radio station to be deleted.
-
Page 33: Firmware Update
11. Firmware Update The device is controlled by an internal program called firmware. Regularly check www.recordyourlifeinc.com for new firmware updates. 1. Download the firmware update from www.recordyourlifeinc.com and save the file in the root directory of the device. 2. Press the MENU button ① while the recorder is stopped to open the menu. 3. -
Page 34: Trouble Shooting
12. Trouble Shooting... -
Page 35: Specification
13. Specification Recording Media Built-in Flash Memory Features Covert Recording Dimensions 34.8 x 17.4 x 98 (mm) Recovery of deleted file Weight(g) 43g (excluding batteries) Mobile Phone Recording Display LCD (segment type) / Diagonal screen size: 37.58 mm Telephone Recording PC Interface USB High-speed 2.0 mini-USB Voice Activated Recordng... -
Page 36: Warranty & Customer Service
14. Warranty & Customer Service... -
Page 37: Introduction Of Compatible Useful Optional Recording Accessories
15. Introduction of compatible useful optional recording accessories 1) External Battery Pack ► Tips to use external battery pack: 1. The external battery pack is used mostly to record for long time in covert place. 2. Places to be installed: under desk, car etc. 3. -
Page 38: Why We Develop This Product
(3) High Quality Amplifier Microphone with extension cable & clip 16. Why we develop this product We as manufacturer have developed this device to provide our world customers with following three values of the digital voice recorder. 1) To provide best digital voice recorder to the world. 2) To provide the most optimized voice recorder to meet various recording purposes. - Page 39 FCC note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 40 Made in Korea Version 2.0...
