Summary of Contents for O'smiler S0224

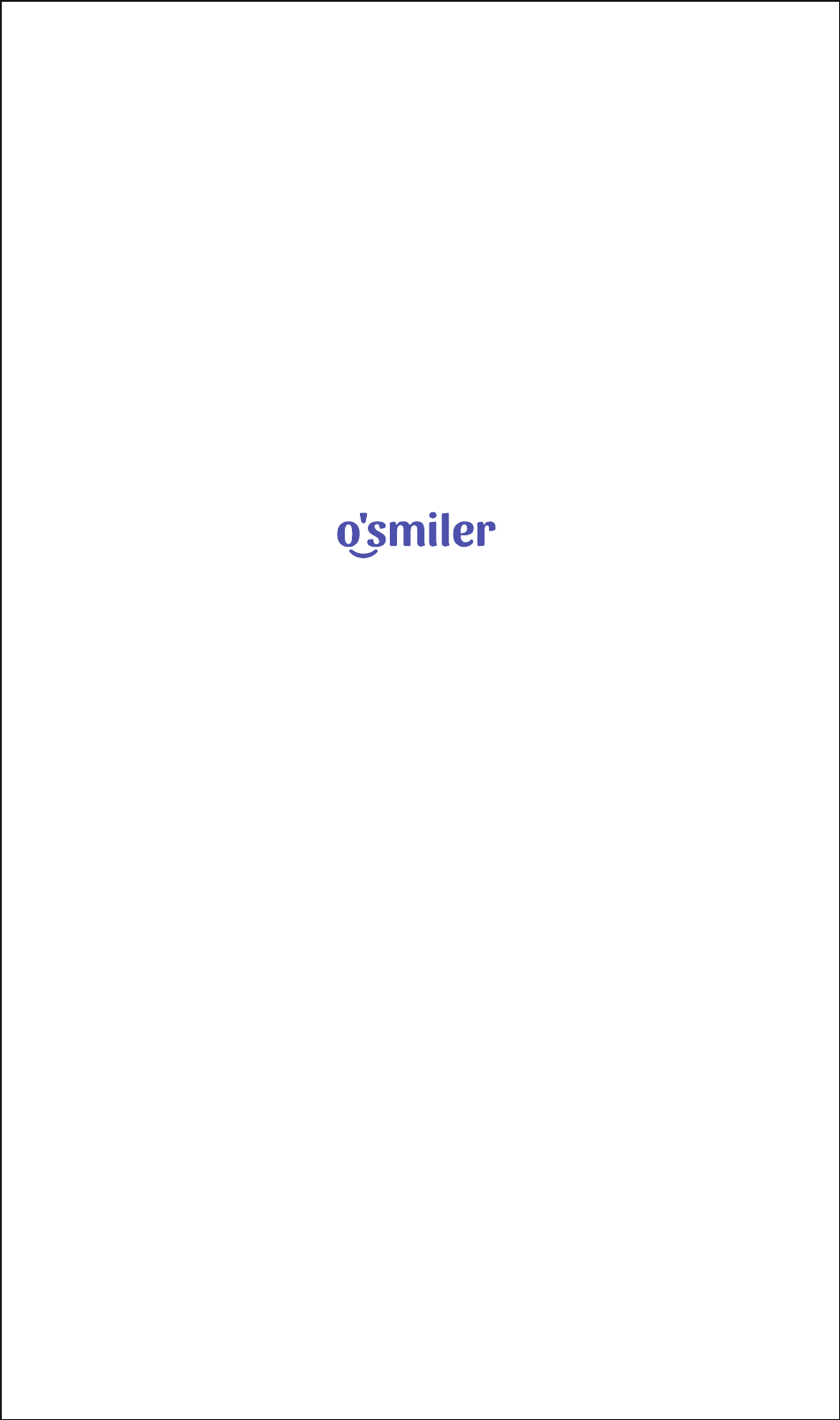

- Page 1 Electric Music Toothbrush Operation Manual Please Read It Carefully Before Using www.osmiler.com Shenzhen Osmiler Technology Co., Ltd.
-
Page 2: Product List
Hello First of all, thank you for choosing our sonic electric toothbrush. Let us have the opportunity to provide you with our high-quality service. In order to bring you the enjoyment of high-quality service. After purchasing this product, please read this instruction carefully， and put the warranty card away prudently. Product List ×2 Brush head + transparent toothbrush cover... - Page 3 Function Graphic Built-in Music mode OFF Short press A) · Press A to next track (in built-in music mode · Long press A to adjust the volume (short pause when it reaches the maximum) · Press B to turn it off Bluetooth mode(OFF Long press A ·...
- Page 4 Assemble Electric Music Toothbrush Insert the brush head downward into the connecting shaft of the body. There will be a gap (about 0.3-1.2mm) between the body and the brush head after insertion.This is the buffer distance reserved for the vibrating motor.. Charge Connect the handle to the charging line and plug in the Type-c charger for charging.
- Page 5 Copy selected mp3 format music to Roll out the removable disk on the removable disk (keep music file size computer, unplug the data line and within 3-5mb) use the product Built-in Music Mode Apply appropriate amount of Put the brush head in the mouth, the toothpaste to the bristles and soak the bristles are close to the teeth, the bristles...
-
Page 6: Bluetooth Mode
In built-in music mode, long press After brushing, press B to turn off A to adjust to appropriate volume and rinse with water Toothbrush body and brush head Bluetooth Mode In the off state, long press A to Open the Bluetooth interface of the enter the Bluetooth connection mobile phone, select Osmiler... - Page 7 Traditional Vibration Mode In the off state, , press B to enter In vibration mode, press B to select traditional vibration mode different Vibration mode (divided into three modes: gentle, clean and massage) Under different vibration modes, After brushing, briefly press A to long press B to adjust three turn off the machine.
- Page 8 cleaning at 45° Angle, effect is Do not press hard when brushing better your teeth. Keeping the bristles and teeth intact have certain contact is enough 45˚ Remove and replace the brush head When you want to stop brushing and by pulling it up in the direction of the take your brush head out, arrow (Do not twist the brush head)
-
Page 9: Product Parameters
Product Parameters Product model S0224 Working current 500mA±100mA Handle voltage rating 3.7V Motor vibration frequency 250~330 Hz Size 27.3 L X28.4 W X243.5mm(H) Working power 3.0W Waterproof level IPX7 Weight 132.0g with toothbrush head Battery 2000mAh The toothbrush head Food grade Dupont bristles with protective caps Charging current 550±50mA... -
Page 10: Security Service
Security Service Warning: Read all instructions before use 1.Check the product carefully before each use. If there is any damage to the product (brush head, handle, etc.), please stop using it. 2.This product does not contain parts that users can maintain by themselves. Do not disassemble, repair or modify the product . -
Page 11: Fcc Statement
22.Itchy gums, numbness and even slight bleeding are normal when first used. Your gums will adjust to the sonic vibrations in about two days, and the discomfort will last for a week. If discomfort persists, consult your dentist. 23.If the product will not be used for a short period of time, please be sure to charge it every 6 months before use. - Page 12 Osmiler guarantees its products for one year from the date of purchase. Defects due to material and workmanship defects will be repaired or replaced at Osmiler's expense (including Osmiler retailers and dealers) if a convincing proof of purchase is provided during the warranty period. Osmiler recommends using genuine Osmiler brush heads for optimal performance.
