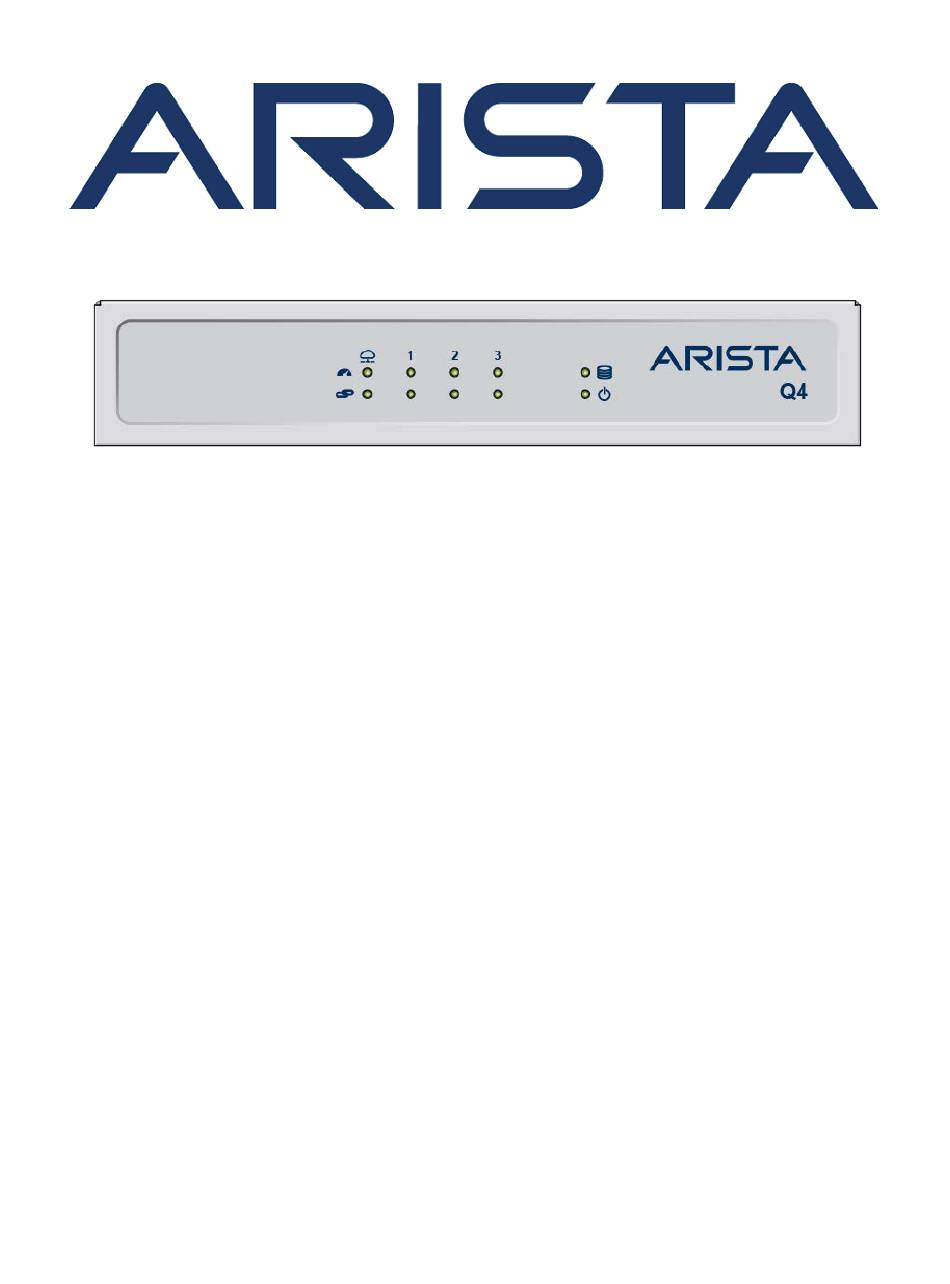

- Page 1 Quick Start Guide Edge Threat Management Appliance CCA-ETM-Q4 Arista Networks www.arista.com DOC-05999-01...
- Page 2 The trademarks, logos and service marks ("Marks") displayed in this documentation are the property of Arista Networks in the United States and other countries. Use of the Marks are subject to Arista Network Term of Use Policy, available at http://www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for...
-
Page 3: Table Of Contents
Contents Contents Chapter 1: Overview................1 1.1 Scope............................1 1.2 Receiving and Inspecting the Equipment................1 1.3 Installation Process.........................1 1.4 Safety Information........................2 1.5 Obtaining Technical Assistance..................... 2 1.6 Specifications.......................... 2 Chapter 2: Preparation................3 2.1 Site Selection..........................3 2.2 Electrostatic Discharge (ESD) Precautions................4 2.3 Tools and Parts Required for Installation................4 Chapter 3: Mounting the Appliance............5 3.1 Desktop Installation........................ -
Page 4: Chapter 1: Overview
Parts List provides a list of components included with the appliance. Installation Process The following tasks are required to install and use the CCA-ETM-Q4 Appliance: 1. Select and prepare the installation site (Site Selection). 2. Assemble the tools and parts needed (Tools and Parts Required for Installation). -
Page 5: Safety Information
Refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation. Obtaining Technical Assistance Any customer, partner, reseller or distributor holding a valid Arista Service Contract can obtain technical support in any of the following ways: •... -
Page 6: Chapter 2: Preparation
Chapter 2 Preparation This section describes the initial setup and preparation for installing the CCA-ETM-Q4. This chapters contains the following topics: • Site Selection • Electrostatic Discharge (ESD) Precautions • Tools and Parts Required for Installation Site Selection The following criteria should be considered when selecting a site to install the appliance. -
Page 7: Electrostatic Discharge (Esd) Precautions
Electrostatic Discharge (ESD) Precautions Observe these guidelines to avoid ESD damage when installing or servicing the appliance. • Assemble or disassemble equipment only in a static-free work area. • Use a conductive work surface (such as an anti-static mat) to dissipate static charge. •... -
Page 8: Chapter 3: Mounting The Appliance
Appliance. Cabling the Appliance Complete the following for the CCA-ETM-Q4 installation process. 1. Connect an Ethernet cable from your Internet modem or router to the designated WAN port. 2. Connect an Ethernet cable from your management computer or LAN switch to port 1. -
Page 9: Chapter 4: Configuring The Appliance
You can manage your appliance using the Edge Threat Management Dashboard or from the local network. From Edge Threat Management Dashboard 1. Navigate your web browser to http://edge.arista.com/cmd. 2. Log in with your Edge Threat Management Dashboard account, or click Create Account to set up an account. -
Page 10: Appendix A: Status Indicators
Appendix A Status Indicators The following are the Status Indicators' locations and their functions for the front of the CCA-EMT-Q4 appliance. Front Indicators 1 Speed status 4 Hard disk 2 Internet port 5 Power 3 LAN ports 6 Connection status... -
Page 11: Appendix B: Parts List
Each appliance provides an accessory kit that contains parts that are required to install the appliance. This section lists the installation parts contained in the appliance accessory kit. The CCA-ETM-Q4 package includes: 1 12V power supply 3 DB9 serial to RJ49 adapter... - Page 12 Appendix C Rear Panel This section shows the rear panel of the CCA-ETM-Q4. 1 12V 3.3A plug-in power 4 USB ports adapter port 2 Factory reset 5 Internet and LAN ports 3 Reset 6 RJ45 console...
-
Page 13: Appendix D: Regulatory Model Numbers
Regulatory Model Numbers This appendix lists the Regulatory Model Numbers (RMNs), where applicable, for the product models for the appliances described in this document. Table 4: Regulatory Model Numbers and Product Numbers Regulatory Model Number (RMN) Product Number(s) AN2209 CCA-ETM-Q4... -
Page 14: Appendix E: Taiwan Rohs Information
Appendix E Taiwan RoHS Information This appendix provides Taiwan RoHS information for appliances covered by this guide. For Taiwan BSMI RoHS Table, go to https://www.arista.com/assets/data/pdf/AristaBSMIRoHS.pdf.
