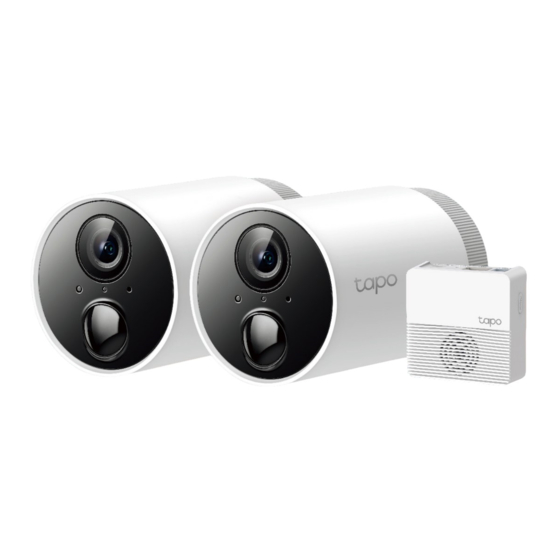

Smart wire-free security camera system
Hide thumbs Also See for Tapo C400S2:

Advertisement

Quick Links

User Guide
Smart Wire-Free Security Camera System
©2023 TP-Link 1910013278 REV1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tapo C400S2 and is the answer not in the manual?

Questions and answers

Summary of Contents for TP-Link Tapo C400S2

  • Page 1 User Guide Smart Wire-Free Security Camera System ©2023 TP-Link 1910013278 REV1.0.0...
  • Page 2: Table Of Contents

    Contents About This Guide ··········································································· 1 Introduction ······················································································ 2 Appearance-Camera ··································································· 3 Appearance-Hub ········································································ 4 Charge the Battery ········································································ 7 Set Up Your Camera ····································································· 8 Install a microSD Card ······························································ 10 Installation Options ···································································· 11 Mount Your Camera··································································· 12 Authentication ··············································································...
  • Page 3: About This Guide

    About This Guide This guide provides a brief introduction to the Smart Wire-Free Security Camera System and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience.
  • Page 4: Introduction

    • 180 Day Long Battery Life* – The rechargeable and removable battery with a low-power protocol extends your usage. *180-day battery life is based on TP-Link's laboratory testing with 10-20 triggered events per day. Actual battery life may vary based on device settings, use, and environmental factors.
  • Page 5: Appearance-Camera

    Appearance-Camera Front Back SYNC Lens Status LED SYNC/RESET Button Indicate the status of your camera. While the camera is powered on: Light Sensor Press for 1 second: Pair with the hub Motion Sensor Microphone Press and hold for at least 5 seconds: Reset the camera...
  • Page 6: Appearance-Hub

    Appearance-Hub SYNC Press to pair with the camera, or silence the hub when it rings. RESET Press and hold for at least 5 seconds until the hub LED quickly blinks red to reset the hub. microSD Card Slot Insert a microSD card to record camera videos locally. Initialize the microSD card within the Tapo app first.
  • Page 7 Hub Status LED Solid red Starting up Blinking red and green Ready for setup Solid amber Connected to router Solid green Connected to the cloud Blinking green slowly Pairing Blinking red quickly Hub resetting Blinking green quickly Hub updating...
  • Page 8 Camera Status LED Solid Red Starting up Blinking red and green Ready for pairing Blinking green slowly Pairing Solid amber Connected to the hub Solid green Connected to the cloud Blinking red quickly Camera resetting Blinking green quickly Camera updating Blinking red once a minute Low battery Blinking red slowly...
  • Page 9: Charge The Battery

    Charge the Battery Method 1: Connect the battery to a power source. 5V USB Charger Charging: Solid amber Fully charged: Solid green Method 2: Insert the battery into the camera, and then connect the camera to a power source. 5V USB Charger...
  • Page 10: Set Up Your Camera

    Step 3. Add Your Hub First Get the Tapo app from the App Store or Open the app, and log in with your TP-Link ID. Tap the button in the app and select your Google Play, or by scanning the QR code If you don't have an account, create one first.
  • Page 11 Step 4. Add Your Camera Tap the button in the app and select your model. Follow app instructions to set up your camera.
  • Page 12: Install A Microsd Card

    Install a microSD Card If you want the camera to record videos locally, insert a microSD card to your hub. Initialize the microSD card within the Tapo app. You can go to Camera Settings > microSD Card in the Tapo app to check the card status or format your card.
  • Page 13: Installation Options

    Installation Options When you finish adding your camera in the Tapo app, you can place your camera on a flat surface, or mount it on a wall or ceiling with the provided mounting template and screws. Option 1. Set on a Table Option 2.
  • Page 14: Mount Your Camera

    Mount Your Camera When you finish adding your camera in the Tapo app, you can place your camera on a flat surface, or mount it on a wall or ceiling with the provided mounting template and screws. Step 1. Drill Holes Step 2.
  • Page 15: Authentication

    Authentication FCC compliance information statement Product Name: Smart Wire-Free Security Camera System Model Number: Tapo C400S2 Component Name Model I. T .E. Power Supply T090085-2B1 USB ADAPTER A8-501000 Rechargeable Lithium-ion Battery Tapo A100-INT Responsible Party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 926181 Website: http://www.tp-link.com/us/...
  • Page 16 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 17 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 18 The device complies with RF specifications when the device used at 20 cm from your body. UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
  • Page 19 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.
  • Page 20 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮,請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用,以確保本產品的操作可靠並防止過熱,請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風,否則不可放在密閉位置中。 • 請不要私自打開機殼,不要嘗試自行維修本產品,請由授權的專業人士進行此項工作。 • 電源供應器应使用在环境温度低於或等於40℃的室內。 限用物質含有情況標示聲明書 設備名稱:Smart Wire-Free Security Camera System 型號(型式):Tapo C400S2 Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 多溴二苯醚 鉛 汞 鎘...
  • Page 21 外殼 ○ ○ ○ ○ ○ ○ 電源供應器 − ○ ○ ○ ○ ○ 其他及其 − ○ ○ ○ ○ ○ 配件 備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值 Note 1:“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
  • Page 22 • Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us. • This product can be powered only by power supplies that comply with Power Source Class 2 (PS2) or Limited Power Source(LPS) of IEC 62368-1. •...
  • Page 23 Explanation of the symbols on the product label Symbol Explanation Alternating current DC voltage Caution Operator’s manual Class II equipment Polarity of output terminals Energy efficiency Marking Indoor use only RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
