Summary of Contents for HÖSSAUDIO KLASSIK 106

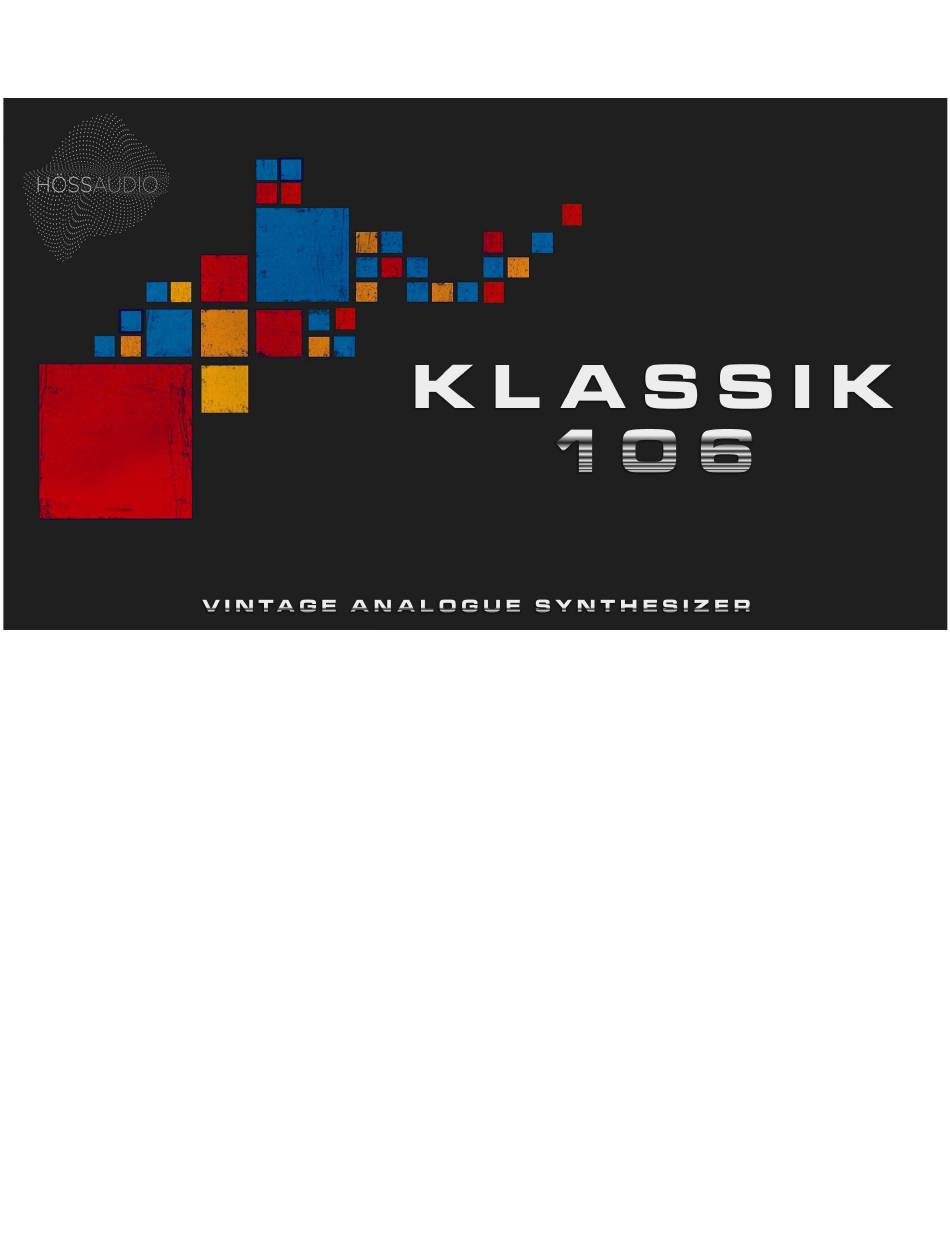

- Page 1 KLASSIK 106 USER MANUAL...
- Page 2 By HÖSS AUDIO KONTAKT INSTRUMENTS DEVELOPER...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 - Introduction and compatibility…………………………………………………………………..3 2 - What’s inside?........................4 3 - Effects Panel…………………………………………………………………………...…………….5 4 - Synth 106…………………………………………………………………………………...………...6 4.1 - LFO…………………………………………………………………………………….……..7 4.2 - DCO…………………………………………………………………………………………..8 4.3 - HP………………………………………………………………………………...…………..9 4.4 - VCF………………………………………………………………………………………….10 4.5 - VCA………………………………………………………………………………………….11 4.6 - ENV………………………………………………………………………………………….11 4.7 - Arpeggiator………………………………………………………………………………..12 4.8 - Chorus……………………………………………………………………………………...13 4.9 - Bender Panel……………………………………………………………………………...14 5 - Delay 201…………………………………………………………………………………………….15... -
Page 4: Introduction And Compatibility
1 - Introduction and compatibility KLASSIK 106 is a virtual analogue synthesizer instrument that can be loaded ONLY IN THE FULL VERSION of Kontakt 6.6 or above. Designed and tested by the startup Kontakt instruments developer HÖSS AUDIO. KLASSIK 106 is developed based on Kontakt 6 new Wavetable engine. -
Page 5: What's Inside
2 - What’s inside? KLASSIK 106 includes 4 main modules: MODULE 1: A virtual vintage analogue synthesizer based on the iconic 80’s 106 hardware synth. MODULE 2: A Tape delay machine with 3 tape heads and a spring reverb (Impulse... -
Page 6: Effects Panel
MODULE 3: A Parametric equalizer based on the classic 611 Console Channel Strip. MODULE 4: A compressor based on the classic G series console master bus compressor, alongside a Tube overdrive effect module. 3 - Effects Panel The FX CHAIN is used to: - Activate/Deactivate the effects modules - Access each effect’s settings... -
Page 7: Synth 106
1 - EFFECT ON/OFF -Drag the jack connector Up/Down to Activate/Deactivate the effect. -The Red Led indicator on the right of the connector indicates the Active/Bypass state of each effect. 2 - EFFECT SETTINGS Press on the “settings” logo on top of each module, to access the settings of the corresponding effect 4 - Synth 106 Synth 106 is the main module containing the Synthesizer module. -
Page 8: Dco
1 - LFO RATE Sets the LFO RATE. 2 - LFO DELAY TIME Sets the time that needs to pass before the LFO kicks in. 3 - LFO MANUAL/AUTO MODE Sets the LFO trigger mode: AUTO: The LFO is triggered automatically. MANUAL: The LFO is only triggered when the LFO TRIGG ( in the Bender panel) is pressed. - Page 9 1 - RANGE SELECTOR Sets the pitch of the DCO 4’: Octave down transpose 8’: No transpose 16’: Octave up transpose 2 - LFO DEPTH Sets the depth of the LFO controlling the pitch. 3 - PWM (Pulse Width Modulation) When (4) is set to Manual, the PWM slider controls the Pulse Width of the square waveform.
-
Page 10: Vcf
4.3 - HP Sets the Cutoff point of the High Pass Filter. *If the HPF slider is set to 0 ( it’s minimum value ), lower frequencies are boosted. Over 0, the HPF slider sets the Cutoff point of the High Pass Filter. 4.4 - VCF... -
Page 11: Vca
1 - FREQUENCY Sets the Cutoff point of the Low Pass Filter. 2 - RESONANCE Sets the Resonance level applied on the Cutoff point. 3 - POLARITY SWITCH Sets the Polarity of the ADSR envelope. 4 - ENVELOPE MODULATION Sets the intensity of the modulation applied by the Envelope on the LP filter. -
Page 12: Env
1 - CONTROL SIGNAL SELECTOR Sets whether to control the VCA by the signal from the ADSR envelope generator or by the Gate signal. 2 - VCA LEVEL Adjusts the VCA Level. 4.6 - ENV Envelope that generates the control voltage applied to the VCF and VCA. Envelope has 4 parameters: A (Attack time) D (Decay time) -
Page 13: Arpeggiator
4.7 - ARPEGGIATOR 1 - ARPEGGIATOR (ON/OFF) Turns the Arpeggiator On/Off (Arpeggiator state is indicated by the Red Led indicator). 2 - HOLD If HOLD is pressed, the arpeggiator continues to play after you release the pressed notes. 3 - ARPEGGIATOR RATE Sets the Rate of the Arpeggiator (Synced) 4 - ARPEGGIATOR RATE DISPLAY Displays the current rate. -
Page 14: Chorus
4.8 - CHORUS Buttons 1 and 2 activate the built-in Chorus effect. Mode 2 has a higher (faster) rate than Mode 1. 4.9 - BENDER PANEL... -
Page 15: Delay 201
1 - LFO TRIGGER If LFO trigger mode is set to MANUAL, the LFO trigger switch activates the LFO when pressed. 2 - DCO Bender amount Sets the variable range of the DCO’s pitch when it’s controlled by the Bender. 3 - VCF Bender amount Sets the maximum effect of the Bender, when it’s controlling the Cutoff point of the VCF. - Page 16 1 - TAPE HEADS Adjusts the Echo volume and Feedback length of each of the 3 Tape heads individually. 2 - SATURATION Adjusts the Saturation amount on the overall echo. 3 - FLUTTER Adjusts the Flutter amount on the overall echo. 4 - TAPE NOISE Turns the Tape noise ON/OFF 5 - TAPE AGE...
- Page 17 ( Chart.01 - Repeat Rate ) REPEAT RATE HEAD 1 8th TRIPLET 16th HEAD 2 QUARTER QUARTER QUARTER TRIPLET HEAD 3 HALF HALF TRIPLET HALF ( Chart.02 - Mode Selector ) MODE HEAD 1 ⚫ ⚫ ⚫ ⚫ ⚫ HEAD 2 ⚫...
-
Page 18: G-Compressor And Tube Overdrive
6 - G-Compressor and Tube Overdrive 1 - THRESHOLD Sets the threshold of the compressor. 2 - RATIO Sets the Ratio of the compressor. 3 - ATTACK Sets the Attack time of the compressor. 4 - RELEASE Sets the Release time of the compressor. 5 - MAKE UP Sets the Make Up gain of the compressor. -
Page 19: Equalizer 611
7 - Equalizer 611 1 - LF Low Frequency section. 2 - LMF Low-Mid Frequency section. 3 - HMF High-Mid Frequency section. 4 - HF High Frequency section. 5 - Frequency knob Sets the frequency at which the boost or cut will be applied. 6 - Bell Toggles the Bell shape: If turned off, the band becomes a shelf. - Page 20 KLASSIK 106 by HÖSS AUDIO https://www.hadihosri.com/...
