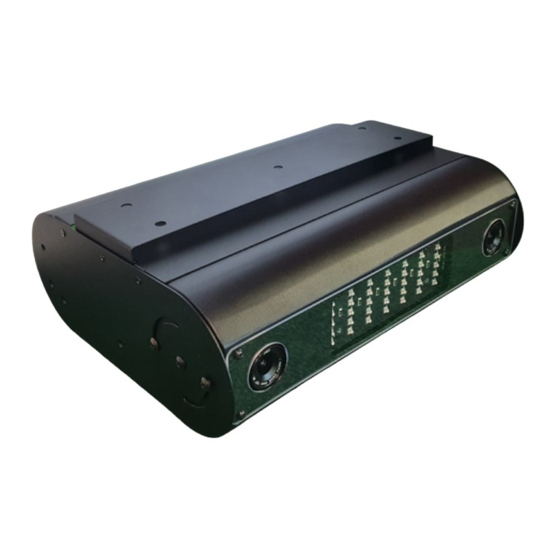

WIZ-I LAUNCH MONITOR IS A DUAL-CAM GOLF LAUNCH MONITOR USING THE DUAL GIGABIT CONNECTION TO ENHANCE THE SENSOR CONNECTIVITY. THE LAUNCH MONITOR IS EQUIPPED WITH TWO HIGH-SPEED CAMERAS RECORDING AT 500FPS PER CAMERA TOTAL OF 1000 FPS. Fairway Sims by Future Distribution Inc.
Page 4
YOUR ULTIMATE INDOOR GOLF EXPERIENCE IN A SMALL BOX WIZ-I LAUNCH MONITOR DUAL PORT LAN CARD (POWER CORD INCLUDED) CALIBRATION MAT 1 X SERIAL CABLE INSTALLATION MANUAL & 2 X ETHERNET CABLES SOFTWARE...
Page 5
- Install the bracket on the ceiling 4' back from the tee, 8.5' - 10.5' high - Please ensure to install Wiz-I centred to the tee* *Please mark your tee spot on your turf with a marker/tape as the tee area cannot be moved.
Page 6
WIZ-I LAUNCH MONITOR INSTALLATION INSTALL THE BRACKET ON THE CEILING ATTACH WIZ-I TO BRACKET BY INSERTING...
Page 7
WIZ-I LAUNCH MONITOR INSTALLATION INSERT AND TIGHTEN THE BRACKET SCREWS (A6) ON BOTH SIDES...
WIZ-I LAUNCH MONITOR INSTALLATION CONNECT THE CABLES - Connect both Ethernet Cables to CAM 1 & CAM 2 Port - Connect the Power cord to the Wiz-I and to an outlet SERIAL CABLE ON/OFF CAM 1 CAM 2 POWER...
Page 9
WIZ-I LAUNCH MONITOR INSTALLATION CONNECT THE CABLES - SERIAL CABLE 2-1. - Connect the Serial end to Wiz-I and the USB end to the PC - Serial Cable is to control automatic power on/off Red - Not Ready Green - Ready...
Page 10
WIZ-I LAUNCH MONITOR INSTALLATION LAN CARD INSTALLATION 3-1. Back of the Desktop Step 1. Lay the PC on its side with case screws placing up. Step 3. Remove metal cover by pushing from outside to in Step 2. Unscrew to slide open the cover Step 4.
Page 11
WIZ-I LAUNCH MONITOR INSTALLATION LAN CARD INSTALLATION 3-2. Successful installation Step 6. Close the cover and put the screws back in Ready to Connect Wiz-I to the PC...
Page 12
WIZ-I LAUNCH MONITOR INSTALLATION CONNECT WIZ-I TO THE PC - Connect both LAN Cables from Step 2 to LAN Card installed on the PC from Step 3 - Connect Serial Cable from Step 2-1...
Page 13
INSERT USB - Insert the USB provided to one of the open USB slots on the PC - Drag the "Wiz-I Launch Monitor" Folder to the Desktop - Remove USB. Feel free to use the USB for your other projects.
Page 14
I hit it. A. 2 Things can cause this. If you are using a white-top/matte-top driver/wood/putter. Wiz-I can detect the reflection/white top as a golf ball which causes this issue. Please put a piece of masking tape on your club.
Page 15
As part of the service, we'll take it from here. Please Turn on the TeamViewerQS Provided in the USB Please Send Us The Following Info To The Email Below: - Your Name - TeamViewer ID - Product Code info@fairwaysims.com...
