Summary of Contents for Silma Compact 8

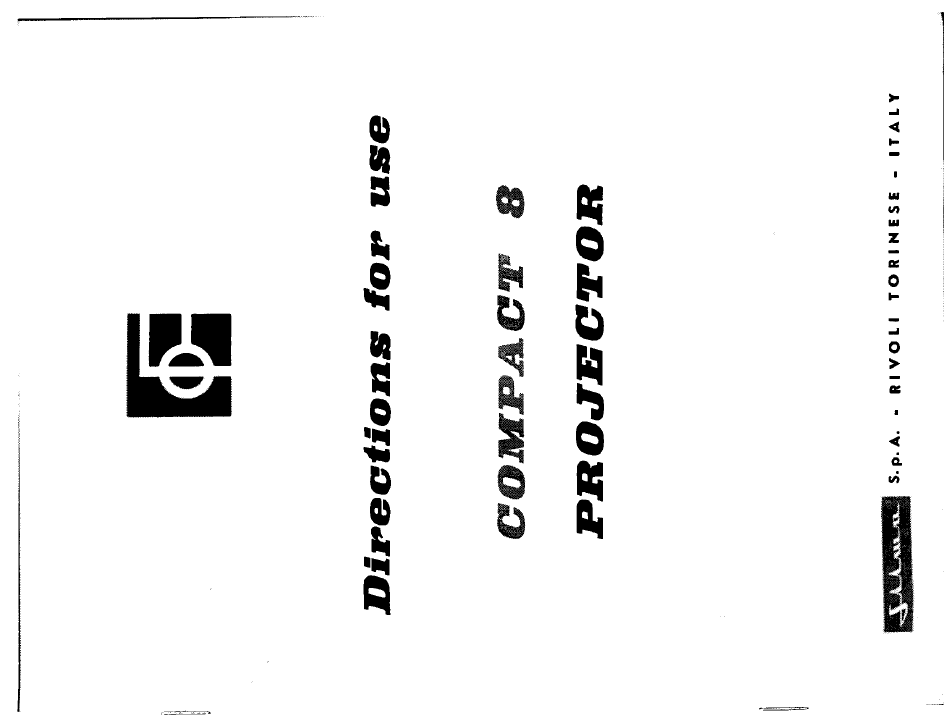

- Page 1 >- <0( "" '" I II &. a :: •• "" . .. > • 0 • .&.

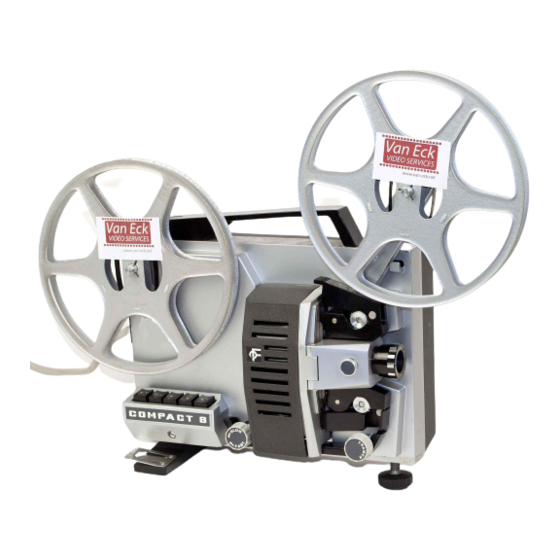

- Page 2 1 - Inching knob 2 - Take-up spool spindle max. 400 feet. 3 - Voltage selector 4 - Mains input socket 5 - Room light socket - max. 60 Watts. 6 - Front spool arm - max. 400 feet Self threading guide 8 - lamphouse cover 9 - Micro focussing knob 10 - Film guide channel...
- Page 3 VOLTAGE SELECTOR The voltage selector (3) (110-240 A.C.) is placed above control :lanel should set to correspond with your mains voltage. ()illl' (:7' pro jeclOr is a precision instrument been rigorously inspected before MAINS EARTHING despatch to you from our modern Turin plant. Insert mains lead...
- Page 4 Then ultra fine cussing, t"e micrometric knob (9). PROJECTION SPEED Your COMPACT 8 is driven by a with continuously variable motOr speeds from approximatively 12 to frames second, b't' means of a rheostat. To adiust...
- Page 5 FRAME ADJUSTMENT During projection line appear horizontally ac.ros,s the screen (top or bottom). This is krown as the « frame line" dl-d carl be removed by turning framing c0ntlO! (lIl until it disapcears HEIGHT ADJUSTMENT To raise or lower your COMPACT 8 p'ojector, rotate...
-
Page 6: Rear Cover
LUBRICATION After every .d hours projection is advisable lubricate points indicated in Ihe picture wllh drops of fine oil. OPENING REAR COVER To open rear it is necessary first remove lam- COver phouse cover unscrew milled knob shewn picture. CLEANING THE PROJECTOR GATE Take the lens huld(;~(...
