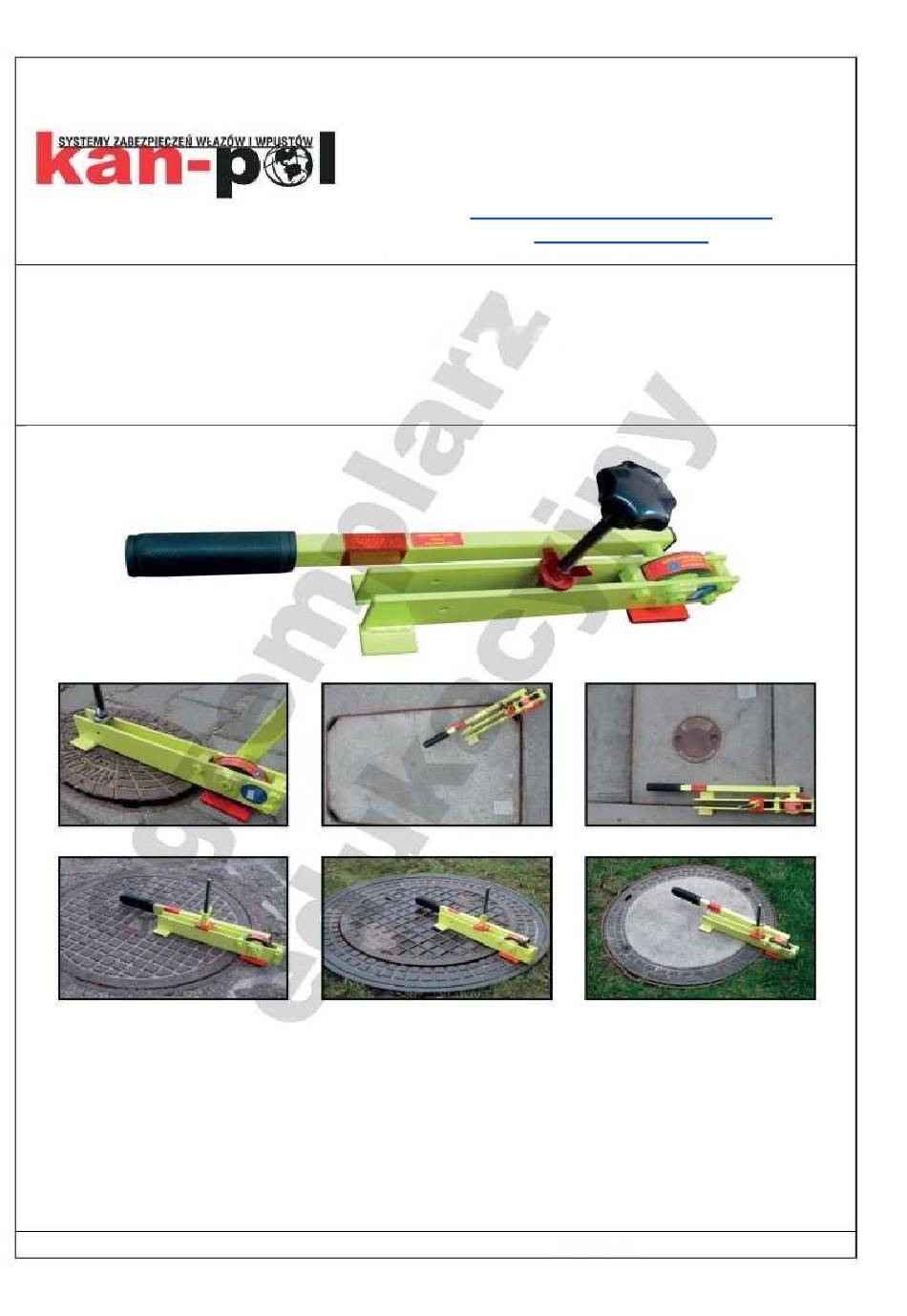

- Page 1 Manufacturer: KAN-POL P.P.H.U. Al. Spółdzielczości Pracy 36C 20-147 Lublin phone: 506-181-850; fax: 81 441 58 66 www.zabezpieczeniawlazow.pl info@kanpol.com OPERATING MANUAL SKORPION® Lever WS-016 type Rev. 1 March, 2017...
-
Page 2: Table Of Contents
SKORPION® Lever WS-016 type Operating Manual (Rev. 1) TABLE OF CONTENTS 1. Introduction ............................ 3 2. Subject of documentation ......................4 3. Intended use ..........................5 4. General technical data ........................7 5. Safety recommendations ....................... 7 6. Responsibilities of the user ......................8 7. -
Page 3: Introduction
Operating Manual (Rev. 1) SKORPION® Lever WS-016 type 1. Introduction The primary purpose of this manual is to describe the principles of safe and proper operation of the SKORPION® Lever WS-016 type. Photo No. 1 – SKORPION® Lever WS-016 type (general view) General spatial view (top) General spatial view (bottom) -
Page 4: Subject Of Documentation
SKORPION® Lever WS-016 type Operating Manual (Rev. 1) 2. Subject of documentation The SKORPION® Lever is the subject of this Operating Manual. It is marked with the nameplate as follows – hereinafter referred to as the device or lever. The individual unit number is marked on the lever construction and given in the warranty card. Integral equipment of the SKORPION®... - Page 5 SKORPION® Lever WS-016 type Operating Manual (Rev. 1) 15. Maintenance/lubrication Regular maintenance: • it is necessary to remove any contamination of the lever structure and hook on an ongoing basis using the wiping method, • do not use acidic or alkaline liquids for wet wiping (the permissible pH of liquid solution is between 6 and 8.5).
- Page 6 SKORPION® Lever WS-016 type Operating Manual (Rev. 1) Repairs – spare parts For detailed information please contact the manufacturer, giving the model number of your lever. 14. Safety information measures • Ensure that this manual is available at the place where the unit is operated, •...
-
Page 7: Intended Use
Operating Manual (Rev. 1) SKORPION® Lever WS-016 type 3. Intended use SKORPION® Lever WS-016 type is designed for releasing stuck, caked, sucked in, rusted, jammed and frozen covers: • sewer manholes, • telecommunication manholes, • hydrant boxes, • storm drain grates. The scope of device use ends with breaking/removing the blockage (resulting from reasons as above). - Page 8 SKORPION® Lever WS-016 type Operating Manual (Rev. 1) • The position of hook [1] in the device design should be within range [2] as shown in the photo below. As far as possible, the position of hook must be as close as possible to the eccentric mechanism [3].
- Page 9 SKORPION® Lever WS-016 type Operating Manual (Rev. 1) 13. Inspection of the device 13.1. Initial review After reading and understanding this manual, the technical service employee responsible for commissioning the device at the user’s premises is required to: • verify the delivery and structural integrity, •...
- Page 10 SKORPION® Lever WS-016 type Operating Manual (Rev. 1) 12. Operation After cleaning the cover hole, the appropriate type of hook is inserted into the cover and the locking setting of hook is checked. Insert the hook into the lever structure (through the gap between arms) and position the support feet (the foot under the...
-
Page 11: General Technical Data
SKORPION® Lever WS-016 type Operating Manual (Rev. 1) 4. General technical data Technical data Value Units SKORPION® Lever Load capacity Weight approx. 3,2 External dimensions (assembled): - height - length - width Handle (length of rubber protector) Material structural steel —... -
Page 12: Responsibilities Of The User
Operating Manual (Rev. 1) SKORPION® Lever WS-016 type 6. Responsibilities of the user The user is obliged to allow only personnel trained in the current regulations concerning safety and hygiene at work, as well as familiarized or trained in operating the lever. Knowledge of the safety and operating regulations must be verified at regular intervals in accordance with the applicable regulations. -
Page 13: Transportation And Storage
SKORPION® Lever WS-016 type Operating Manual (Rev. 1) 10. Transportation and storage The lever is delivered assembled, in the folded position. It is protected by bubble wrap film or in the form of a plastic bag. The weight of device allows it to be carried by one person. It can be stored at temperatures of -20°C –...
