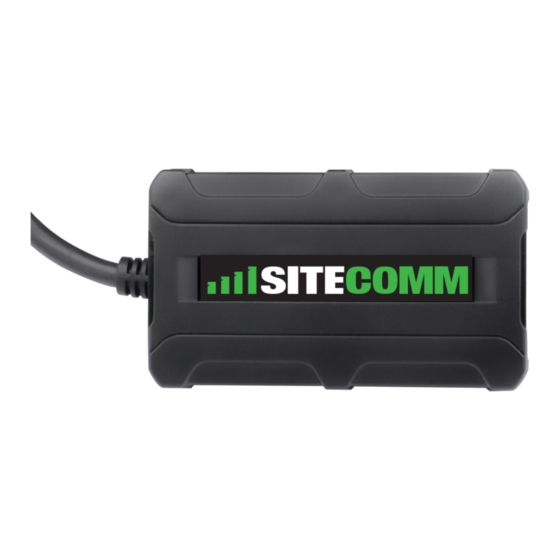

Model: SC-4GWLPG PSTN 3G/4G Router
Thank you for your purchase of the SC-4GWLPG Router, this device has been designed by Sitecomm
to be used as a replacement for copper PSTN lines. Please read instructions below to correctly
setup the router for this function, you will need a PC with an Ethernet port.
1. Connect unit to power NOTE:
2. Connect to unit via the LAN port to the PC's Ethernet port, using your Internet browser enter
the following address in the top address bar 10.10.10.254
3. Once connected to the router enter the Username: admin and Password: admin to get into
the configuration of the router, once logged in you should see image below.
Basic instructions for use as a PSTN Dialer
The unit only accepts 12 volts DC center pin positive +
support@sitecomm.com.au
Advertisement
Table of Contents
Summary of Contents for SITECOMM SC-4GWLPG

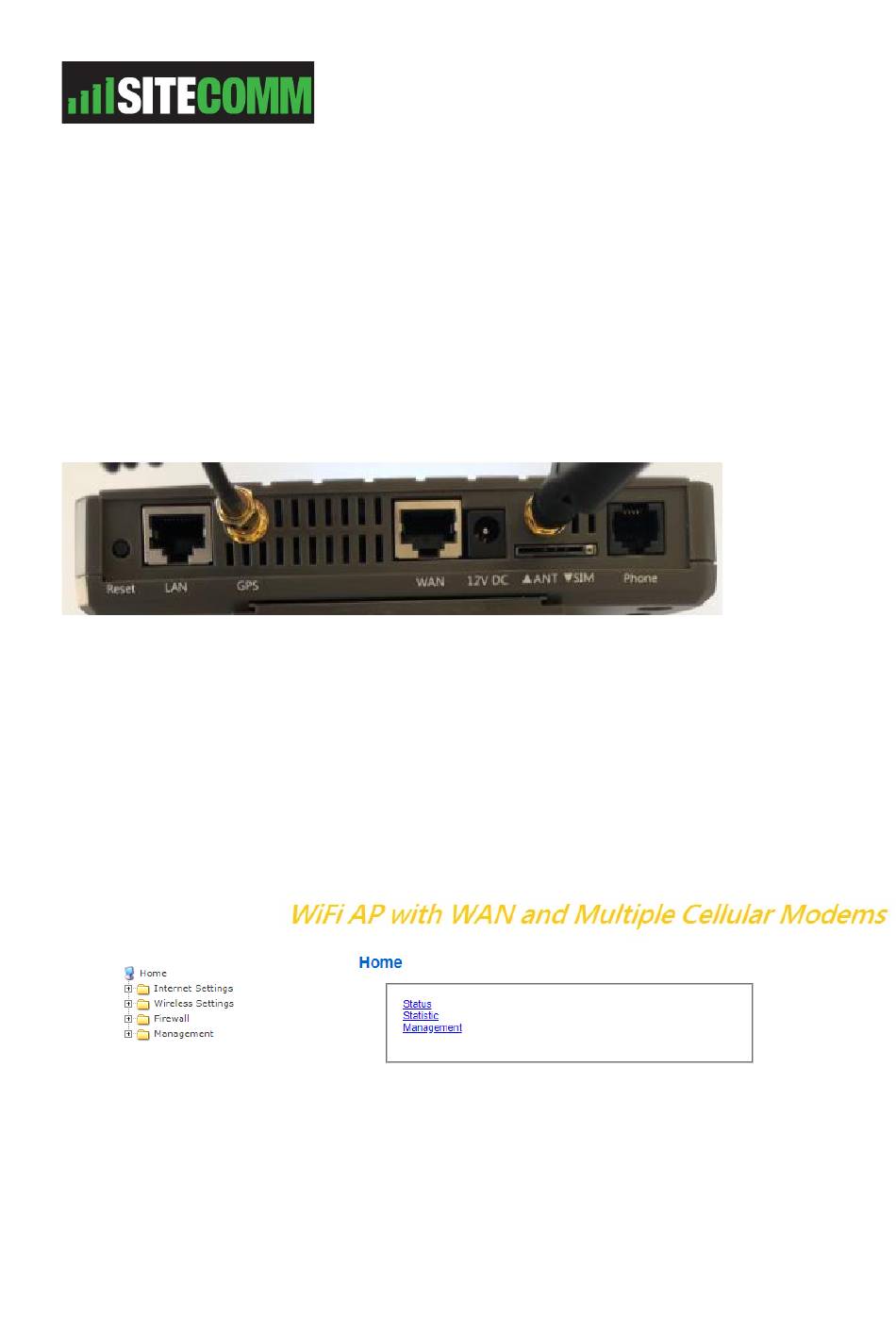

- Page 1 Basic instructions for use as a PSTN Dialer Thank you for your purchase of the SC-4GWLPG Router, this device has been designed by Sitecomm to be used as a replacement for copper PSTN lines. Please read instructions below to correctly setup the router for this function, you will need a PC with an Ethernet port.
- Page 2 4. Follow these steps, there is only one setting that need to be correct for the Router/dialler to function correctly. 5. Click on (Internet Settings) 6. Click on (WAN) 7. This is the most important step you will need to enter the APN for the sim card you plan to use in the device, they are all different so please ask if you are unsure, in this example we are going to use Telstra.
