Summary of Contents for Stoel CV SOURCE

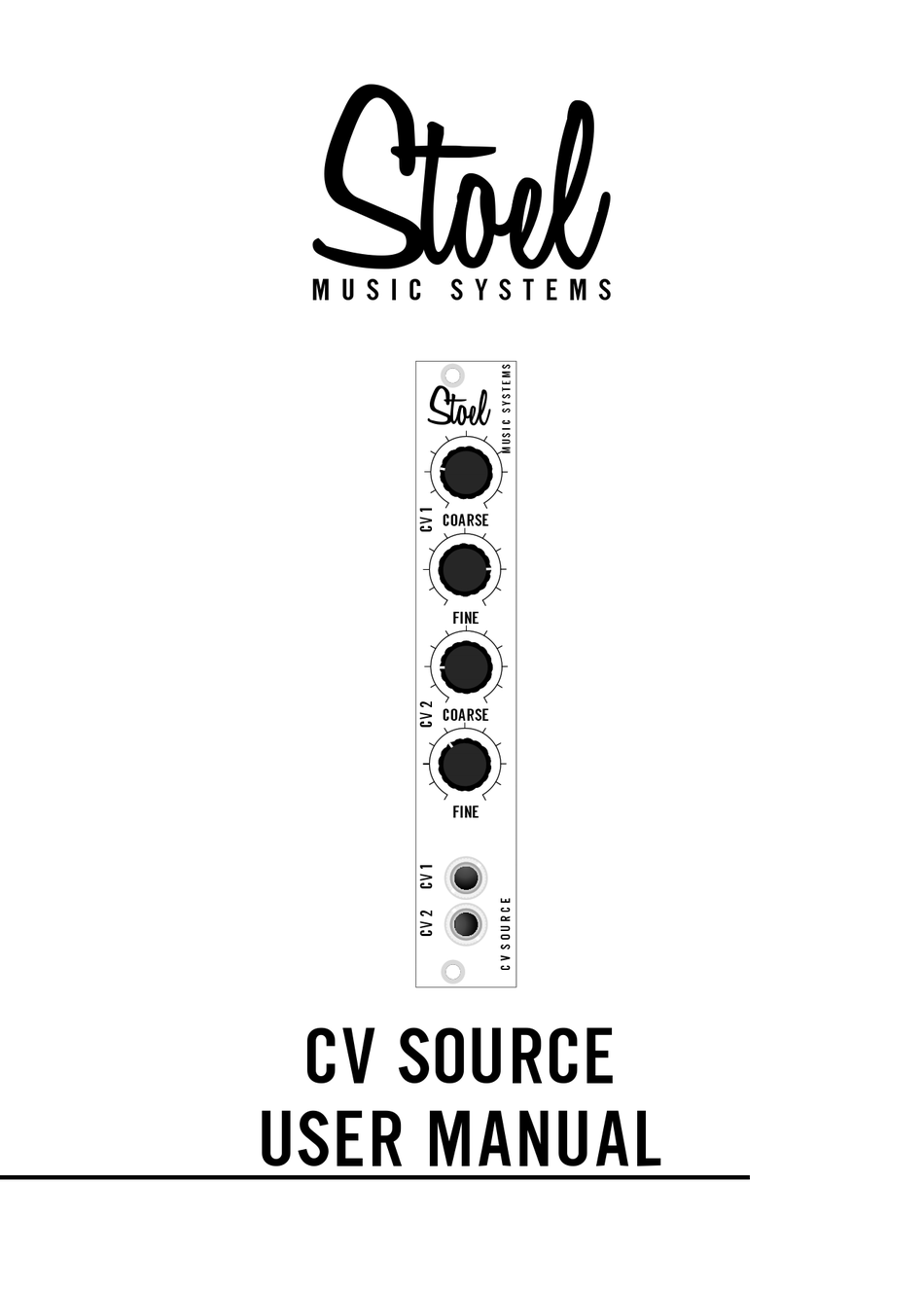

- Page 1 M U S I C S Y S T E M S toel COARSE FINE COARSE FINE CV SOURCE USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Warranty Information Limited Warranty Installation Requirements Front Panel Overview Front Panel Overview Operation Application Basic Operation Example Configurations Expanding Modulation Sources Controlling Multiple Sources toel M U S I C S Y S T E M S... -
Page 3: Warranty Information
Warranty Information Limited Warranty Stoel Music Systems warrants that each of its products will be free of manufacturing and assembly defects for a period of (1) one year from the purchase date by the original owner. All warranty claims require proof of purchase. -
Page 4: Installation
Installation Before installation: UNPLUG EURORACK CASE!! Connect the 10-pin side of the power cable to the module with the red stripe as indicated. Connect the 16-pin side of the power cable to the bus board with the red stripe facing down, as shown. Check to verify the location of the red strip on your bus board. -
Page 5: Requirements
Requirements HP Required HP Required 4 HP Mounting Depth 21mm +12 Volt Current Draw +12 Volt Current Draw -12 Volt Current Draw -12 Volt Current Draw +5 Volt Current Draw +5 Volt Current Draw 5V Requirement 5V Requirement Mounting Screws Required Mounting Screws Required Power Cable Power Cable... -
Page 6: Front Panel Overview
Front Panel Overview toel COARSE FINE COARSE FINE toel M U S I C S Y S T E M S... -
Page 7: Front Panel Overview
Front Panel Overview (1) The COARSE knob varies the control voltage (CV) from 0 to +12 volts. Each COARSE knob corresponds to the CV out. In terms of pitch on a 1V/octave scale, the coarse control spans over five octaves. (2) The FINE knob adjusts the control voltage with a range of +/- 0.5 volts. -
Page 8: Operation
If the user desires that each voice tracks one another, the CV Source can help. The CV OUT from the CV Source can be patched into a multiple, so the CV is now available to various modules. In order to control the filter frequency simultaneously with a single knob, patch the CV into the CV frequency input. -
Page 9: Example Configurations
If a user desires to control multiple modulation sources simultaneously, the CV Source can act as a master control. Patch the output of the CV Source to a multiple. Then patch into each modulation control. Be sure any additional modulation source is matched between each module to ensure consistent tracking. - Page 10 toel M U S I C S Y S T E M S Just make music...
