Package Contents
Before installing QX310 Router, please verify the kit contents as
following.

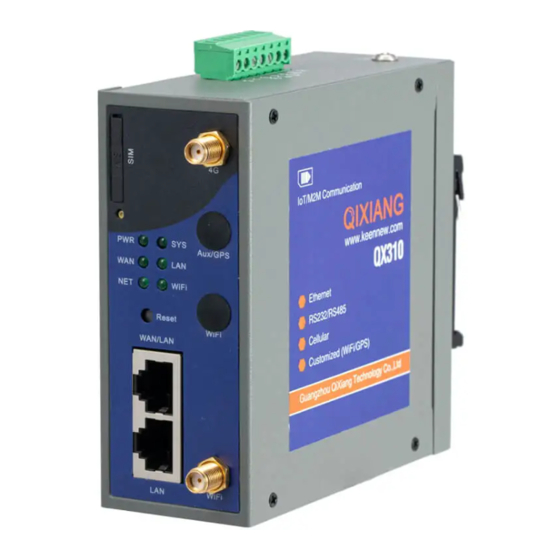

1 x QX310 Industrial Cellular Router Remote Gateway
1 x power adapter(12V DC/1A, EU/US/UK/AU plug optional)
1 x Quick Start Guide
1 x Ethernet Cable
*If any of the above items is missing or damaged, please contact your sales representative.
Environmental Requirements
Input voltage: 7.5V-32V(standard DC12V/1A)
Operating temperature: -30 to +70 °C
Storage temperature: -40 to 85°C
Relative humidity: < 95% (no condensation)
1
Installation and Configuration Quick Guide
Qixiang Technology, Contact Us for purchasing
Industrial Cellular Router Din Rail Mount
(2 Eth + 1 SIM + 1 RS232/RS485)
1 x SMA Cellular antenna (default: magnet/optional: stubby)
1 x SMA Wi-Fi antenna (default: magnet/optional: stubby)
1 x 35mm DIN rail mounting kit
1 x RS232/485 serial cable
Website: www.keennew.com
Email: sales@keennew.com
Whatsapp: +86 13249165907
QX310
Advertisement
Table of Contents
Summary of Contents for Qixiang Technology QX310
- Page 1 Industrial Cellular Router Din Rail Mount (2 Eth + 1 SIM + 1 RS232/RS485) Package Contents Before installing QX310 Router, please verify the kit contents as following. 1 x QX310 Industrial Cellular Router Remote Gateway 1 x SMA Cellular antenna (default: magnet/optional: stubby)
-
Page 2: Hardware Introduction
Data Output After powered on the router, press and hold the RST button for 10 seconds, and release the button to return the router to factory defaults. Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907... -
Page 3: Hardware Installation
3) To insert SIM card, press the card with finger until your hear a click and 3. Mount the Router then push back the sim card slot Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907... -
Page 4: Power Supply
IP address manually within the same subnet of the router. Please refer to the steps below. Here take Windows 10 as example, and the configuration for windows system is similar. Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907... - Page 5 2. Click Properties in the window of Local Area Connection (Ethernet) Status. 4. Two ways for configuring the IP address of PC. 1) Obtain an IP address automatically: Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907...
-
Page 6: Router Configuration
2) From your web browser, type the IP address of the router into the address bar and press enter. The default IP address of the router is 192.168.1.1, though the actual address may vary. Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907... - Page 7 Click Basic Network > Mobile Network, choose “DHCP client” as the Protocol, don’t change other default settings, click SAVE & APPLY button. 4) After logging in, the home page of the QX310 Router’s web interface is displayed, for example. 2) PPP dial-up When you don’t want to dial up with DHCP, this router also provide PPP...
- Page 8 3) Fill in WiFi password in “WPA passphrase”, then click SUBMIT button 3. Configure the WiFi Connection Besides cellular and wired connection, you can choose WiFi Client mode to connect this router to internet with following steps: Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907...
- Page 9 2) Wireless Access Point To log in to the router management page, please refer to Page 6 “Router 5) Double check WiFi connection status: System Status > Mobile Configuration” Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907...
- Page 10 Access Point, choose your ESSID and key in password, then enjoy the high speed, stability, flexibility network. Note: When this router is using WiFi Client Mode to connect internet, Wireless Access Point is not workable. Website: www.keennew.com Qixiang Technology, Contact Us for purchasing Email: sales@keennew.com Whatsapp: +86 13249165907...
- Page 11 WhatsApp: +8613249165907 GuangZhou QiXiang Technology Co.,Ltd is a professional provider of machine-to-machine (M2M) and Internet of Things (IoT) connectivity products and services. Qi Xiang has been focusing on providing Industrial Cellular Router, Cellular Serial Modem, Network Print Server, Serial Device Server (DTU), Android Industrial Motherboard, Embedded Router Board, M2M Cloud Platform, etc.
