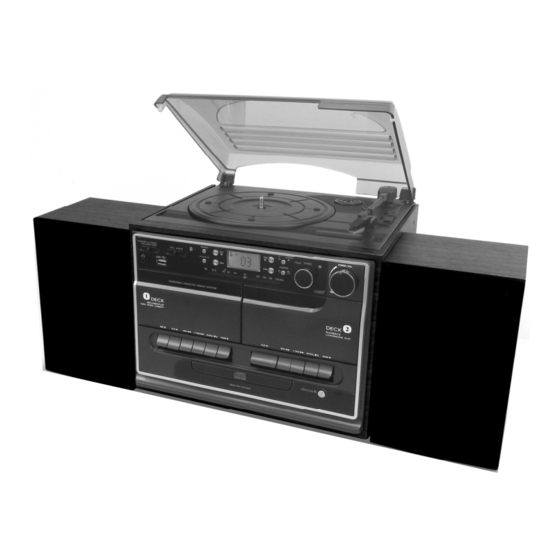

Mini hifi system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mini Hifi System
TCD-389WE-BT
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCD-389WE-BT and is the answer not in the manual?

Questions and answers

Related Manuals for Honwell TCD-389WE-BT

Summary of Contents for Honwell TCD-389WE-BT

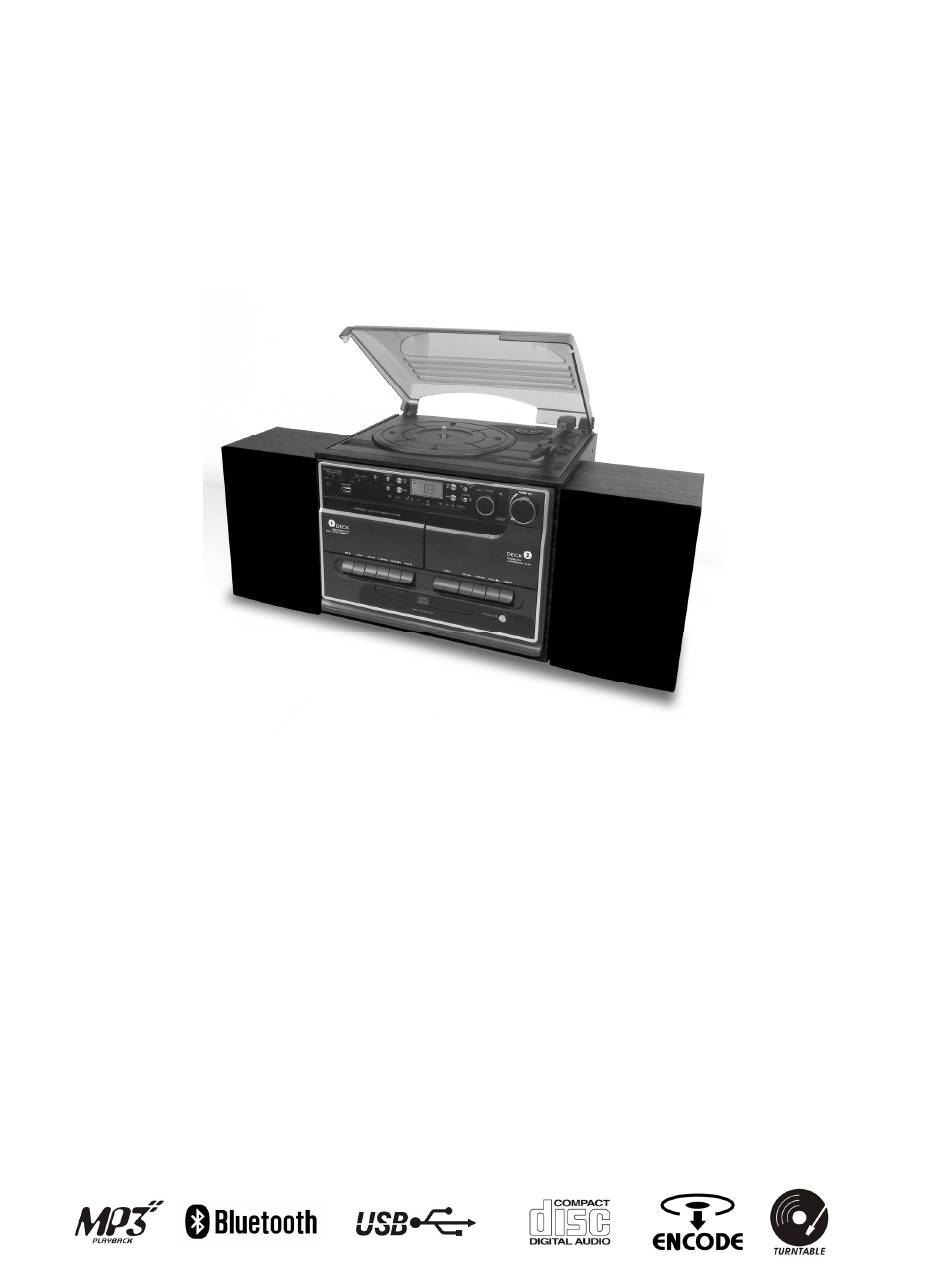

  • Page 1 Mini Hifi System TCD-389WE-BT INSTRUCTION MANUAL...
  • Page 2 WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE CAUTION MARKING AND RATING LABEL ARE LOCATED AT THE BOTTOM OF THE UNIT IMPORTANT SAFETY INSTRUCTIONS...
  • Page 3 battery power, or other sources, refer to the operating instruction. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

  • Page 4: Protect Your Furniture

    o Stop operation immediately if any liquid or solid object should fall into the cabinet. o Do not touch the lens or poke at it. If you d o, you may damage the lens and the player may not operate properly. o Do not put anything in the safety slot.

  • Page 5: Battery Installation

    BATTERY INSTALLATION The battery compartment is located on the back of the remote control. Remove the battery compartment door by pressing in on the tab and lifting it off. Insert two (2) AAA size batteries (not included) into the battery compartment following the polarity markings inside the battery compartment.

  • Page 6: Location Of Controls

    LOCATION OF CONTROLS 1) Dust cover 2) LCD display 3) Record button 4) Source button 5) Bluetooth indicator 6) Function selector 7) 3.5mm headphone jack 8) USB socket 9) Cassette deck (1) door 10) FM stereo selector 11) CD door open button 12) MP3 folder up button 13) Skip down button...
  • Page 7 Remote control transmitter Battery installation (battery not provided) The infra-red transmitter requires 2 pc AAA size battery for operation Button description (R1) OPEN/ CLOSE Press to open or close the CD door (R2) PLAY/PAUSE In USB mode, press once to start playback. Press again to enter Pause mode.

  • Page 8: Operation

    Connection Insert the DC plug (36) to the DC jack (34) of the unit, then connect the AC/DC adaptor (35) to AC outlet. Turn the power on/off button (19) clockwise until hear a “ click “ sound. Switch the function selector (6) to “ Tuner “ function. If the LCD display (2) light up with blue backlight, it’s mean the power supply is normal.
  • Page 9  Repeat/intro/random mode Press the PLAY MODE button (R4) before or during playback, a single track, single folder (mp3 only) or all the tracks can be played in difference mode as follow:- For CD (1) repeat 1 (2) repeat all track (3) intro (4) random (5) off mode...
  • Page 10 Set Function selector (6) at USB position and then press source button (4) to select “ USB” mode. Plug-in the USB plug with the face up & make sure it going into completely. Insert straight without bending. Connecting the USB upside down or backwards could damage the audio ...
  • Page 11 Playback  Select “Tape” function (6).  Put in the cassette tape. Press Play key to active playback   Adjust the volume control (19) to the desire level.  Use pause key when you want to stop playback temporarily. ...
  • Page 12 Encoding of CD, Phono or cassette tape into MP3 file The system is able to encode CD, record (from phono) and cassette deck file (from tape) to MP3 format and recording at memory media with USB connecting port. Before encoding, make sure one of these is connected to the relevant port/slot and has enough free memory space A) CD encoding I) recording 1 track...
  • Page 13 D) Encoding bitrate (by remote handset) You can select the desired bitrate during encoding, the higher bit rate will generate better sound quality and occupy more space of memory. The selectable range is from 32 / 64 /96 /128 / 192 / 256 kbps respectively Set in “...

  • Page 14: Line Out Connection

    Line out connection You can connect the system to your whole hi-fi system by connecting the line out socket (32) to the auxiliary input socket with a RCA cable (not included). SPECIFICATIONS 1.2A CARE AND MAINTENANCE Avoid operating your unit under direct sunlight or in hot, humid or dusty places.  Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors.  Unplug the unit from the electrical power outlet immediately in case of malfunction CLEANING THE UNIT  ...
